Office Sound Masking and BGM System with AtlasIED Pendant Mount Speakers and Controller Amplifier for up to 6000SF

By AtlasIED

Office Sound Masking and BGM System with AtlasIED Pendant Mount Speakers and Controller Amplifier for up to 6000SF

Name: Office Sound Masking and BGM System with AtlasIED Pendant Mount Speakers and Controller Amplifier for up to 6000SF
Brand: AtlasIED
SKU: OASS-20M1000RWASPMG2240

Write a Review

Part #:

OASS-20M1000RWASPMG2240

Model #:

OASS-20M1000RWASPMG2240

Current Stock:

Availability: Usually arrives in 5-9 business days.

Quantity:

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Perfect for high ceiling and open office floor plan applications, this commercial speech privacy sound masking system with 20 Atlas Sound M1000R-W speakers reduces noise distractions in your environment by making speech less intelligible and is also capable of delivering paging and background audio.

Description

Inside the Design

Private conversations are frequently held inside of office walls. Lack of speech privacy can result in compliance and legal concerns when workers are discussing private material such as company information or financial records. Protect private conversations and reduce noise distractions in your environment by making speech less intelligible with this commercial sound masking speaker system. Sound masking can help companies protect confidential customer, company, and employee information by adding a low level, unobtrusive background sound to the environment. This system is perfect for high ceiling and open office floor plan applications in contemporary open office environments, corporate businesses offices, and more.

Sound System Features:

Up to 2 zones with approximately 6,000 sq ft of coverage
Two separate analog masking generators
Analog white and pink noise generators
Illuminated privacy sign controller
Approved for use in air handling (plenum) spaces
Sleek appearance designed for open ceiling areas where speakers may be visible

Open Architecture Ceiling Sound Masking System for up to 6,000 SF

This Pro Acoustics designed 2-zone commercial sound masking system includes 20 Atlas Sound M1000R-W hanging indirect field sound masking speakers, a two-zone compact sound masking controller amplifier with onboard DSP, wall attenuators, and the plenum-rated cables necessary for installation. This system includes everything you need to make your workplace more acoustically comfortable and secure.

Features

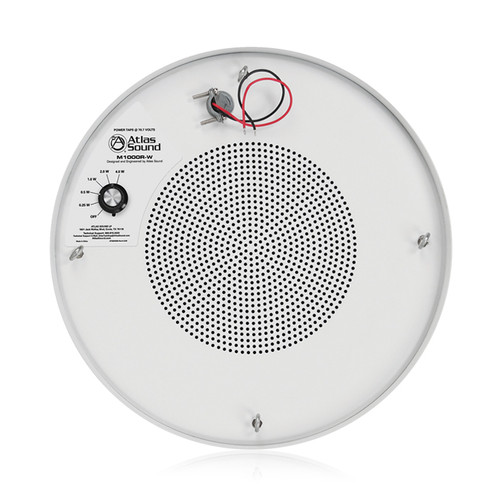

Atlas Sound M1000R-W 8" Sound Masking Speakers:

Sleek, round appearance designed for mounting in open plenum areas where speakers may be visible
Balanced enclosure design to ensure level orientation when suspended (78" (2m) suspension chain included)
Fully assembled package includes 8" transducer with high-quality line matching transformer
.25 to 4 watt (@70.7V) power selection (plus OFF) via external switch
382in3 (6.26L) enclosure volume for accurate low-frequency masking spectrum reproduction
Strain relief to facilitate input termination
Tested and approved to UL2043 standard for use in air handling (plenum) spaces
White finish to blend in with almost any ceiling decor
Safety Listed to UL 1480 & UL 2043

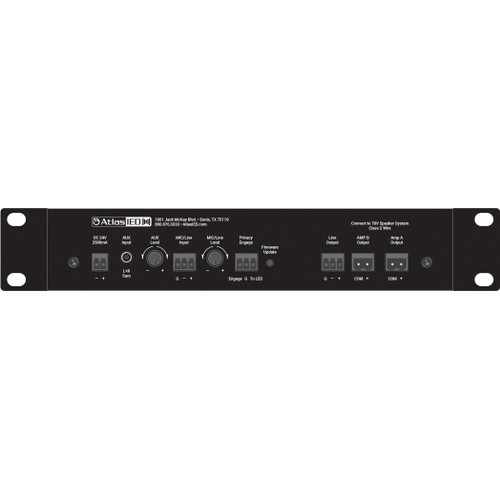

Atlas Sound ASP-MG2240 Two-Zone Compact Sound Masking Controller Amplifier with Onboard DSP:

Two-channels of internal amplification (20-watts per channel @ 70.7V)
Two separate analog masking generators
Analog white & pink noise generators
Auxiliary input for BGM with EQ & limiter
Mic/line input for paging with EQ & limiter
Speech-enhanced privacy mode (adjustable +/- 12db)
Assignable balanced line output
Internal DSP parameters EQ, HI & LO pass filters, limiter with intuitive software control
Push here diagnostic (PHD) automatic diagnostic system test
Single zone sound masking coverage up to 7000 sq ft

Atlas Sound AT35D Decora Plate Mounted Attenuators:

Attractive alternative to commercial series attenuators
Mounts into most 1-gang E.O. boxes
UL listed
White and ivory plastic plates with matching skirted knobs in decora style

Atlas Sound ASP-MG2240S Enhanced Privacy LED Sign:

Clear illumination graphics
Energy efficient
Long lasting LED design
Wall mount or fits on a single gang electrical box
Multi-orientation mounting
Low voltage design 10V DC

DOCUMENTS

System Includes

(20) Atlas Sound M1000R-W 8" White Sound Masking Speakers
(1) Atlas Sound ASP-MG2240 Two-Zone Compact Sound Masking Controller Amplifier with Onboard DSP
(2) Atlas Sound AT35D 35W Decora Plate Mounted Attenuators
(1) Atlas Sound ASP-MG2240S Enhanced Privacy LED Sign
(1000') West Penn 224 18/2 AWG Speaker Wire
