Background music can support your business by creating the ambiance you need to keep customers shopping. This grocery store audio system is designed specifically for open-ceiling applications that require paging and BGM. With two volume controls and a paging microphone, this sound system is well suited for supermarkets, grocery stores, food marts, home goods stores, or any application with open-ceiling floor plans.
This supermarket music and paging system comes complete with sixteen SoundTube RS42-EZ pendant speakers, a TOA A-824 240W mixer amplifier, a TOA PM-660U desktop push-to-talk (PTT) paging microphone, two Pure Resonance Audio VC100W 100W Decora wall volume controls for two zones, and the speaker wire needed for installation. The VC100W volume controls are compatible with 25V, 70V, and 100V distributed audio systems and provide convenient local volume adjustment for each zone.

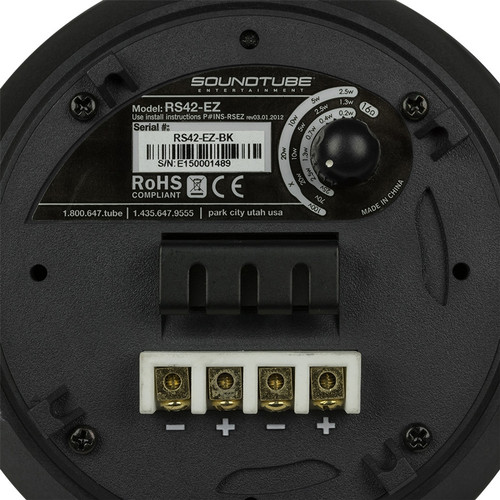

The SoundTube RS42-EZ 4" open-ceiling speaker features a 4" (102 mm) coaxial driver with BroadBeam Ring technology for consistently smooth high-frequency directivity. It includes hanging hardware with galvanized steel cables and a hanging bracket for fast, easy, and secure installation. The unit may be hung or mounted directly to conduit using the locking cover plate. The enclosure is constructed of injection-molded ABS with glass fiber reinforcement for lasting durability in indoor or outdoor applications. It also features 16 ohm impedance for easy daisy-chaining in low-voltage systems, an aluminum grille with a protective powder-coated finish, and a built-in thermal fuse. The ceramic input terminal accepts up to 10-gauge plenum-rated signal wire. The RS42-EZ is suitable for voice alarm applications subject to EU regulations EN60849 and BS5839-8 and is UL 1480 UEAY and UL 2239 listed.

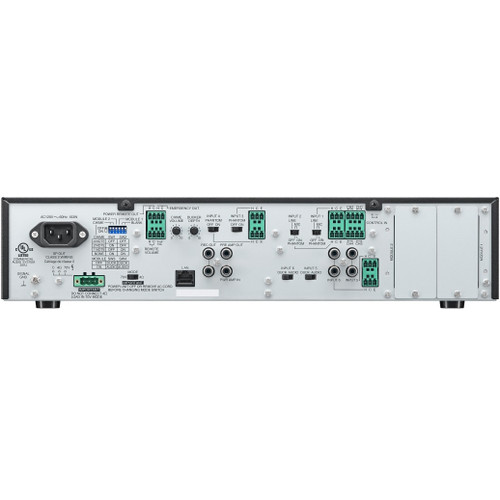

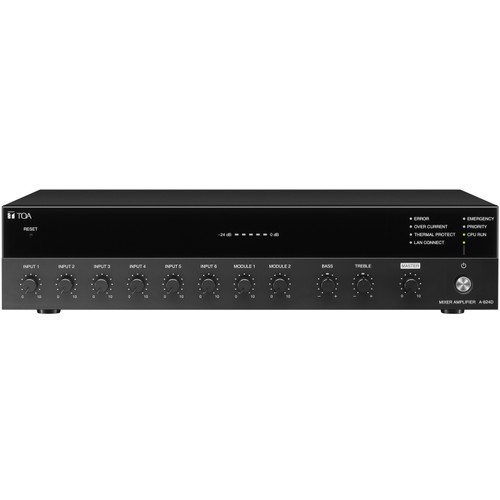

The TOA A-824D is a 240W digital mixer amplifier designed for flexible background music, foreground music, paging, and sound masking applications. It provides up to eight inputs and includes browser-based control and monitoring for convenient system adjustment and troubleshooting. Onboard DSP, an MOH output, two available 900 Series module slots, and TOA's digital processing capabilities provide flexible audio management for commercial sound applications.
The TOA PM-660U desktop paging microphone is designed for paging calls and general announcements. It features a large push-to-talk switch with a locking lever for convenient operation, low handling noise, and a balanced 600 ohm output. The moving-coil microphone uses a unidirectional pickup pattern and provides a 100 Hz-10 kHz frequency response. An interlocked remote control switch can be used for amplifier power on/off operation or chime activation. The PM-660U includes a 2.5 m (8.2 ft) 4-conductor cable without a plug and is housed in a durable gray ABS enclosure.

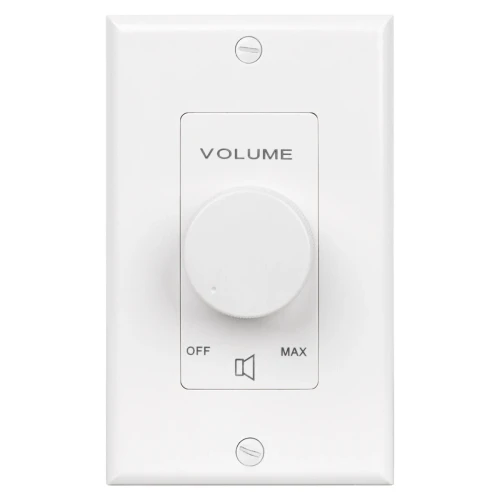

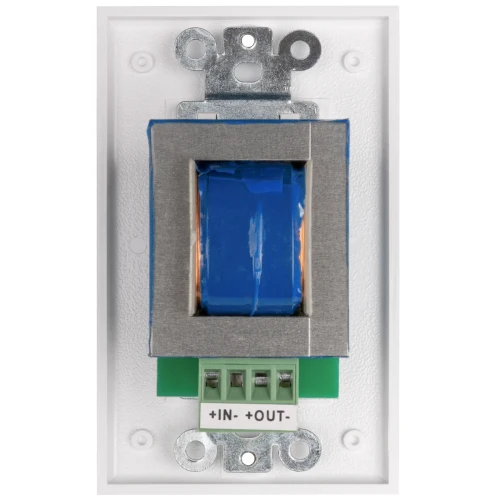

The Pure Resonance Audio VC100W is a 100W Decora wall-mounted volume control designed for 25V, 70V, and 100V distributed audio systems. It features a white single-gang Decora wall plate with a matching rotary knob and 30 dB of total attenuation for smooth local volume adjustment. The VC100W supports single or multiple speaker lines, provides a 100 Hz-20 kHz frequency response, and uses a detachable Phoenix-style Euroblock terminal with in-out throughputs supporting up to 14-gauge speaker wire. It requires a minimum installation depth of 1.85" and includes mounting screws and the detachable terminal for installation.
Usually arrives in 5-9 business days.
