SoundTube RS42-EZ 4" Coaxial Open-Ceiling Pendant Speaker - White

Part #:
RS42-EZ-WH
Model #:
RS42-EZ
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The SoundTube RS42-EZ open ceiling speaker has one 4" coaxial driver with BroadBeam Ring technology for consistently smooth high-frequency directivity. It includes hanging hardware with galvanized steel cables and hanging bracket for fast, easy and secure installation.

Description

The SoundTube RS42-EZ open ceiling speaker has one 4 inch (102 mm) coaxial driver with BroadBeam Ring technology for consistently smooth high-frequency directivity. It includes hanging hardware with galvanized steel cables and hanging bracket for fast, easy and secure installation. The unit may be hung or mounted direct-to-conduit via locking cover plate. The enclosure is constructed of injection molded ABS with glass fiber reinforcement for lasting durability in indoor or outdoor applications. It also features 16 ohm impedance for easy daisy chaining in low voltage systems and an aluminum grille with a protective powder coated finish. It has a built-in thermal fuse. The ceramic input terminal accepts up to 10 gauge plenum rated signal wire and includes thermal fuse. Suitable for use in voice alarm applications subject to EU regulations EN60849 and BS5839-8. The unit ships in eco-friendly, recyclable packaging. It is UL 1480 UEAY and UL 2239 listed. With the speaker comes hanging hardware, weather plug, cover plate, AC-RSEZ-HH-10, and AC-RSEZ-HH-10.

Features

  • One 4 inch (102 mm) coaxial driver with BroadBeam Ring technology for consistently smooth high-frequency directivity
  • Weatherized components for indoor and outdoor applications
  • Includes hanging hardware with galvanized steel cables and hanging bracket for fast, easy and secure installation
  • Unit may be hung or mounted direct-to-conduit via locking cover plate
  • Enclosure constructed of injection molded ABS with glass fiber reinforcement for lasting durability in indoor or outdoor applications
  • 16 ohm impedance for easy daisy chaining in low voltage systems
  • Aluminum grille with protective powder coated finish
  • Built-in thermal fuse
  • Unit ships in eco-friendly, recyclable packaging
  • UL 1480 UEAY planned, UL 2239 approved
  • High-quality black or white paint finish, speaker is paintable
  • Included accessories: hanging hardware, weather plug, cover plate
  • Also available in black

Specifications

System Type 4" Coax, open-ceiling, ported (20W transformer for 25/70.7/100V or voice coil direct)
Impedance (Nominal) 16 ohm
Sensitivity dB @ 2.83 V/1 m 84.0 dB
Sensitivity dB @ 1 W/1 m 87.0 dB
Frequency Response (-3 dB) 140 Hz - 22 kHz
Frequency Response (-10 dB) 100 Hz - 22 kHz
Max. Program Power 40W
Max. Continuous Power RMS 20W
Max. Power SPL @ 1 m 100.0 dB
Tap Selector 6 Position rotary switch with transformer bypass
Transducer - Low Frequency Driver 4" (102 mm) Polypropylene cone, butyl rubber surround
Transducer- High Frequency Driver 0.75" (19 mm) Silk dome with Beam Ring
Low Frequency Voice Coil 1" (25.4 mm)
Crossover Frequency 4.5 kHz
Network Type: Low Pass 12dB per octave, 2nd order
Network Type: High Pass 6dB per octave, 1st order
Enclosure Material Injection molded ABS, glass fiber reinforced
Grille Powder coated aluminum

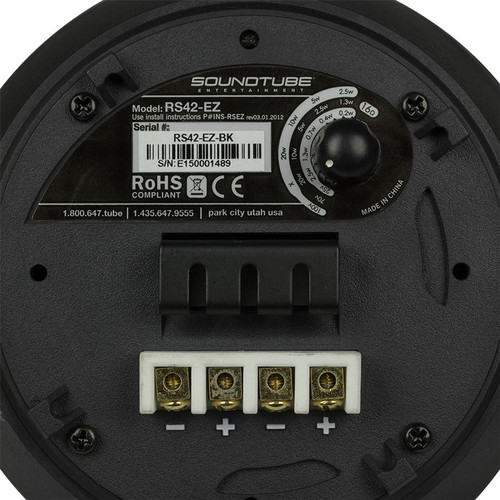

Inputs 4 position ceramic terminal connector
Dimensions (Dia x H) 7.46" (189.5 mm) x 7.86" (199.6 mm)
Weight 3.9 lbs (1.8 kg)
Shipping Weight 6 lbs (2.7 kg)
