Inside the Design
This outdoor commercial sound system combines two Pure Resonance Audio S6W 6.5" 70V indoor/outdoor surface-mount speakers with the RMA240BT 240W Bluetooth mixer amplifier and UC1S-WTX1 wireless microphone system to deliver clear background music, announcements, and voice reinforcement across outdoor and semi-outdoor commercial spaces. The S6W speakers feature IP65-rated, UV-protected enclosures designed for reliable performance in indoor and partially exposed outdoor environments, while the RMA240BT provides flexible audio input options, Bluetooth connectivity, and emergency priority capabilities. The UC1S dynamic vocal microphone pairs with the WTX1 plug-on XLR wireless system to provide convenient wireless microphone operation for presentations, announcements, and general voice applications. With 500 feet of 16/2 gauge Aquaseal speaker wire included, this system provides a practical audio solution for patios, courtyards, walkways, hospitality venues, retail exteriors, and other commercial spaces requiring dependable sound coverage.
Sound System Features:
- Two IP65-rated Pure Resonance Audio S6W speakers feature UV-protected ABS enclosures for reliable performance in indoor and partially exposed outdoor environments
- Each S6W speaker features a 6.5" polypropylene cone woofer and 1" silk membrane tweeter for clear, balanced full-range sound with an 80Hz to 18kHz frequency response and 92 dB average SPL
- The RMA240BT 5-channel commercial mixer amplifier delivers 240 watts of power for distributed 70V audio and flexible commercial sound applications
- Built-in Bluetooth connectivity allows convenient wireless music streaming from compatible devices, while multiple inputs support microphones and other audio sources
- The RMA240BT includes a multimedia player with USB and TF card playback, an FM tuner, a remote control, and a forced air-cooling fan for extended operation
- The amplifier's emergency input can override other audio sources to support priority paging and emergency announcements
- The UC1S dynamic vocal microphone features an on/off switch for convenient control during announcements and presentations
- The WTX1 plug-on XLR wireless system adds wireless functionality to the UC1S microphone, providing greater freedom of movement without a direct microphone cable connection to the sound system
- The included 500 feet of 16/2 gauge Aquaseal speaker wire supports installation across outdoor and semi-outdoor commercial areas
About the System Components
Pure Resonance Audio S6W 6.5" 70V Indoor/Outdoor Surface-Mount Speaker
The Pure Resonance Audio S6W is a 2-way 70V surface-mount speaker designed to deliver clear, balanced audio for indoor and outdoor commercial installations. Its IP65-rated, UV-protected ABS enclosure provides weather resistance for partially exposed outdoor areas and durability in demanding indoor environments. The S6W features a 6.5" polypropylene cone woofer and 1" silk membrane tweeter for full-range sound, with an 80Hz to 18kHz frequency response and 92 dB average SPL. Its integrated 70V transformer offers multiple wattage taps for flexible distributed audio installations, while the included mounting bracket allows flexible positioning for optimized sound coverage. The S6W is well-suited for background music, announcements, and general-purpose audio in patios, courtyards, walkways, and commercial spaces.

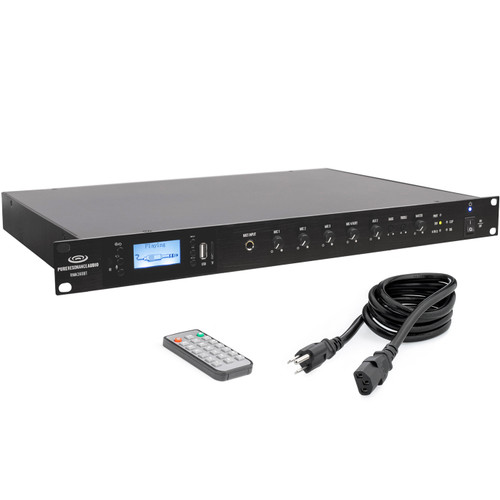

Pure Resonance Audio RMA240BT 240W Rack Mount Bluetooth Mixer Amplifier
The Pure Resonance Audio RMA240BT is a 5-channel commercial rack mount mixer amplifier delivering 240 watts of power in a slim, lightweight design. Built-in Bluetooth provides convenient wireless audio streaming from compatible devices, while multiple input options accommodate microphones, AV equipment, and computer audio. Its multimedia player supports USB thumb drives and TF cards, and a built-in FM tuner provides an additional audio source. The included remote control allows convenient adjustment of audio settings and volume, while the forced air-cooling fan helps accommodate extended operating hours. For emergency applications, the EMC input can be configured to override other audio sources, supporting integration with paging systems, emergency microphones, and fire alarm relay closures.
Due to the possibilities of FM radio interference and the variables involved, it's not recommended to use FM radio as your primary input source.
Pure Resonance Audio UC1S Dynamic Vocal Microphone with On/Off Switch
The Pure Resonance Audio UC1S dynamic vocal microphone provides clear vocal reproduction for announcements, presentations, public address, and general vocal applications. Its integrated on/off switch allows convenient control of microphone operation, making it easy to mute the microphone between uses. Paired with the WTX1 plug-on XLR wireless system, the UC1S provides a wireless microphone solution for presenters and speakers who need to move freely while addressing an audience.

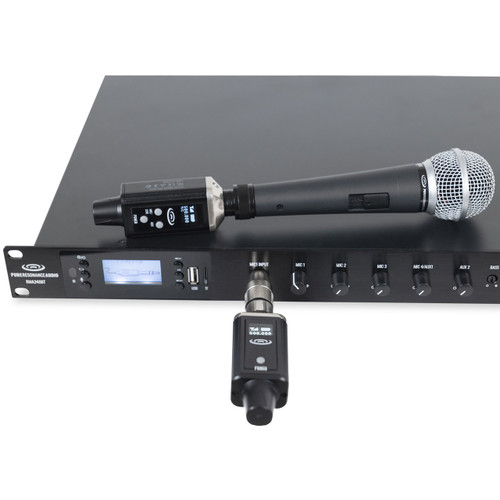

Pure Resonance Audio WTX1 Plug-On XLR Wireless System
The Pure Resonance Audio WTX1 plug-on XLR wireless system adds wireless functionality to compatible microphones with XLR connections. Connected to the UC1S microphone, the WTX1 allows presenters and speakers to move around without a direct microphone cable connection to the sound system. This provides added flexibility for announcements, presentations, and voice reinforcement across commercial spaces. The WTX1 system includes an XLR wireless transmitter, XLR wireless receiver, USB-C power cord, and male XLR to male 1/4" TS and female XLR to male 1/4" TS adapters.
