Inside the Design

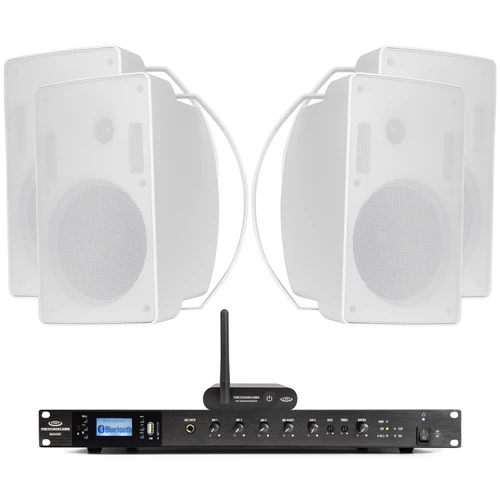

Elevate your outdoor audio with this weather-resistant commercial speaker system designed for reliable background and foreground music in a wide range of commercial environments. The system includes four S6W 6.5" 70V indoor/outdoor surface-mount speakers, providing clear, balanced audio and wide sound dispersion for consistent coverage throughout outdoor and semi-outdoor spaces. Power and signal control are handled by the RMA500BT 500W 5-channel Bluetooth rack mount mixer amplifier, providing powerful Class D amplification, multiple input options, and convenient wireless music streaming. With durable weather-resistant speakers and a powerful commercial mixer amplifier, this system provides a complete audio solution for patios, courtyards, pool areas, walkways, retail exteriors, hospitality venues, fitness facilities, schools, and other commercial spaces.
In the event of an emergency, the RMA500BT's emergency input (EMC In) can be configured to stop all other audio automatically. The emergency input takes priority over all other audio, allowing an integrated emergency voice alarm system to be heard loud and clear. This input works with existing paging systems, emergency paging microphones, and relay closures from fire alarm systems.
Sound System Features:
- The IP65-rated all-weather design protects the S6W speakers against direct contact with water and dust, while the UV-protected ABS enclosure provides durability for demanding outdoor and partially exposed environments
- With 60 watts of continuous power handling, the S6W 6.5" polypropylene cone woofer and 1" silk membrane tweeter produce full-range sound from 80Hz - 18kHz with an average SPL of 92 dB
- The RMA500BT 5-channel, 4 ohm/70 volt Bluetooth commercial rack mount mixer amplifier provides 500 watts of high-performance Class D power
- The RMA500BT features a forced air-cooling fan to accommodate the long working hours of demanding commercial applications
- Use the priority/emergency input to halt other audio and amplify paging or emergency announcements clearly during critical situations
- Built-in Bluetooth provides convenient wireless music streaming from compatible devices for flexible background and foreground audio
About the System Components

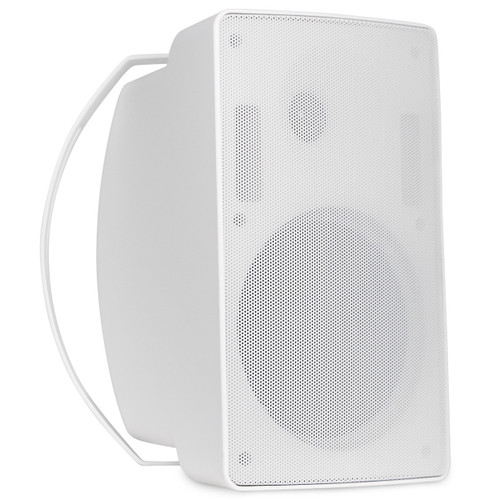

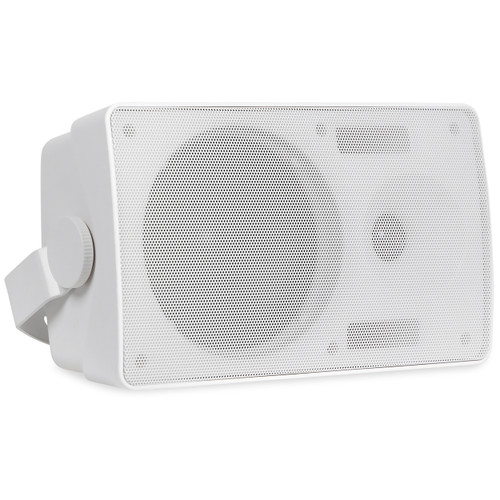

S6W 6.5" 70V WEATHER-RESISTANT SURFACE MOUNT SPEAKER
The Pure Resonance Audio S6W 2-way 70-volt surface mount speaker is designed to provide clear, balanced audio for indoor and outdoor commercial installations. Its IP65 weather-resistant rating, UV-protected ABS enclosure, and durable construction make the S6W well-suited for partially exposed outdoor areas and demanding indoor environments. The speaker features a 6.5" polypropylene cone woofer and 1" silk membrane tweeter that deliver full-range sound with a frequency response of 80Hz - 18kHz and an average SPL of 92 dB. Its built-in 70V transformer provides multiple wattage taps for efficient distributed audio installations, while the articulated mounting bracket allows flexible positioning for optimized coverage. The S6W is ideal for background and foreground music, paging, and general-purpose audio throughout commercial outdoor spaces.

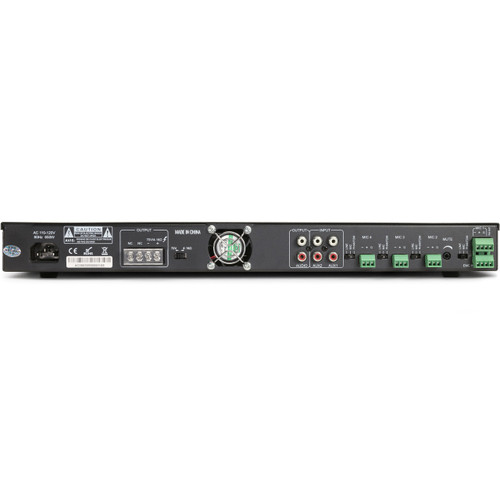

RMA500BT 500W RACK MOUNT BLUETOOTH MIXER AMPLIFIER
The Pure Resonance Audio RMA500BT is a 5-channel 70V commercial rack mount mixer amplifier delivering 500 watts of high-performance Class D power. Its slim, lightweight design includes fast Bluetooth connectivity for convenient wireless audio streaming and a forced air-cooling fan for consistent operation during long working hours. The RMA500BT also features emergency priority capabilities, allowing critical announcements to override other audio sources. The dedicated emergency input (EMC In) can integrate with existing paging systems, emergency microphones, and relay triggers from fire alarm systems, making it a reliable solution for commercial paging and alert applications.
Due to the possibilities of FM radio interference and the variables involved, it's not recommended to use FM radio as your primary input source.
