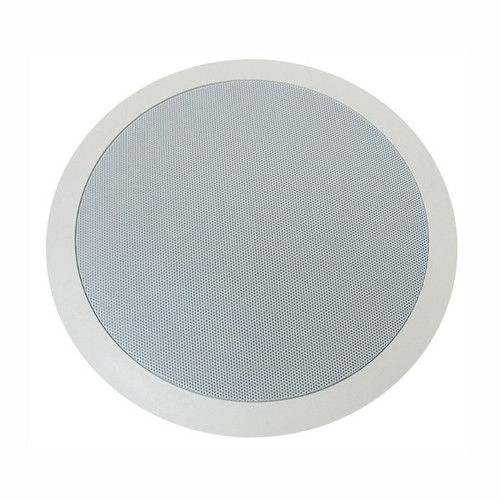

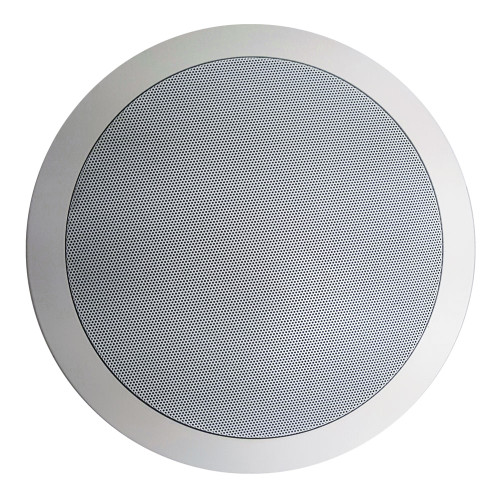

OWI AMP1SGRN1 6.5" Amplified Drop Ceiling Speaker Package (Discontinued)

Description

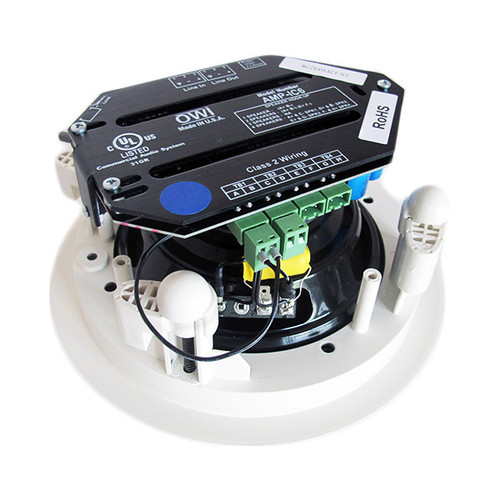

Three Source Plus One, 6.5" amplified ceiling speaker. It is UL Listed, Energy Verified, Energy Star audio product. This unit has 32 watts of power which can drive up to four speakers connected series parallel to have a net impedance of 8 ohms. With an included UL Listed, Level 5 (Energy Star), 15 volt, 3.5 ampere power supply, the amplifier can output 32 watts, or 8 watts per speaker in a four speaker hook-up. Volume Control Available.

Features

• Self-Powered "Green" Speaker
• UL and Energy Star Listed
• 2 x 16 or Total 32 Watts Max Power
• Three Audio Inputs
• Priority Override Feature
• Balanced Line Level Output
• Self Test Feature
• RS232 Controllable Supervision
• Infrared Wireless Microphone Auxiliary Input
• Speaker Combination Program Available

Specifications

Input Voltage, Nominal	(25 watts) 15 Volts DC
Input Current, Operating (15VDC)	1.667 Amperes Peak
Input Volt-Amperes, Peak (15VDC)	25 volt-amperes
Input Voltage, Maximum	16.5 volts, DC
Frequency Response
EQ Set to Flat	50Hz to 15 kHz
Bass	±10dB@50Hz
Treble	±10dB@10kHz
THD + Noise
S/N	>90 dB
Max Power Output (15V in)	2 Times 16 watts or a Total of 32 watts
DC Power, Standby	1.5 watts
AC Power, Sleep Mode (Energy Star)	Less Than 1 watt
Short Circuit Protected	Yes
Over Current Protected	Yes
Over Voltage Protected	Yes
Over Temperature Protected	Yes
Minimum Load Impedance	4.0 Ω (Two 8 Ω Speakers in Parallel)
Minimum Input Impedance, Priority In	20,000 Ω
Minimum Input Impedance, Bal. Line In	820 Ω
Minimum Input Impedance, Mini-Jack	2300 Ω
Dynamic Mic Input Impedance	300 Ω
Mounting Hardware	Mounting Clamps
Paintable	Yes
Cut Out Size	Φ7.68" (195.07mm)
Dimensions (Dia x H)	8.93" (226.82 mm) x 4.45" (113.03 mm)
Speaker Weight	6 lbs (2.72 kg)
Dimensions (H x W x D)	6" (152.4 mm) x 10" (254 mm) x 14" (355.6 mm)
Weight	6.30 lbs (2.85 kg)

DOCUMENTS

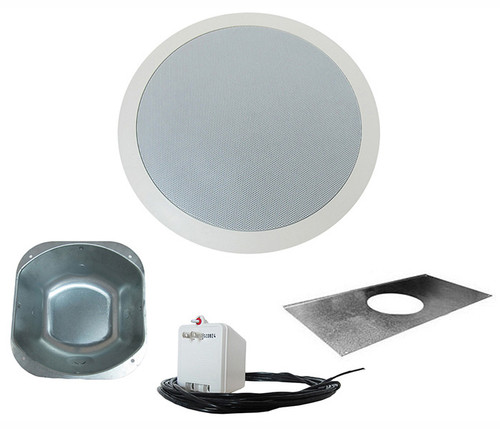

In The Box

• (1) AMP1SGRN - 6.5" Amplified Speaker
• (1) Backcan Enclosures
• (1) 6TB Tile Bridge
