This paging system is designed to meet the demanding needs of various commercial environments, featuring four Pure Resonance Audio H6 6.5" 2-way full-range all-weather horn-loaded loudspeakers for robust audio coverage indoors or outdoors. It includes a Pure Resonance Audio MX84 multi-zone 8-channel rack mount mic/line mixer, allowing precise control over paging and audio routing. While the mixer supports up to four zones, this configuration is powered by a DA2240 dual-impedance 240W rack mount power amplifier, which supports two audio zones. The MX8-PM multi-zone push-to-talk paging microphone enhances communication, enabling staff to coordinate and respond efficiently across the two active zones. Ideal for airports, ferry terminals, university campuses, shopping malls, convention halls, and other public spaces where reliable communication is essential, this rugged system provides the clarity and coverage needed for announcements, updates, or emergency alerts, ensuring smooth and efficient operations.
Note: If four-zone paging is required, simply add a second DA2240 amplifier to expand the system's zone output capabilities.
Sound System Features:
- Built to withstand harsh conditions, the H6's IP66 weatherproof rating and polypropylene carbonate enclosure provide complete protection against dust, water, and impacts for reliable performance in demanding environments
- Designed for crystal-clear sound, the H6 offers superior voice intelligibility over long distances, ensuring effective communication with its high-output performance and excellent paging capabilities
- The MX84 features 4 zone outputs with 2-band EQ, remote input, priority mute input, clipping, output level, and signal indicators. In this system, the single DA2240 provides the power needed for two zone operation, with the flexibility to expand to 4 zones by adding an additional amplifier. The built-in speaker allows for easy zone monitoring, and a pre/post-fader switch with volume control simplifies system management
- 4 balanced & 4 balanced or unbalanced inputs with volume gain controls, high, medium, & low equalization controls, intuitive zone buttons, & clipping & signal protection indicator lights
- The DA2240 features a unique dual-impedance operation with independent 4-16Ω and 70V output terminal switches enabling each channel to use a different impedance simultaneously
- With the MX8-PM microphone, you can manage the 2 zones in this system (expandable to 4 with additional power amplifier), paging individual zones, selected zone(s), or all zones with the press of a button
About the System Components
H6 6.5" All-Weather Horn Loudspeakers
The Pure Resonance Audio H6 horn-loaded loudspeaker is a durable and reliable choice for paging systems in challenging environments. Constructed from polypropylene and calcium carbonate, it delivers high-quality paging and announcements over long distances, even in extreme conditions. With an IP66 rating and impact-resistant housing, the H6 is protected against dust, dirt, water, and environmental impacts. Ideal for providing clear speech with power taps up to 60 watts and a wide 90° x 90° coverage angle. Featuring a 6.5" woofer and a 1" tweeter, it offers high-output sound with a frequency response of 120Hz - 18kHz and 93 dB SPL sensitivity. The built-in 60W 70V/100V transformer and heavy-duty mounting bracket ensure flexible, secure installation, making the H6 a practical solution for various public address applications.
MX84 Multi-Zone Zone 8-Channel Mic/Line Mixer

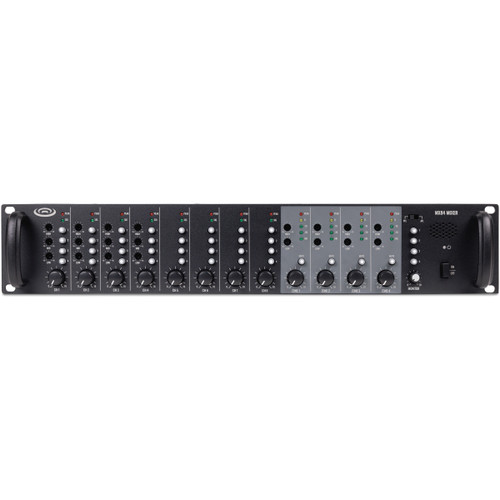

The Pure Resonance Audio MX84 multi-zone 8-channel rack mount mic/line mixer is a versatile solution for professional and commercial installations. This audio mixer provides intuitive control over 8 channels across up to 4 zones, with inputs for microphones and line-level audio sources. In this configuration, 2 zones are actively powered, with the ability to expand to 4 zones by adding an additional amplifier. The easy-to-use front panel grants quick access to controls such as individual volume adjustments, tone control, channel-to-zone selection, and zone mute buttons. This 2U rackmount mixer also includes priority mute, a remote mic input, and a built-in speaker for monitoring individual zones. With a user-friendly interface and robust features, the MX84 offers ultimate flexibility and effortless integration of multiple sources for a streamlined audio setup, making it the ideal choice for a wide range of applications.
DA2240 Dual-Impedance 240W Power Amplifier

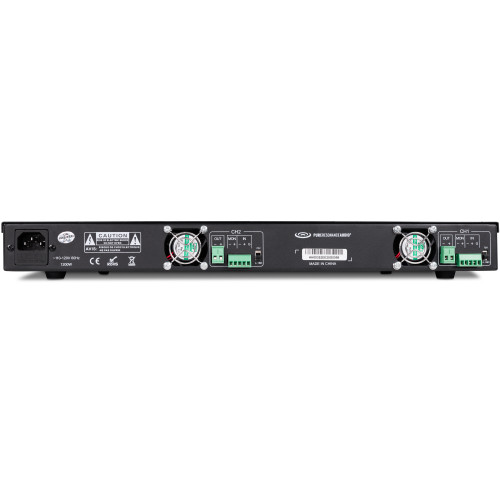

The Pure Resonance Audio DA2240 is a dual-impedance 2-channel Class-D power amplifier with a built-in high-efficiency selectable impedance power supply. Each 240-watt channel operates independently and includes a 70V/4-16Ω switch, allowing simultaneous use of different impedances. In this system, the DA2240 powers two distinct audio zones, delivering reliable, high-quality amplification for commercial paging applications. Housed in a 1U 19" lightweight chassis, the DA2240 includes short-circuit, overload, and overheating protection with built-in cooling fans for long-term stability and safe operation in demanding environments.
MX8-PM Multi-Zone Paging Microphone

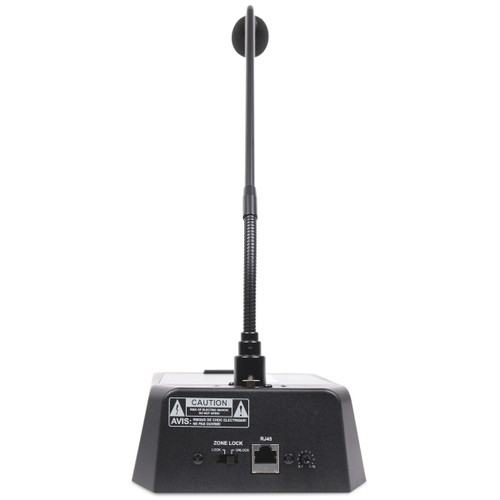

The Pure Resonance Audio MX8-PM is a compact, lightweight 4-zone push-to-talk microphone designed for commercial paging applications, exclusively compatible with the MX82 and MX84 mixers. In this system, it allows paging to 1 or 2 active zones, with the flexibility to support up to 4 zones if additional amplification is added. Equipped with a gooseneck condenser microphone, it provides excellent clarity with wide input sensitivity, low distortion, and minimal noise. The MX8-PM includes volume control, a pre-announcement chime, audio ducking, and zone-locking features. Powered by a single CAT-5 cable, it simplifies announcements with convenient controls, LED indicators, and precise zone selection, ensuring efficient communication in professional environments.
