Warehouse Paging System with 2 H6 6.5" All-Weather Horn Speakers, MA120BT 120W Bluetooth Mixer Amplifier and PTT1 Paging Microphone

Inside the Design

This warehouse paging system features two H6 6.5" 2-way full-range all-weather horn-loaded loudspeakers, delivering exceptional voice reproduction and wide dispersion for optimal sound coverage. This system includes a MA120BT 120W Bluetooth mixer amplifier for versatile audio control, a PTT1 desktop push-to-talk gooseneck microphone for clear communication, and a 25ft XLR cable to extend your reach. Additionally, it comes with 500 feet of 16/2 gauge speaker wire for durable installation. This paging system for warehouse applications is perfect for making announcements and ensuring clear communications throughout workshops, loading docks, shipping areas, and large storage spaces in the warehouse.

Sound System Features:

• Built to withstand harsh conditions, the H6's IP66 weatherproof rating and polypropylene carbonate enclosure provide complete protection against dust, water, and impacts for reliable performance in demanding environments
• Designed for crystal-clear sound, the H6 offers superior voice intelligibility over long distances, ensuring effective communication with its high-output performance and excellent paging capabilities
• Up to 60 watts of continuous power handling and a 90° x 90° dispersion pattern produce comprehensive and even coverage, making the H6 ideal for areas where uniform sound distribution is crucial
• The MA120BT supports playback from Bluetooth-enabled devices so you can easily play and control pre-recorded announcements or sound effects over your horn speaker
• The on-board plug-in play MP3 player also accepts TF cards and USB thumb drives that can be plugged into the front panel
• The PTT1 push-to-talk tabletop microphone is ideal for paging, announcements, and general public address applications



About the System Components

Pure Resonance Audio H6 6.5" Horn Loudspeakers

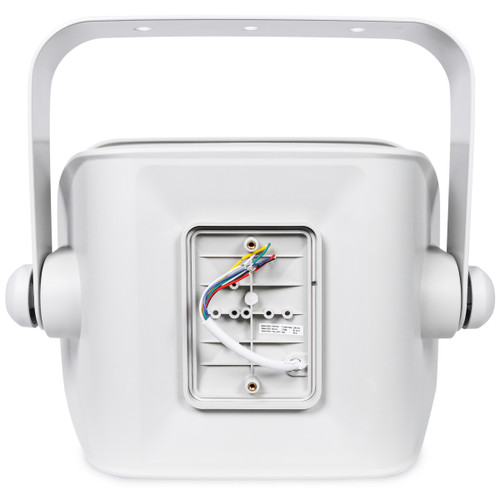

The Pure Resonance Audio H6 horn-loaded loudspeaker is a durable and reliable choice for public address in challenging environments. Constructed from polypropylene and calcium carbonate, it delivers high-quality paging and announcements over long distances, even in extreme conditions. With an IP66 rating and impact-resistant housing, the H6 is protected against dust, dirt, water, and environmental impacts. Ideal for settings like warehouses, factories, stadiums, schools, arenas and parks, it provides clear speech with power taps up to 60 watts and a wide 90° x 90° coverage angle. Featuring a 6.5" woofer and a 1" tweeter, it offers high-output sound with a frequency response of 120Hz - 18kHz and 93 dB SPL sensitivity. The built-in 60W 70V/100V transformer and heavy-duty mounting bracket ensure flexible, secure installation, making the H6 a practical solution for various applications.

Pure Resonance Audio MA120BT 7-Channel 120W Mixer Amplifier

The Pure Resonance Audio MA120BT mixer amplifier with built-in Bluetooth and 70V/100V transformer technology provides a simple-to-operate and reliable 6-input solution with a built-in Bluetooth media player, ideal for seamless audio streaming in commercial applications. It features both balanced and unbalanced inputs, along with versatile 70V, 100V, 8 ohm, or 4 ohm outputs, offering flexibility for various installation needs. Its compact size, intuitive interface, and robust design make this mixer-amp an easy choice for any application, ensuring consistent performance and high-quality sound in even the most demanding environments.

Due to the possibilities of FM radio interference and the variables involved, it's not recommended to use FM radio as your primary input source.

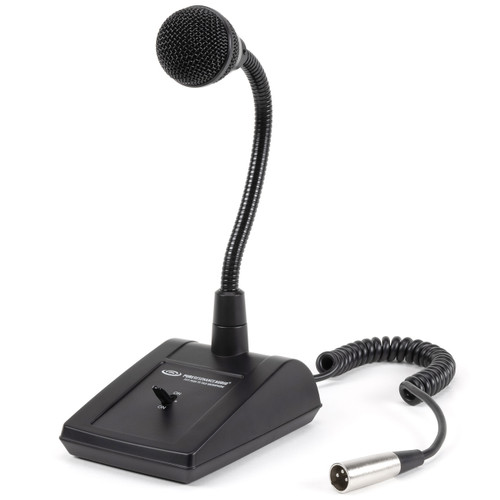

Pure Resonance Audio PTT1 Push-to-Talk Paging Microphone

The Pure Resonance Audio PTT1 desktop push-to-talk microphone provides excellent performance and reliability, ideal for paging and announcements in your warehouse. The PTT1 features a uni-directional dynamic gooseneck microphone, table-stand, dual momentary locking switch, 5-foot cable, and three-pin male XLR connector. The durable gooseneck and metal table-stand ensure the PTT1 push-to-talk paging microphone can withstand even the toughest daily use in tough environments.

System & Component Videos

Pure Resonance Audio H6 6.5" Full-Range All-Weather Horn-Loaded Loudspeakers

• Weatherproof - Built to withstand harsh conditions, the IP66 weatherproof rating and polypropylene calcium carbonate enclosure ensure complete protection against dust, water, and impacts while also providing enhanced thermal conductivity for reliable long-term performance in demanding indoor and outdoor environments
• Quality Performance - The 6.5" LF paper and 1" ABS/glass fiber HF drivers produce a frequency response of 120Hz - 18kHz and a max SPL of 110 dB for full-range high-output sound
• Excellent Paging - Designed to deliver crystal-clear sound, the H6 provides superior voice intelligibility essential for effective communication over long distances
• Built-In Transformer - The H6 features a built-in 60-watt 70V/100V transformer with a 4-ohm bypass and a recessed bare wire connector for versatile power options and a weather-safe connection
• Wide Coverage - Up to 60 watts of continuous power handling and a 90° x 90° dispersion pattern produce comprehensive and even coverage, making the H6 ideal for areas where uniform sound distribution is crucial
• Quick & Secure Installation - The included heavy-duty mounting bracket allows for safe, secure, and straightforward installation, providing stability and peace of mind in small stadiums, schools, warehouses, parks, docks, and other indoor or outdoor commercial applications

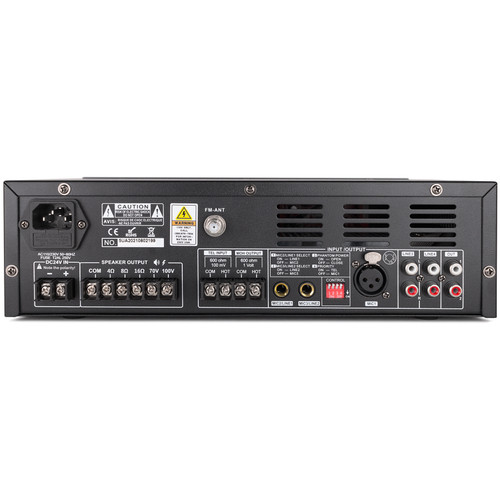

Pure Resonance Audio MA120BT 7-Channel 120W Commercial Mixer Amplifier with Bluetooth

• 7-channel powered mixer amplifier (6 inputs + Bluetooth Media Player)
• Volume Controls for Mic 1-3, Line 1-2, MP3/FM Radio, Bass, Treble and Master
• MP3 Player, FM Radio & Bluetooth (with IR remote control)
• USB and SD inputs on front panel
• Power output rating 120 Watts
• Built-in 70V/100V transformer
• Speaker outputs: 70V, 100V, 4, 8 and 16 Ohms
• Mic 1 of balanced XLR input (with phantom power)
• Mic 2-3 microphone or line switchable
• Line 1-2 input of RCA inputs
• DIP switches for Mic/Line, phantom power and microphone priority
• Unbalanced 6.3 mm phone jack input
• One RCA line output (0.775 line level 0 dBV)
• Telephone input (600 Ohm/100mV) with VOX priority and MOH (Music on Hold) (600 Ohm 1 Volt)
• LED indicators for power clip, protect signal, Mic 1-3, Line 1-2 and telephone inputs
• Short-circuit, clip, overload and high temp protection
• 24 VDC Emergency backup supply
• 115V 60 Hz & 24V DC both operation system



Pure Resonance Audio PTT1 Push-to-Talk Paging Microphone

• Built To Last - Reliable and durable, the PTT1 is built to withstand even the toughest daily use in restaurants, retail stores, schools, offices, or any commercial environment
• Paging and Announcements - This push-to-talk tabletop microphone is ideal for paging, announcements, and general public address applications
• Excellent Performance - The uni-directional gooseneck dynamic microphone provides excellent performance and speech intelligibility from a push-to-talk microphone
• Metal Table-Stand - The gooseneck microphone is mounted on a rugged table-stand that is die-cast from corrosion-resistant zinc alloy metal
• Push-To-Talk Switch - The table-stand features a dual momentary switch for priority paging as well as a locking switch for continuous usage
• Simple Setup - The dynamic capsule does not require AC power and a coiled 5' cable with an XLR connector, make for a quick and easy to set up

• (2) Pure Resonance Audio H6 6.5" 2-Way Full-Range All-Weather Horn-Loaded Loudspeakers
• (2) Mounting Brackets
• (1) Pure Resonance Audio MA120BT 120W Commercial Mixer Amplifier
• (1) IR Remote Control
• (1) Power Cord
• (1) Pure Resonance Audio PTT1 Desktop Push-to-Talk Gooseneck Microphone
• (1) Pure Resonance Audio XLR-25 Female XLR to Male XLR Cable - 25ft
• (500') West Penn 225 16/2 Non-Plenum Audio Speaker Wire - Black
