Peavey KB 5 150W KB Series Dual 10" Keyboard Amplifier (Discontinued)

By Peavey

Peavey KB 5 150W KB Series Dual 10" Keyboard Amplifier (Discontinued)

Write a Review

Part #:

00573260

Model #:

KB 5

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The KB 5 was designed as a personal PA system in a keyboard amp, it can easily handle voice, microphones and other instruments, including acoustic and electric guitars, drum machines and backing machines, such as CD and DAT players.

Description

The KB 5 features separate inputs on each channel. Other essential features include stereo effects loop, ground lift, master level, XLR balanced stereo line out, DDT defeat switch and the capability to drive an external speaker.

Features

150 watts/200 watts with external speaker.
Stereo mixer with 2-band EQ and main effects send/return.
Mic/line channel with 3-band EQ and effects send/return.
Monitor input with level control and assign.
Headphone out with level control.
Built-in casters and handle for easy moving.
Two 10 inch speakers and horn.

Specifications

Model	KB 5
Part Number	00573260
Product Type	Keyboard Amplifier
Channel 1‚ 2 and 3 inputs	Specifications
Input Impedance	100K‚ Left/Mono
Nominal Input Level	-22 dBV‚ 79 mV RMS
Minimum Input Level	-40 dBV‚ 10 mV RMS
Nominal Input Level	-15 dBV‚ 178 mV RMS
Minimum Input Level	-33 dBV‚ 22 mV RMS

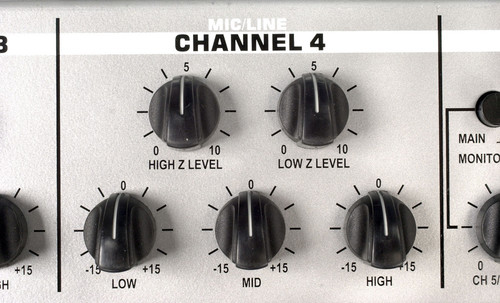

Channel 4 input	Specifications
Low Z Input Impedance	5 k Ohms
Nominal Input Level	-28 dBV‚ 40 mV RMS
Minimum Input Level	-48 dBV‚ 4 mV RMS
High Z Input Impedance	100 l‚ Left
Nominal Input Level	-5 dBV‚ 560 mV RMS
Minimum Input Level	-22 dBV‚ 79 mV RMS
Right	-1 dBV‚ 1.1 V RMS
Minimum	-16 dBV‚ 158 mV RMS
Headphone output	Specifications
Load Impedance	8 Ohms or greater
Nominal Output	100 mW RMS
Main line out	Specifications
Output Impedance
Output Level	18 dBV
POWER AMPLIFIER SECTION	Specifications
Rated power and load	200 Watts RMS/4 Ohms or 150 WattsRMS/8 Ohms with DDT off
Frequency response	+0, -1dB, 20Hz–20kHz @ 100 Watts RMS/8 Ohms
Total harmonic distortion	Less than 0.01% @ 1 kHz/8 OhmsTypically less than 0.08%‚ 20 Hz–20kHz
DDT dynamic range	Greater than 20 dB
DDT maximum THD	Below 0.5% THD for 6 dB overloadBelow 1% THD for 20 dB overload
Hum and noise	Greater than 100 dB below rated power
Power consumption	300 Watts @ 120V AC‚ 50/60 Hz‚ domestic300 Watts @ 220–230/240V AC‚ 60 Hz‚ export
Dimensions (W x H x D)	21.25"(53.975 cm) x 28.25"(71.755 cm) x 27.5"(69.85 cm)
Weight Unpacked	85.80 lbs (38.918 kg)
Weight Packed	96.00 lbs (43.545 kg)
