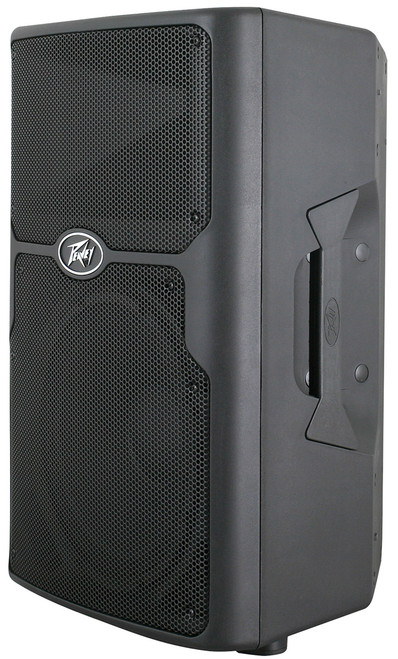

Peavey PVXp 12 800W 12 inch Powered Loudspeaker (Discontinued)

Description

Details

Sound Pressure Level - the real measure of a powered speaker!

SPL (sound pressure level) is also commonly referred to as efficiency and sensitivity. This parameter is a measure representing a speaker's loudness. A higher SPL equates to a louder speaker.

The PVX™p 12 powered enclosures deliver higher SPL while providing high-fidelity and impressive power using Peavey's legendary speaker and amp technology. These enclosures bring 800 watts peak of crystal-clear highs and deep low end, while using exclusive DDT™ compression technology to maintain clarity throughout the mix.

The Peavey PVXp 12 is constructed with a 12" heavy-duty, premium Peavey woofer with a 2-3/8-inch voice coil for the lows and low-mids, while the Peavey RX14™ 1.4-inch titanium diaphragm compression driver, coupled to a constant directivity horn, handles the highs and mid-highs.

Peavey PVX enclosures are housed in a durable, injection-molded enclosure that includes a pole mount, three multi-point flying locations and a tilt-back design to accommodate use as a personal monitor. A black powder-coated steel grille provides driver protection and a clean, professional appearance.

With compact size, solid construction, multiple flying and mounting options, ample power and features, these will be your "go to" speakers for sound reinforcement.

Features

Features

Two-way 800 watt peak power enclosure
12" high-performance Peavey woofer with 2.3" voice coil
Multiple cabinet fly points
Pole mountable cabinet
RX™ 14 titanium compression driver
Angled side for use as monitor when required
LED signal present and DDT active indicator
Rugged polypropylene molded enclosure
Combination 1/4" and XLR input
Exclusive DDT™ compression and speaker protection
XLR and 1/4" through outputs
Molded in cabinet handles

Specification

General Specifications
Frequency Range, 1 Meter On-Axis, Swept-Sine in ½ Space Environment	51 Hz to 20 kHz
Frequency Response, 1 Meter On-Axis, Swept-Sine in Anechoic Environment	60 Hz to 20 kHz (±3 dB)
Usable Low Frequency Limit (-10 dB Point Anechoic)	55 Hz
Nominal Sensitivity (1 W @1 M, Swept Sine Input in Anechoic Environment)	97 dB (Average)
Maximum Sound Pressure Level (1 Meter)	127 dB SPL Peak With Music
Radiation Angle Measured at -6 dB Point of Polar Response	Nominal: 100 Degrees Horizontal X 50 Degrees Vertical (Axis of the Vertical Main Polar Lobe is Angled Down 10 Degrees, Resulting in the Angular Pattern With Respect to Straight Ahead Being +15, -35 Degrees)
Transducer Complement	Heavy-Duty 12” Woofer With 2-3/8” Voice Coil & 50 oz. Magnet, RX™ 14 1.4” Dynamic Compression Driver
Box Tuning Frequency	62 Hz
Electroacoustic Crossover Frequency	2,800 Hz
Crossover Type	Internal Electronic Two-Way Crossover With Driver EQ, Level Matching, Bass Boost & Subsonic Filtering
Crossover Slopes	24 dB/octave (4th Order) Low Pass, 24dB/octave (Fourth Order) High Pass, Both With Staggered Poles and Driver EQ
Input Connections	One Combo Female XLR and 1/4" Phone Jack Providing Balanced Line-Level Operation From the 1/4” Jack Section, and High-Output Dynamic Microphone Operation From the XLR Section
Output Connections	One Male XLR and One 1/4” Phone Jack. The Thru Jacks are Intended for the Use of Linking Multiple PVXp™12 Enclosures in a Line or to Provide a Feed to a Powered Subwoofer, or Other Electronics That Needs to Receive a Full Range Version of the Input Signal.
Enclosure Materials & Finish	Black ABS Plastic with Textured Surface, Black Powder-Coated Perforated Grille. Also Available in White
Mounting Provisions	Unit Has Two Sets of Two M10 Inserts, One Pair on the Top, and One Pair on the Bottom. Additional Mounting Points are a Set of Four M8 Inserts on the Top, and a Set of Four on the Right Side in the Handle Recess, and a Set of Four on the Bottom, Which Use The Peavey Versamount 70+ Mounting Bracket. Four Rubber Feet Provide Vibration Free Floor or Stage Use, and a Molded-in Stand Mounting Cup is on The Bottom.
Electronics and Amplifier Internal Power Amplifiers (@120 VAC Line)
Total Available Power	800 watts Peak
Woofer	650 watts Peak Available Power
Continuous Power	325 watts @ Less Than 1% Distortion
Tweeter	150 watts Peak Available Power
Continuous Power	75 watts @ Less Than 1% Distortion
Electronic Input Impedance (Nominal)
Line	2.2 k ohms Balanced (1/4"), 10 k ohms Unbalanced 1/4"
Mic	2.2 k ohms Balanced (XLR) No Phantom Power Available
Input Sensitivity for Full Output (Level Full CW)	1/4” TRS Phone Jack – 0.54 V RMS, XLR Jack – 0.12 V RMS
Infrasonic Filter Protection	36 dB/octave Roll-Off
Nominal Amplifier Frequency Response	+0, -3 dB From 20 Hz to 20 kHz
Hum and Noise	Greater Than 90 dB Below Rated Power
DDT™ Dynamic Range	Greater Than 21 dB
THD and IM	Typically Less Than 0.5 %
Damping Factor	Greater Than 100 @ 1000 Hz, 8 Ohms
Power Requirements	Nominal 370 Watts, 100-120 VAC 50-60 Hz
Dimensions (H x W x D) Front	24.50" (622 mm) x 16.10" (409 mm) x 15.00" (381 mm)
Dimensions (H x W x D) Rear	22.75" (578 mm) x 8.75" (222 mm) x 15.00" (381 mm)
Net Weight	42 lbs (19.50 kg)
Weight Packed	48.00 lbs (21.77 kg)
