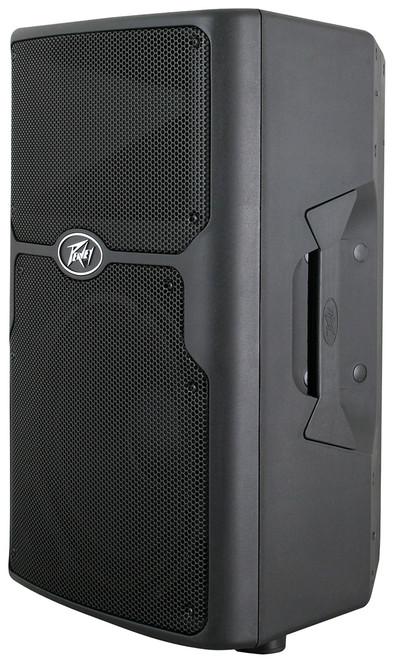

The PVX-15 is an 800W passive (unpowered) 15" two-way loudspeaker that's versatile enough for front-line reinforcement or use as a floor monitor. The PVX-15's lightweight, roadworthy molded polypropylene exterior and multiple fly points make it ideal for life on the road or permanent installation.
Voiced for live music or speech applications, these two-way speaker systems will handle 400 watts program and 800 watts peak power. Custom Waveguide technology yields a 100º by 50º coverage of critical vocal frequencies ensuring the audience can hear every word. The unique cabinet design allows the PVX-15 to be utilized as a screaming floor monitor that the performers are guaranteed to hear on stage.
- Features
Features
- Two-way sound reinforcement enclosure
- 15" heavy-duty woofer with 2 3/8" voice coil and 50 oz. magnet
- RX 14 compression driver, with 1.4" titanium diaphragm
- 400W program/800W peak power handling
- Patented Quadratic Throat Waveguide™ technology, 100 by 50 degree coverage
- Asymmetrical horn aims the sound down 10°, at the audience, not over their heads
- Crossover network for driver protection and EQ
- Durable plastic injection-molded trapezoidal enclosure

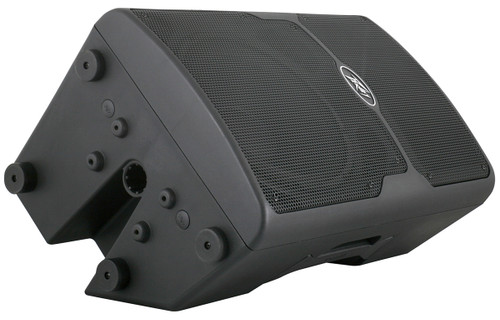

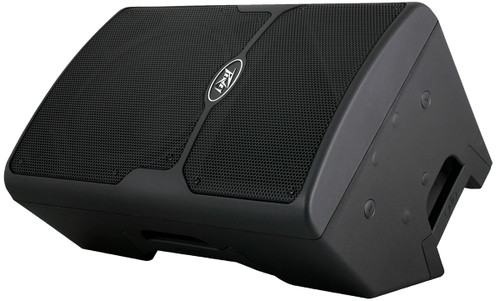

- Extra angled section on right side allows floor monitor use
- Full-coverage heavy-duty perforated steel grilles, with powder coat finish
- Pole mount molded-In
- Top, bottom and right side flying point inserts
- Specification
Product Type 15" Passive Loudspeaker Frequency Range 45 Hz to 21 kHz - 1 Meter On-Axis, Swept-Sine in Half Space Environment Frequency Response 57 Hz to 20 kHz (±3 dB) 1 Meteron-Axis, Swept-Sine in Anechoic Environment Power Handling and Power Rating (Program) 400W Usable Low Frequency Limit 43 Hz (-10 dB Point Anechoic) Peak Power Capacity (Peak) 800W Sound Pressure Level 97 dB SPL, (2.83V Input) 1 Watt, 1 Meter in Anechoic Environment Maximum Sound Pressure Level (1 Meter) 120 dB SPL Continuous
126 dB SPL PeakRadiation Angle Nominal: 100° Horizontal x 50° Vertical - Measured at -6 dB Point of Polar Response Transducer Complement Heavy-Duty 15" Woofer With 2 3/8" Voice Coil & 50 oz. Magnet
RX™14 1.4" Titanium Diaphragm Dynamic Compression DriverBox Tuning Frequency 53 Hz Crossover Frequency (Internal Passive) 2.6 kHz Impedance (Z) Nominal: 8.0 Ω
Minimum: 6.5 ΩInput Connections One Four-Pin Twist-Lock Connector Paralleled with a 1/4" Phone Jack Enclosure Materials and Finish Black ABS Plastic with Textured Surface, Black Powder-Coated Perforated Grille Dimensions (H x W x D) Front 28.25" (718 mm) x 18.90" (480 mm) x 18.71" (475 mm) Dimensions (H x W x D) Rear 26.25" (667 mm) x 10.25" (260 mm) x 18.71" (475 mm) Net Weight 47 lbs (21.4 kg) - Documents
