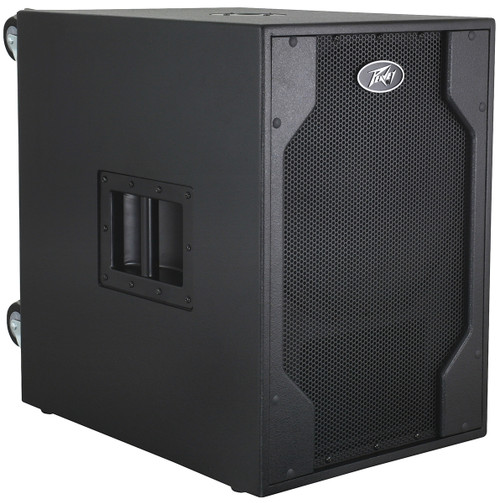

Peavey PVXp Sub 15" Vented Powered Subwoofer (Discontinued)

Part #:
03611330
Model #:
PVXp Sub
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The PVXp Sub from Peavey features an ultra-reliable power section that provides a total of 800W of peak available power with DDT™ compression. This powered enclosure also features a 15" heavy-duty woofer with a 3" voice coil.

Description

Peavey Electronics® set the standard for affordable, feature-packed powered P.A. solutions more than four decades ago. The new Peavey PVX™ Series of active and passive loudspeakers are the culmination of decades of R&D and experience building the best portable, all-in-one audio solutions--bringing legendary Peavey performance and reliability to audio pros and musicians of all levels.

Continuing the PVX™ Series, the PVXp Sub from Peavey features an ultra-reliable power section that provides a total of 800W of peak available power with DDT™ compression. This powered enclosure also features a 15" heavy-duty woofer with a 3" voice coil. The PVXp Sub provides a balanced input via a combination jack that accepts balanced TRS 1/4" input as well as a balanced XLR input. There are two balanced thru high pass XLR outputs and a Full-Range XLR output. There is an adjustable Level control, as well as a combination,  LED indicator, that illuminates when power is on and when the "soft-limiting" DDT circuit is activated.

Peavey PVXp Sub is housed in a durable enclosure that includes a pole mount for additional PVX speakers, a black powder-coated steel grille provides driver protection and a clean, professional appearance.

Features

  • 15" heavy-duty woofer
  • Internal line level low-pass/high-pass crossover network
  • Fully adjustable KOSMOS® C for increased bass impact
  • XLR/one quarter inch combo jack input
  • Power amp has forced air cooling for maximum reliability

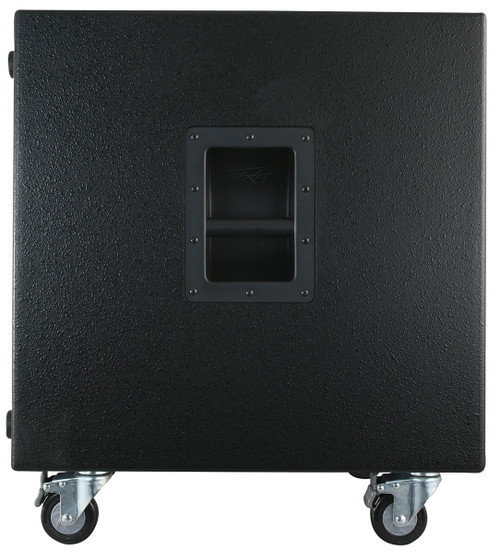

  • Large heavy-duty locking casters
  • Perforated steel grill
  • Steel handles
  • T-nut woofer mounting
  • Rugged dado and rabbet construction plus internal braces for lightweight yet strong cabinet
  • 850W peak available power
  • Compact dimensions for a 15" woofer based sub

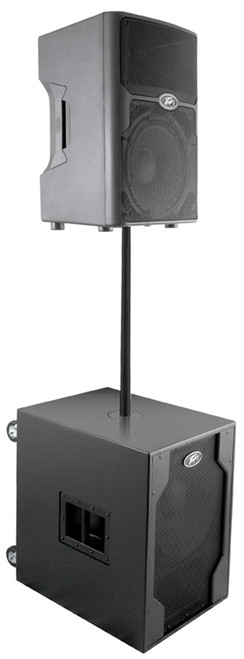

  • Threaded pole for top speaker mount
  • Two high-pass XLR outputs, one full range thru XLR output

Specifications

Frequency Range (-10 dB, Half Space) 43 Hz – 180 Hz
Crossover Control Full CW
Frequency Response 48 Hz – 138 Hz
Crossover Control Full CW
Power Amp Rating, Total Power Output 800 watts Peak Available Power Continuous Power: 470 watts Into 4 ohms
Electronic Input Impedance (Nominal) Line In: 2.2 k ohms Balanced (XLR or 1/4"), 10 k ohms Unbalanced 1/4"
Sound Pressure Level1 Watt, 1 Meter In Anechoic Environment 97 dB SPL
Maximum Sound Pressure Level (1 Meter) 123 dB SPL Continuous,127 dB SPL Peak
Transducer Complement 15" Premium Heavy-Duty Woofer, 3" Voice Coil
Box Tuning Frequency 50 Hz
Input Connections One Combo Female XLR/ 1/4" Phone Jack Providing Balanced or Unbalanced Operation
Output Connections Two High Pass Outputs, Independently Electrically Buffered, With Switchable Output Level Pad
Output Connections One Full Range Thru, Electrically Buffered
Controls Level: Provides +/- 20 dB Gain Adjustment
Electronic CrossoverContinuously Variable From 90 Hz to 180 Hz Low Pass Slope: 24 dB/octave, High Pass Output Slope: 18 dB/octave
Infrasonic Filter Slope 36 dB/octave
Nominal Amplifier Frequency Response +0, -3 dB From 20 Hz to 20 kHz
Hum and Noise Greater Than 90 dB Below Rated Power
DDT Dynamic Range Greater Than 21 dB
THD and IM Typically Less Than 0.5 %
Damping Factor Greater than 100 @ 1000 Hz, 4 Ohms
Power Requirements of Peavey PVXp Sub System Nominal 160 Watts, 100-120 VAC 50-60 Hz (Domestic)220-240 VAC 50-60 Hz (Export)
Dimensions (H x W x D)In Use Position 24.25" (616 mm) x 16.75" (425.45 mm) x 23" (584.2 mm)
(Not Including Wheels, 4.06” Deep)
Dimensions (H x W x D)In Transport Position 27.06" (687.324 mm) x 16.75" (425.45 mm) x 24.25" (616 mm)
Net Weight 76 lbs (34.5 kg)
