Public Address Sound System with 3 Community All-Weather Loudspeakers and AtlasIED Mixer Amplifier

Indoor Outdoor Public Address Sound System

This public address sound system is designed with robust all-weather products made to run 24/7 365, perfect for outdoor settings where vocal clarity and coverage are essential such as football, baseball and soccer fields, public venues and parking lots. Fully weather-resistant for reliable operation in demanding environmental and weather conditions, this system includes three Community R.25-94Z 8" horn-loaded loudspeakers, an AtlasIED AA400PHD 6-input 400W mixer Amplifier, Pure Resonance Audio UC1S Ultra-Clear Dynamic Vocal Microphone with On/Off Switch, AtlasIED DS7E adjustable desktop mic stand and cables to complete your system.

Community R.25-94TZ Weather Resistant Loudspeakers

The Community R.5-94TZ two-way, full-range loudspeaker system is engineered to provide quality full-range sound projection in a variety of outdoor and indoor applications. Its wide range, smooth frequency response and high efficiency ensure both high fidelity music reproduction and superb projection of clear intelligible speech with very low distortion. An input autoformer with switchable taps provides impedance matching to 70V or 100V lines. Five-year limited product warranty; fifteen-year enclosure warranty.

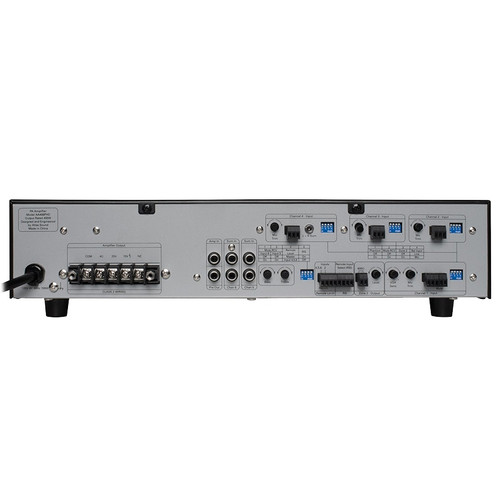

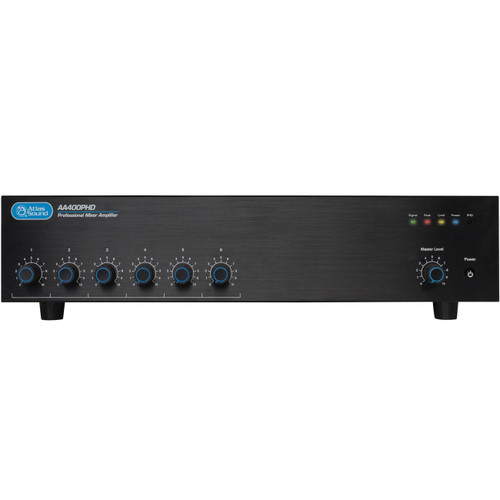

AtlasIED AA400PHD 6-Input 400W Mixer Amplifier

The AA400PHD is a six input channel mixer amplifier designed for distributed business paging and background music (BGM) systems, medium to large speech privacy systems, and in applications where music on hold (MOH) plus paging is required. With four microphone/line input and two stereo line inputs, the AA400PHD will accommodate a variety of input sources including paging microphones, media players, and digital music receivers. The AA400PHD includes a patent-pending automatic system test, the Push Here Diagnostic® (PHD). The PHD button is designed to check the connected loudspeaker lines for wiring and impedance errors. This test can be activated once all loudspeakers are connected and the circuit automatically verifies that the attached loudspeakers' tap settings do not exceed the amplifier's rated power, no loudspeakers are mistakenly tapped at 8Ω, and the loudspeaker wire is free from shorts.

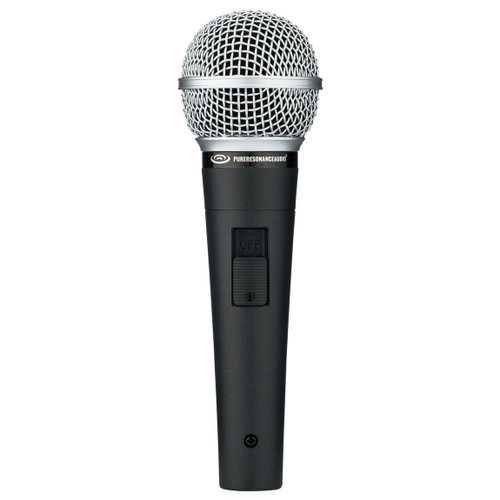

Pure Resonance Audio UC1S Ultra-Clear Dynamic Vocal Microphone with On/Off Switch

The UC1S Ultra-Clear™ is a cost-effective, high-performance vocal microphone ideal for speech and vocals in schools, churches, corporate AV, PA systems, and installations. It features a super heavy-duty housing and ultra-quiet On/Off switch, making it a reliable choice for lead vocals, backup vocals, spoken word, and public address applications.

Community R.25-94TZ Weather Resistant Loudspeakers:

• Weather-resistant, rotomolded UV enclosure
• Weather-treated drivers and crossovers
• Corrosion-resistant zinc-rich epoxy dual-layer powder coated steel grille and yoke
• Pattern control down to 630 Hz
• High efficiency
• Integral mounting points
• High power passive crossover
• DYNA-TECH protection circuitry
• Multi-tap 200W autoformer for 70V and 100V inputs


AtlasIED AA400PHD 6-Input 400W Mixer Amplifier:

• 400W into 25V/70.7V and 4Ω Loads
• Automated Diagnostic System Test (Push Here Diagnostic®)
• Four Balanced Mic/Line/Tel Inputs w/ Phantom Power
• Input Assignable Zone 2 Output
• Remote Level Control
• Remote Input Select (RIS)
• Line Output
• Preamp In for External Processors
• Variable Mute Sensitivity Control for Input 1
• Contact Closure Mute Terminals
• Optional Rack Mount Kit Available - Model AARMK2-0



Pure Resonance Audio UC1S Ultra-Clear Dynamic Vocal Microphone with On/Off Switch

• Super heavy-duty housing
• Built-in wind and breath "pop" noise filter
• Ultra dependable quiet switch
• Steel mesh grille
• SwitchCraft connector
• Frequency response tailored for vocals
• Uniform cardioid (unidirectional) dynamic pickup pattern isolates the main sound source and minimizes background noise
• Supplied with break-resistant stand adapter
• Frequency response: 50 to 16,000 Hz
• For outdoor and indoor events

• (3) Community R.25-94Z 8 inch 2-Way Horn-Loaded Loudspeakers
• (1) AtlasIED AA400PHD 6-Input 400W Mixer Amplifier
• (1) Pure Resonance Audio UC1S Ultra-Clear Dynamic Vocal Microphone with On/Off Switch

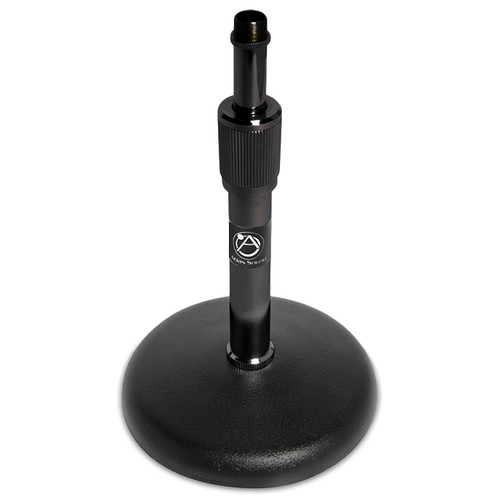

• (1) AtlasIED DS7E Adjustable Height Desktop Mic Stand

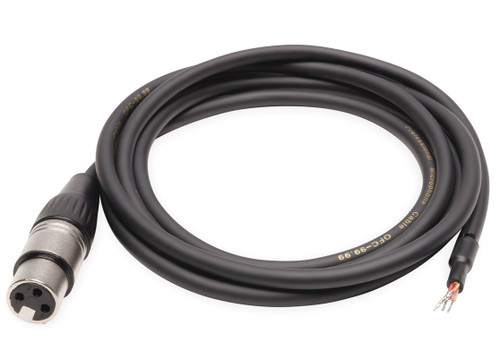

• (1) Pure Resonance Audio XLRF-6-PREP Female XLR to Prep Patch Cable - 6ft
• (200') West Penn 225 16/2 Non-Plenum Audio Speaker Wire - Gray
