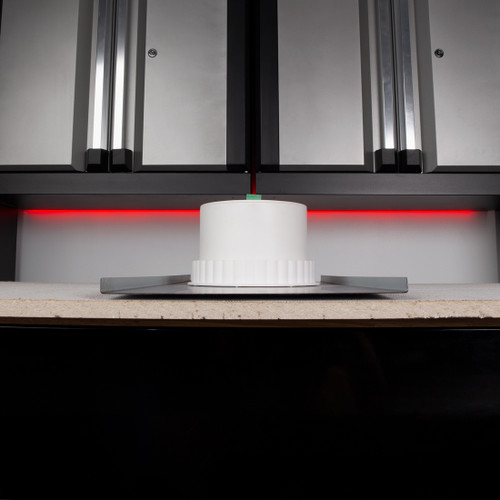

Pure Resonance Audio C5-TB Tile Bridge
Pure Resonance Audio C5-TB Tile Bridge for C5 4" Ceiling Speaker
Pure Resonance Audio C5-TB Tile Bridge for C5 4" Ceiling Speaker
Pure Resonance Audio C5-TB Tile Bridge for C5 4" Ceiling Speaker
By Pure Resonance Audio

Pure Resonance Audio C5-TB Tile Bridge for C5 4" Ceiling Speaker

Write a Review
Part #:
C5-TB
Model #:
C5-TB
Availability: Currently Backordered - Contact Us for Comparable Solutions Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.

Shipping Notice:  We are moving! Shipping will be temporarily paused from October 15 to 19 and will resume on October 20.

Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL
The Pure Resonance Audio C5-TB ceiling speaker tile bridge features a round 6.31" cut-out for use in drop tile and suspended ceiling applications. The C5-TB is designed to securely install the C5 4" micro 70-volt ceiling speaker in 2x2 or 2x4 drop ceiling tiles.

Description

Pure Resonance Audio C5-TB Tile Bridge for C5 4" Ceiling Speaker

The Pure Resonance Audio C5-TB tile bridge securely holds the C5 4" micro 70-volt ceiling mount speaker in 2x2 or 2x4 drop tile ceilings. Built tough with a 1 mm thick electro-galvanized metal construction, the drop ceiling tile bridge features a 6.31" (160.4 mm) diameter hole for a perfect fit. The C5-TB ensures a safe and secure installation by distributing the weight of the C5 to the overhead T-Bar ceiling supports. The ceiling speaker tile bridge retains the seamless recessed design of the C5 for a flawless look.

Features
  • Specially Designed: Compatible with the C5 4" 70-volt ceiling mount speaker in 2x2 or 2x4 drop tile ceilings
  • Durable Construction: 1 mm thick electro-galvanized metal construction
  • Precision Cut: 6.31" (160.4 mm) diameter mounting hole for a perfect fit
  • Secure Install: Distributes the weight of the C5 to the ceiling grid supports for safe and secure installation

Specifications
Material Electro-galvanized metal
Hole Diameter 6.31" (160.4 mm)
Dimensions (H x W x D) 23.75" (603.3 mm) x 10" (254 mm) x 0.5" (12.7 mm)
Weight 2.6 lbs (1.18 kg)
