The DZC digital audio zone controller is configured through the DZMA Web App to control either a single audio zone or multiple zones simultaneously. When assigned to one zone, it operates as a single-zone controller. When assigned to multiple zones, it becomes a multi-zone speaker controller, providing centralized control where needed without additional hardware.
This flexibility allows system designers to tailor wall audio control to individual spaces, grouped zones, or multiple areas.
All DZC functions of this digital zone control panel are operated using a high-quality rotary encoder dial with a push-button. Subtle tactile feedback during rotation lets users feel incremental changes, and a distinct click confirms selections when the dial is pressed.
This highly responsive control design makes navigation intuitive and reliable, even for non-technical users.
The DZC is powered via Power over Ethernet (PoE) using standard Cat5 or higher cabling, eliminating the need for local power supplies. Installation is clean and efficient, making it ideal for retrofit or new construction projects.
The DZC digital audio controller requires a standard PoE network switch or PoE injector (not included). It is compatible only with network-connected Pure Resonance Audio DZMA mixer amplifiers and is not supported by third-party or non-network-enabled amplifiers.
| Input Rating | Connector: RJ45 with small/no strain relief boot Cables: Category 5e or faster STP cables PoE Class I device, 48V |
|---|---|
| Display Screen Dimension | 27 mm x 27 mm |
| Display Screen Area | 768.4 sq mm |
| Display Screen Resolution | 240 x 240 pixels |
| Display Screen Type | RGB, transmissive / normally black |
| Display Screen Material | High gloss polished transparent acrylic |
| Exterior & Mechanical Parts Material | Plastic (ABS-PC) |

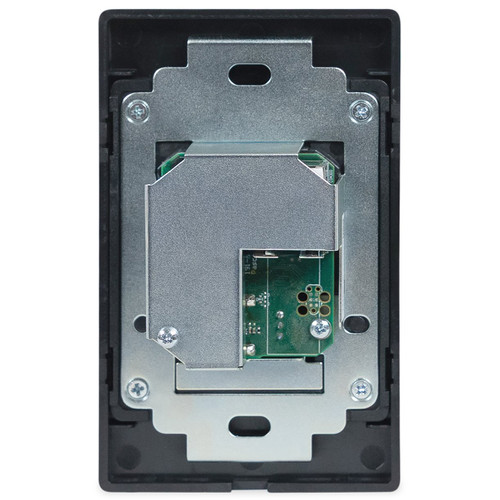

| Base Construction & Shield Material | Pre-galvanized steel |
| Protection Rating | IP30 |
| Connection & Data Protocol | RJ45, DZMA proprietary over CAT 5e (or faster STP) |
| Standby Modes | 6 Settings: 30 secs, 2 mins, 5 mins, 15 mins, 30 mins, 60 mins |
| Operating Temperature | 0-40°C (32-104°F) |
| Power Consumption | PoE Class 1 / 3.84W max |
| Power Supply | RJ45 (CAT 5e cable or faster STP) using standard PoE switch, or PoE injector (not included) |
| Maximum Cable Length (CAT 5e) | 328 ft (100 m) |
| Mounting Holes Distance (Center to Center) | 3.29" (83.5 mm) |
| Dimensions (H x W x D) | 4.5" (155 mm) x 2.75" (71 mm) x 1.69" (43 mm) |
| Weight | 0.26 lbs (0.12 kg) |
| Shipping Dimensions (H x W x D) | 2.72" (69 mm) x 4.76" (121 mm) x 5.79" (147 mm) |
| Shipping Weight | 0.57 lbs (0.26 kg) |
