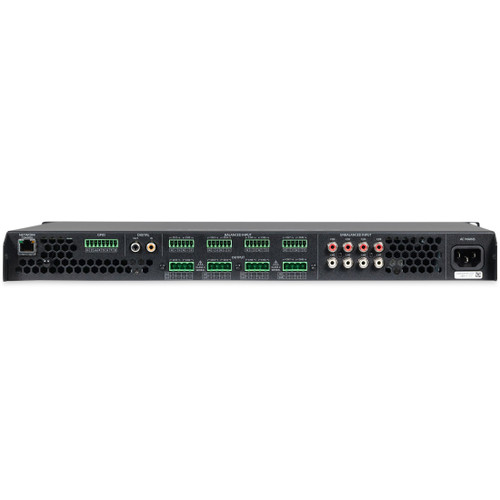

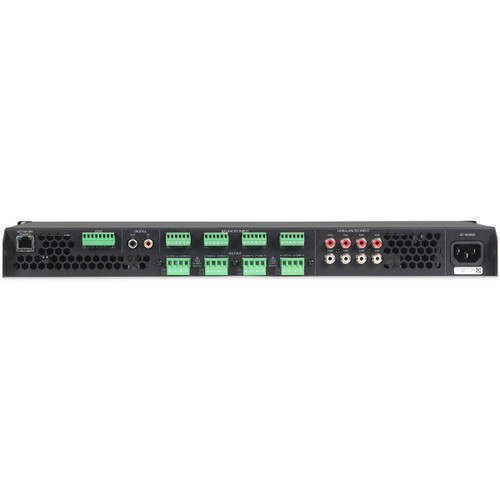

The DZMA8125 is a true all-in-one commercial audio solution, combining a digital mixer, multi-channel power amplifier, and advanced DSP processing into a single device. Audio can be routed into Zones A–H, then assigned to outputs based on system needs. With eight balanced Euroblock inputs, eight unbalanced RCA inputs, and configurable speaker outputs, the DZMA8125 supports a wide range of source and loudspeaker configurations.
Its flexible architecture makes it well-suited for applications such as multi-zone background music, paging, sound masking, media playback, and mobile sound systems, without the complexity of stacking multiple components.
The DZMA8125 features a powerful DSP engine with fully parametric 10-band EQ, dynamics processing, routing, and speaker management. Speaker presets can be created, saved, and loaded per channel, allowing different speaker models, or combinations of satellites and subwoofers, to be optimized independently across zones.
Pre-configured profiles for Pure Resonance Audio speakers are included, speeding up setup while ensuring consistent, high-quality performance. All DSP settings are easily accessible through a clear signal-flow layout from Inputs to Zones to Outputs.

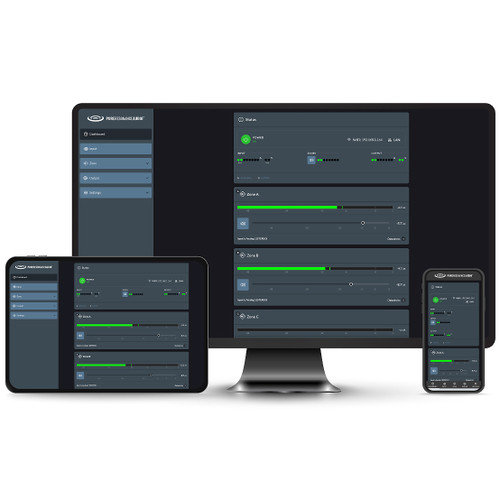

Unlike systems that rely on installed software, the DZMA8125 uses a built-in browser-based user interface accessible from any computer, tablet, or smartphone. Configuration can be completed via Ethernet or the built-in WiFi hotspot, with secure login options to prevent unauthorized access.
The Dashboard provides real-time system status, zone controls, and front-panel indicators at a glance. Consistent page layouts, clearly labeled controls, and a logical directory structure eliminate steep learning curves, allowing installers and integrators to spend less time programming and more time delivering projects efficiently.
Network-based access also simplifies service and troubleshooting, enabling technicians to log in over the local Ethernet or WiFi network to make adjustments without installing software or directly accessing the rack.
For applications that require local user control, the DZMA8125 supports DZC digital zone controllers, available in black or white and sold separately. These wall-mounted controllers allow users to adjust volume and zone settings without accessing the main DSP interface, making them ideal for restaurants, offices, hospitality spaces, and other shared environments.
DZC controllers integrate seamlessly with the DZMA DSP architecture, providing reliable, intuitive zone control while preserving system security and overall DSP programming.
| Total Power Output | 1000W |
|---|---|
| Rated Power Output | 8 x 125W @ 4/8Ω 4 x 250W @ 70/100V* *100V line mode is @ -1 dB (≈ 90V) |
| Power Ratings | 1% THD @ 120Vac and 230Vac |
| Output Circuitry | UMAC™ Class D - full bandwidth PWM modulator with ultra-low distortion |
| Output Voltage | 70Vp / 140Vpp (unloaded) Bridged: 140Vp / 280 Vpp (unloaded) |
| Frequency Response (±0.8 dB) | 20Hz - 20kHz (8Ω load, 3 dB below rated power) |
| Distortion (THD+N) | |
| Signal-to-Noise (S/N) Ratio | >106 dB (A-weighted, 20Hz - 20kHz, 8Ω load) |
| Indicators | Status, Input, Output, Network, Wi-Fi |
| Protection | Short-Circuit, DC, Undervoltage, Temperature, and Overload |
| Power Consumption | 300W |
| Standby Consumption | |
| Power Supply | UREC™ universal mains switch-mode power supply with Power Factor Correction (PFC) and standby converter |
| Operating Temperature | 0-40°C |
| Dimensions (H x W x D) | 1.7" (44 mm) x 17.3" (220 mm) x 12.6" (319 mm) |
| Weight | 8.4 lbs (3.8 kg) |
| Shipping Weight | 11.68 lbs (5.3 kg) |
