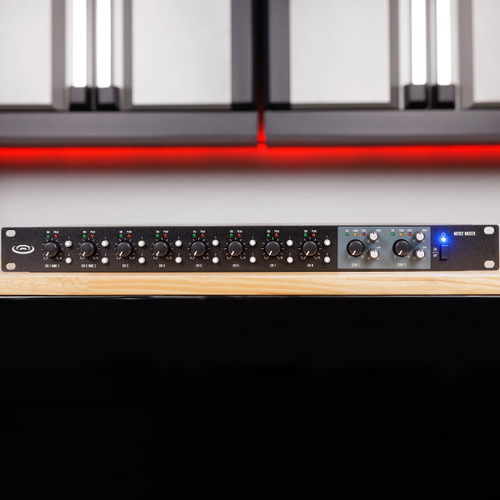

The Pure Resonance Audio MX82 8-channel multi-zone audio mixer is a versatile and space-efficient audio solution catered to the demands of professional and commercial installations. Housed in a compact 1U rack-mountable chassis, this rack mount mic/line mixer features two distinct audio zones and an impressive eight mixing channels with easy-to-use controls while conserving valuable rack space. Whether in a complex installation or a live sound setup, the MX82 can seamlessly integrate microphone and line-level audio sources over one or two output zones, providing a flexible and reliable solution for a variety of applications.
Designed to streamline your audio setup, the MX82 offers exceptional flexibility. The two audio zones include 2-band EQ, external mute connectors, and stereo or mono outputs. Channels one and two are specially designed with microphone inputs featuring 3-band EQ, phantom power, and priority capability. The MX82 boasts another six balanced inputs to effortlessly connect various line-level sources in stereo or mono. For added convenience and functionality, the MX82 is also equipped with an RJ45 remote mic input with audio ducking and paging zone selection (for use with the MX8-PM microphone) and a dedicated priority input, enabling easy integration with independent alarm systems.
The MX82 commercial audio mixer combines adaptability with user-friendly controls, making it a dependable go-to solution. The intuitive front interface provides volume controls, tone adjustments, and protection indicator lights for both output zones. All eight channels feature a dedicated volume control dial, indicator lights, and simple-to-use zone selection to assign each channel's audio to a specific output. With its versatile design, intuitive controls, and multiple attributes, the Pure Resonance Audio MX82 mixer is ideal for enhancing your audio experience and unlocking the full potential of your sound system.
| Input Sensitivity / Impedance | Mic Input (CH 1-2): -50 dB~ -6 dB / 20k Ω Balanced Mono Line Input (CH 1-6): -20 dB~ +4 dB / 20k Ω Balanced Stereo/Mono Remote Mic Input: RJ45 Priority Input: 0 dB / 600Ω Balanced |
|---|---|
| Output Level / Impedance | 0 dB / 600 Ω Balanced Stereo/Mono |
| Phantom Power Supply | CH 1-2 option |
| Frequency Response | 20Hz - 20kHz ±1 dB |
| Distortion (THD) | < 0.01% |
| Signal-to-Noise (S/N) Ratio | > 90 dB |
| Priority Ducking | > 70 dB |
| Equalization | Input: High: 12 kHz ± 15 dB / Mid: 2.5 kHz ± 15 dB / Low: 80 Hz ± 15 dB Output: High: 10 kHz ± 15 dB / Low: 100 Hz ± 15 dB |
| Indicator | Zones 1-2: Signal, -10 dB, and clipping for output channel CH 1-6: Signal and clipping |
| Power | AC 100-240V, 50/60Hz / DC24V |
| Dimensions (H x W x D) | 1.73" (44 mm) x 19" (482 mm) x 12.6" (320 mm) |
| Weight | 8.16 lbs (3.7 kg) |
