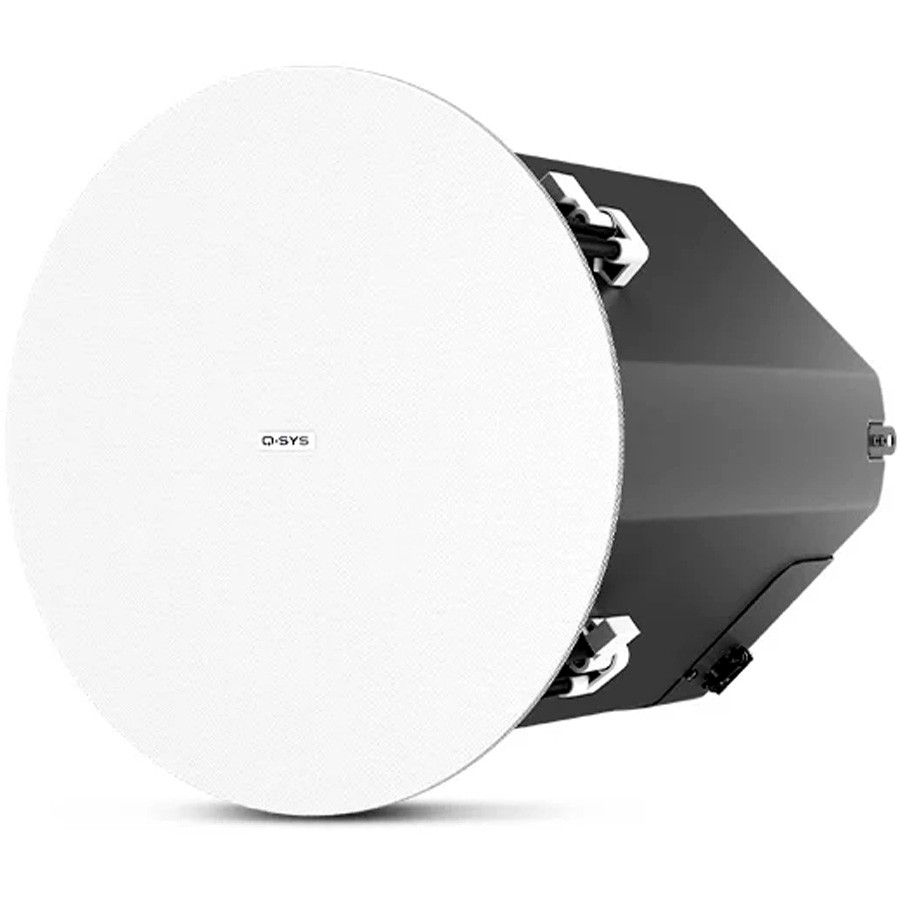

QSC AD-C8T-SWZB AcousticDesign 8" Ceiling Mount Subwoofers

The AD-C8T-SWZB is an 8-inch ceiling subwoofer featuring a sleek, bezel-less design and consistent tonal characteristics across the entire AcousticDesign™ Series, including surface, ceiling, and pendant models. It utilizes a Directivity Matched Transition™ (DMT) waveguide for smooth, even frequency response across the coverage area. Installation is streamlined with a snap-fit magnetic grille and a 3x double-stepped, long-travel dog-ear blind mount system. Intrinsic Correction™ voicings are available via the Q-SYS Platform, including CX-Q amplifiers. Additional features include a blemish-free removable logo, a removable conduit cover plate (also available as a pre-install wiring accessory), and UL1480 and UL2043 certifications. The subwoofer is available in white (RAL 9003), with an optional black grille accessory sold separately.

Features

Features

8" ceiling subwoofer with bezel-less design
Consistent tonal characteristics across the entire AcousticDesign Series for surface, ceiling, and pendant applications
DMT (Directivity Matched Transition™) waveguide ensures smooth, uniform frequency response over the coverage area
Snap-fit magnetic grille

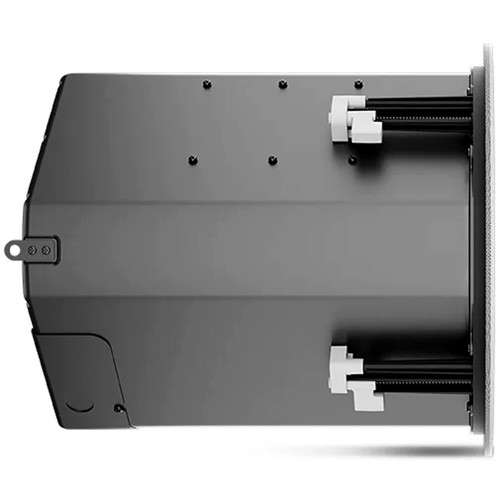

3x double stepped, long travel dog-ear blind mount system
Intrinsic Correction™ voicings available via the Q-SYS Platform including CX-Q amplifiers
Blemish-free removable logo
Removable conduit cover plate, also available as accessory for pre-install wiring
UL1480 and UL2043 certified
Available in white (RAL 9003), with black grille accessory sold separately.

Specification

LF Driver	8" (203 mm), 2" (50.8 mm) voice coil, ferrite
Coverage	Omni
Power Rating	Continuous power 250 W @ 8 Ω, rated Power 500 W
Connectors	4-pin 0.2" (5 mm) Euroblock connector with parallel output
Frequency Range (-10 dB)	53 Hz - 195 kHz
Sensitivity (dB)	92.3 dB @ 1 W/ 1 m
Maximum Continuous SPL	113 dB
Maximum Peak SPL	125 dB
Rated Bypass Impedance	8 Ω
Transformer Taps (70V/ 100V)	25 W, 50 W, 100 W, 200 W / 50 W, 100 W, 200 W
Enclosure Material	ABS baffle on powder coated steel back can
Safety Agency	UL1480A, UL2043, NFPA 90A, NFPA70 suitable for use in air handling spaces. ROHS, CE compliant. Baffle meets UL94-V0 flammability rating; in accordance with IEC60849 / EN60849 systems.
Included Accessories	Tile rails & screws, tile rings, cardboard cutout templates, wire connector, white grille
Cut-Out Dimensions (Dia)	12" (305 mm)
Dimensions (Dia x H)	13.5" (342.9 mm) x 13.75" (349.25 mm)
Shipping Dimensions (H x W x D)	19.5" (495.3 mm) x 17.5" (444.5 mm) x 32" (812.8 mm)
Net Weight (Individual)	22.4 lbs (10.1 kg)
Shipping Weight (Pair)	66.9 lbs (30.3 kg)
