QSC AD-C8T-ZB AcousticDesign 8" 2-Way Zero-Bezel In-Ceiling Speakers

The AD-C8T-ZB is an 8-inch ceiling loudspeaker with a sleek, bezel-less design that complements modern spaces. It delivers consistent tonal characteristics across the entire AcousticDesign™ Series, whether used in surface, ceiling, or pendant applications. The Directivity Matched Transition™ (DMT) waveguide ensures smooth, uniform frequency response throughout the coverage area. Installation is simple with a snap-fit magnetic grille and a 3x double-stepped, long-travel dog-ear blind mount system. It supports Intrinsic Correction™ voicings via the Q-SYS Platform, including CX-Q amplifiers, for optimal performance. Additional features include a blemish-free removable logo, a removable conduit cover plate for pre-install wiring, and UL1480 and UL2043 certifications. The speaker comes in white (RAL 9003), with an optional black grille accessory available separately.

Features

Features

8" ceiling loudspeaker with bezel-less design
Consistent tonal characteristics across the entire AcousticDesign Series for surface, ceiling, and pendant applications
DMT (Directivity Matched Transition™) waveguide ensures smooth, uniform frequency response over the coverage area

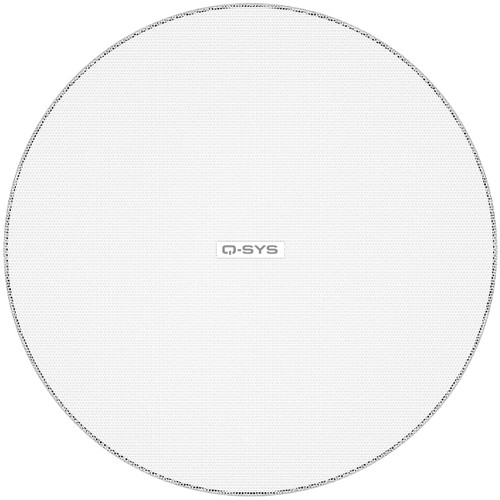

Snap-fit magnetic grille

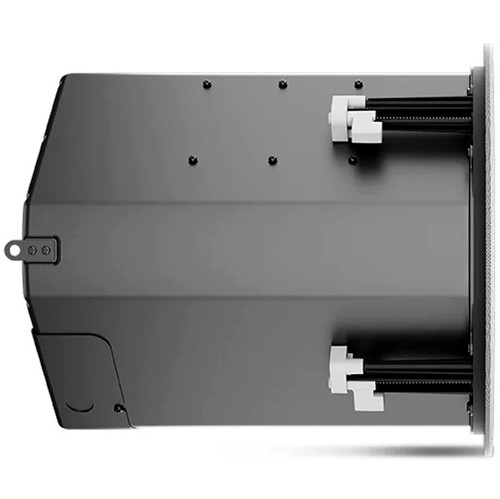

3x double stepped, long travel dog-ear blind mount system
Intrinsic Correction™ voicings available via the Q-SYS Platform including CX-Q amplifiers
Blemish-free removable logo
Removable conduit cover plate, also available as accessory for pre-install wiring
UL1480 and UL2043 certified
Available in white (RAL 9003), with black grille accessory sold separately.

Specification

Connectors	4-pin 0.2" (5 mm) Euroblock connector with parallel output
LF Driver	8" (203 mm), 2" (50.8 mm) voice coil, ferrite
HF Driver	Coaxial compression driver, 1.5" (38.1 mm) voice coil
Coverage	90° conical DMT
Power Rating	Continuous power 200 W @ 8 Ω, rated Power 400 W
Frequency Range (-10 dB)	58 Hz - 20 kHz
Sensitivity (dB)	92.5 dB @ 1 W/1 m
Maximum Continuous SPL	114 dB
Maximum Peak SPL	126 dB
Rated Bypass Impedance	8 Ω
Transformer Taps (70V/ 100V)	25 W, 50 W, 100 W, 200 W / 50 W, 100 W, 200 W
Enclosure Material	ABS baffle on powder coated steel back can
Grille Material	Powder coated steel
Safety Agency	UL1480A, UL2043, NFPA 90A, NFPA70 suitable for use in air handling spaces. ROHS, CE compliant. Baffle meets UL94-V0 flammability rating; in accordance with IEC60849 / EN60849 systems.
Included Accessories	Tile rails & screws, tile rings, cardboard cutout templates, wire connector, white grille
Cut-Out Dimensions (Dia)	12" (305 mm)
Dimensions (Dia x H)	13.5" (342.9 mm) x 13.75" (349.25 mm)
Shipping Dimensions (H x W x D)	19.5" (495.3 mm) x 17.5" (444.5 mm) x 32" (812.8 mm)
Net Weight (Individual)	23.7 lbs (10.75 kg)
Shipping Weight (Pair)	69.5 lbs (31.5 kg)
