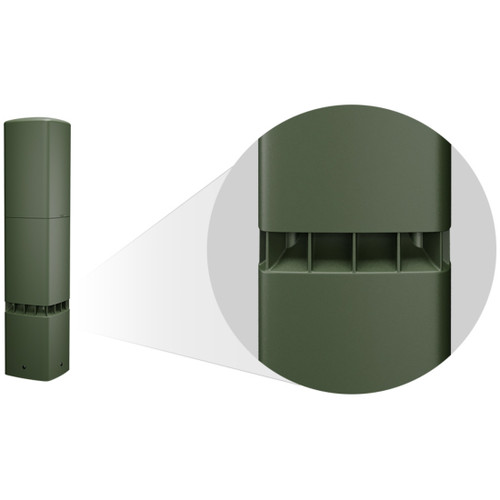

QSC AD-DWL.SUB 5.25" Direct Weather Landscape Subwoofer

QSC AD-DWL.SUB 5.25" Direct Weather Landscape Subwoofer

Name: QSC AD-DWL.SUB 5.25" Direct Weather Landscape Subwoofer
Brand: QSC Audio
SKU: QSC-AD-DWL.SUB
Price: 785 USD
Availability: InStock

Write a Review

Part #:

AD-DWL.SUB

Model #:

AD-DWL.SUB

Current Stock:

MSRP: $785.99

$785.00

Availability: Usually arrives in 5-9 business days.

Quantity:

Adding to cart… The item has been added

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

All AcousticDesign™ Series Direct Weather models address the variabilities of outdoor environments with an elevated bollard design, allowing sound to travel above obstructions for an optimal listener experience. The companion subwoofer elevates the sound profile of outdoor environments and supports easy installation with a common base support footprint.

Description

QSC AD-DWL.SUB 5.25-inch Direct Weather Landscape Subwoofer

Optimal Outdoor Sound Experience

Impact Resistance

Featuring direct-to-concrete or in-earth base supports for permanent installation as well as tamper-resistant screws and a rugged exterior, the AcousticDesign™ Series Direct Weather family mitigates damage from accident or attempted tampering.

All Weather Durability

With an Ingress Protection (IP) Rating of IP55, durable polypropylene/fiberglass construction and stainless-steel hardware, this series is built to withstand the long-term outdoor exposure.

Advanced QSC Loudspeaker Voicings

To further enhance performance and speed of install with optimum result, advanced voicing filter sets using QSC Intrinsic Correction™ techniques are available via Q-SYS or CXD Series amplifier platforms for a complete QSC systems solution.

Features

5.25" (135 mm) in weather-resistant cone woofer
Reliable 120W 70 / 100V transformers with 16 Ω bypass
Maximum peak SPL 112 dB (16 Ω bypass)
Includes direct-to-concrete mounting collar (burial mounting option via AD-DWL.BASE accessory)
Tamper resistant stainless-steel hardware
Rugged F1-F2 UL Rated polypropylene/fiberglass construction exterior
Unobtrusive green color and style allows it to blend with the environment (or paintable exterior allows for further customization)
Meets Ingress Protection (IP) rating of IP-55 for dust and splash resistance

Specifications

Effective Frequency Range	48 Hz - 200 Hz
Rated Noise Power	160W
Coverage Angle (-6 dB)	Omni
Maximum Continuous SPL	106 dB
Maximum Peak SPL	112 dB
Rated Impedance	16 Ω
Transformer Taps	12.5W, 25W, 50W, 100W / 25W, 50W, 100W
Transducer	(2) 5.25" (135 mm) weather resistant cone woofer, ferrite magnet, rubber surround
Input Connector Type	Wire pig-tail, blunt
Enclosure Material	Glass-Filled polypropylene, F1-F2 UL Rated
Grille Material	Polyester fabric on polycarbonate frame
Mount	Direct to concrete
Ingress Protection	IP - 55
Testing	Exceeded MilSpec819 standard for humidity, salt spray, temperature, and UV Passed Mil-STD-202f standard for salt spray (specific to electrical components)
Included Accessories	Direct-to-concrete mounting collar
Dimensions (H x W x D)	30.16" (766 mm) x 6.46" (164 mm) x 6.46" (164 mm)
Net Weight	10.36 lbs (4.7 kg)
