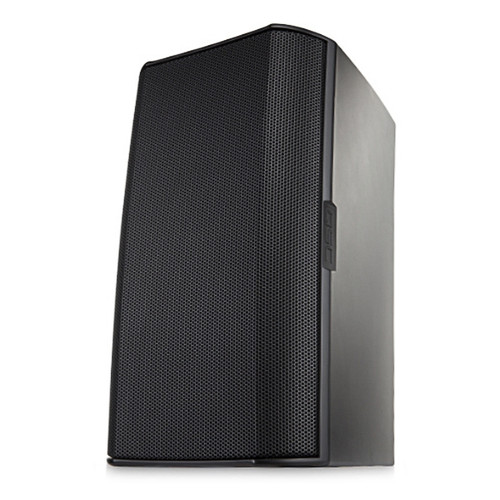

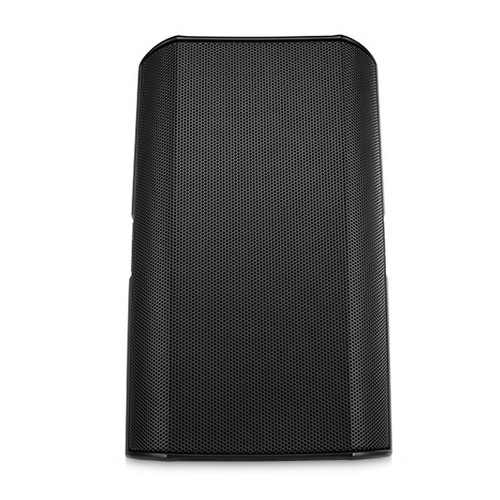

QSC AD-S5T AcousticDesign™ 5.25-inch Wall Mount Loudspeakers
The QSC AcousticDesign™ AD-S5T is a surface mounted 70/100 V, 5.25" two-way loudspeaker system, ideally suited for a wide variety of foreground and background sound reinforcement applications.
AcousticDesign™ series offers integrators a premium quality installed sound solution where performance, coverage, and aesthetics are paramount. Combined with unprecedented ease-of-installation and high weather resistance, the AcousticDesign™ Series provides integrators a versatile and confident solution.
The AD-S5T features a high quality 5.25" weather treated paper cone woofer on a 1" voice coil. A carefully selected 1" silk dome tweeter with a 1" voice coil perfectly matches the sensitivity and performance of the woofer for outstanding full range reproduction.
Consistent and even 115° asymmetric (conical) coverage is realized by means of DMT™ (Directivity Matched Transition). This innovation matches the high frequency wavegide to the woofer coverage at the crossover point, resulting in a coherent transducer transition and improved off axis response.
To maintain this frequency response, the AD-S5T utilizes a variable tap 60 watt low saturation and low loss 70/100 V transformer with 8 Ω bypass, accessible via a rotary selector located on the enclosure back under a weather grommet for improved weather resistance.
All AcousticDesign™ Series surface-mount loudspeakers are housed in rugged ABS enclosures for long-term durability. Sealed input panel covers and powder coated aluminum grilles add weather resistance, exceeding IEC60529 IP-54 for dust and splash resistance.

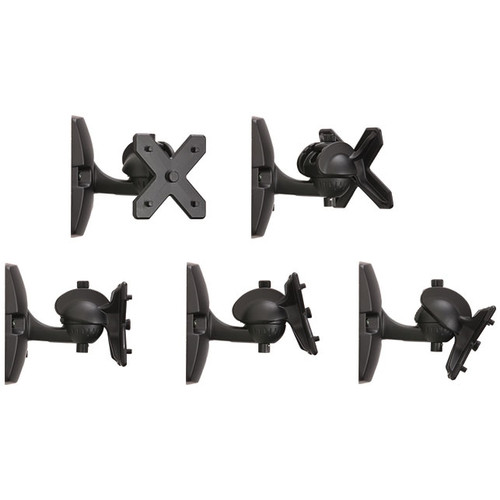

Installers will appreciate the award winning X-Mount™ system, included with each full range AcousticDesign™ model. This ingenious mounting solution achieves unprecedented ease-of-installation in either horizontal, vertical, wall, or ceiling deployments. Knurled surfaces at the pivot planes ensure the load will not drift or sag over time. Articulation marks allow preconfiguration of the X-Mount™ while on the ground with no special tools required. Once secure, the loudspeaker installs in seconds, allowing the installer to work safer, smarter, and faster with repeatable results.
To further enhance performance and speed of install with optimum result, advanced voicing filter sets using QSC Intrinsic Correction™ techniques are obtainable through either Q-SYS processing or CXD Series amplifier platforms.
Sensitive to aesthetic demand, the AcousticDesign™ Series feature a stylish appearance free of obtrusive logo adornments. Complimenting adjacent product families, AcousticDesign™ surface loudspeakers are available in QSC standard black (RAL 9011) or white (RAL 9010) and may be painted to match any decor
