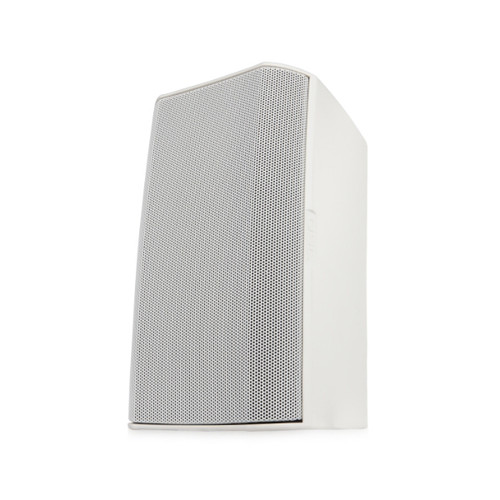

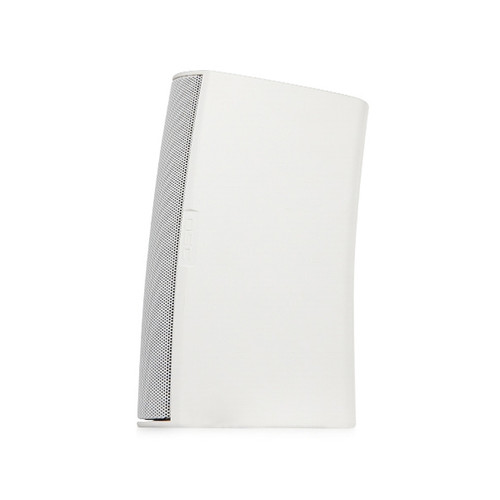

QSC AD-S6 AcousticDesign 6.5" Surdace Mount Loudspeakers - White
The QSC AcousticDesign™ AD-S6 is a surface mounted 16 ohm, 6.5-inch two-way loudspeaker system, ideally suited for a wide variety of foreground and background sound reinforcement applications. AcousticDesign™ series offers integrators a premium quality installed sound solution where performance, coverage, and aesthetics are paramount. Combined with unprecedented ease-of-installation and high weather resistance, the AcousticDesign™ Series provides integrators a versitile and confident response.
The AD-S6 features a high quality 6.5-inch weather treated paper cone woofer on a 1.5inch voice coil. A carefully selected 1-inch silk dome tweeter with a 1-inch voice coil perfectly matches the sensitivity and performance of the woofer for outstanding full range reproduction. Consistent and even 105° axisymmetric (conical) coverage is realized by means of DMT (Directivity Matched Transition™). This innovation matches the high frequency wavegide to the woofer coverage at the crossover point, resulting in a coherent transducer transition and improved off axis response.
The AD-S6 has a 16 ohm impedance making it ideal for distributed systems, without the need of a transformer, that require optimal sonic performance. All AcousticDesign Series surface-mount loudspeakers are housed in rugged ABS enclosures for long-term durability. Sealed input panel covers and powder coated aluminum grilles add weather resistance, exceeding IEC60529 IP-54 for dust and splash resistance. Installers will appreciate the award winning X-Mount™ system, included with each full range AcousticDesign™ Series model.
This ingenious mounting solution achieves unprecedented ease-of-installation in either horizontal, vertical, wall, or ceiling deployments. Knurled surfaces at the pivot planes ensure the load will not drift or sag over time. Articulation marks allow preconfiguration of the X-Mount™ while on the ground with no special tools required. Once secure, the loudspeaker installs in seconds, allowing the installer to work safer, smarter, and faster with repeatable results.
To further enhance performance and speed of install with optimum result, advanced voicing filter sets using QSC Intrinsic Correction™ techniques are obtainable using the Q-SYS Platform including CXD Series amplifiers for a complete QSC systems solution. Sensitive to aesthetic demand, the AcousticDesign Series feature a stylish appearance free of obtrusive logo adornments. Complimenting adjacent product families, AcousticDesign surface loudspeakers are available in QSC standard black (RAL 9011) or white (RAL 9010) and may be painted to match any decor. To assist in successful systems integration, complete EASE, CAD, and BIM files are available for online download at QSC.com.
