| Display |
10" (254 mm) diagonal, 1024 x 600 pixel, color TFT, capacitive multi-touch sensing |
| Inputs (Mic/Line) |
32 Total
-24 Mic/Line, 20 XLR, 4 XLR combo
- 6 Line, balanced, 1/4" TRS + top panel 1/8" (3.5 mm) stereo
- 2 Stereo USB / MP3 playback |
| Input (Talkback) |
1 XLR (48 v available) |

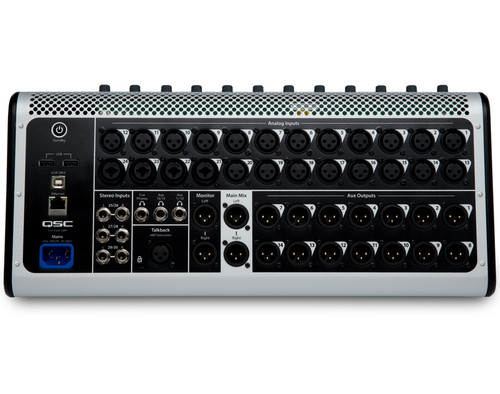

| Outputs |
Main L/R: XLR line-level
14 Aux: XLR, line-level; May be paired for stereo
Stereo In-Ear Monitor (2): TRS, (16 ohm min. impedance) from Auxes 11/12 and 13/14
Stereo Cue: TRS, (line or headphone, 16 ohm min. impedance)
Monitor L/R: XLR, line-level |
| Digital Connections |
2 USB A connector, 1 USB B connector, 1 RJ-45 (connection for Wi-Fi router) |
| Mic & Line Input Channel Processing |
4-band Parametric EQ with Hi/Low Shelving Option, Variable 24 db/octave HPF and LPF, Gate, Compressor, Delay (100 msec max) |
| Output Channel Processing |
1/3 octave GEQ, 6-band Parametric EQ, Variable High- and Low-Pass FIlters, 12-band Variable Notch Filters; Limiter; Delay |
| Sub Group Processing |
6-band Parametric EQ with High- and Low-Pass Filters, Limiter |
| Recording / Playback |
32 x 32 tracks direct to hard drive or DAW (Core Audio interface to Mac OS); Stereo MP3 playback |
| Groups |
Eight DCA Groups (with mutes), Eight Mute Groups, Eight Sub Groups (may be linked in stereo pairs) |
| Cue |
Selectable. AFL, PFL, Solo in Place |
| Effects |
6 Simultaneous, Professional Effects Engines including Reverb, Echo, Delay, Chorus, Pitch Shift
1 Pitch Correct (assignable to any mono input channel) |

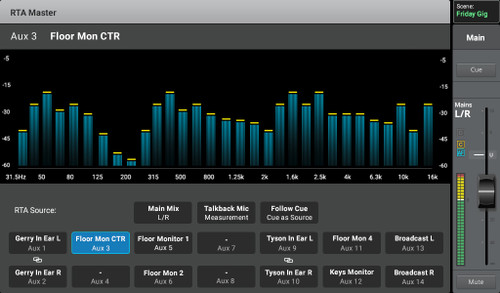

| Real Time Analyzer |
2 x 1/3 octave. 1 assigned to the selected channel, 1 with user selectable source |
| Preset Memory |
99 User Scenes, 120 Factory Presets, 99 User Presets |
| External Control |
TouchMix Control App for iPad® and Android tablets controls all mixer functions via Wi-Fi. App runs on iOS® and Android smartphones |
| Wi-Fi |
Requires user supplied USB Wi-Fi dongle or external ethernet Wi-Fi router (recommended) |
| Line Voltage / Input Power Requirements |
85W, 100-240 VAC, 50-60 Hz |
| Sampling Frequency |
Selectable 44.1 kHz or 48 kHz |
| THD |
|
| Frequency Response |
20 Hz-20 kHz +/-0.5 dB, any input to any output |
| Dynamic Range |
105 dB |
| Equivalent Input Noise |
-126 dBu |
| Residual Output Noise |
-86 dBu |
| Crosstalk |
-80 dB |
| S/N Ratio |
-94 dB |
| Gain |
Microphone inputs: 75 dB (60 dB analog, 15 dB digital) |
| Maximum Input Level |
+16 dB (XKR mic/line inputs), +26 dB ( TRS mic/line inputs), +24 dBu (TRS line inputs), 0 dBv (top panel 1/8" stereo input) |
| Maximum Output Level |
+22 dBu (all line-level outputs) |
| Phantom Power |
48 v, all mic and talkback inputs, individually switchable per input |
| Optional Accessories |

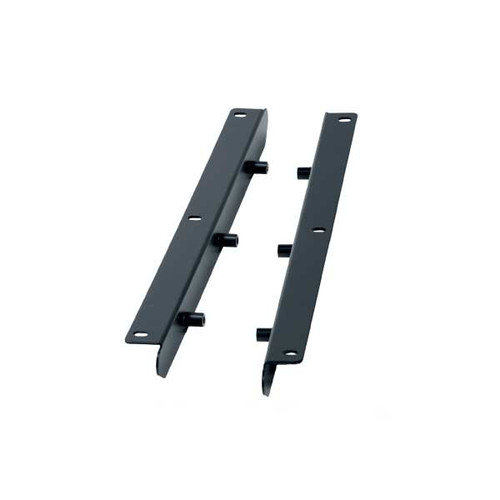

TouchMix-30 Pro Tote ; TouchMix-30 Pro Dust Cover; TouchMix-30 Pro Rack Kit; TouchMix-30 Pro Tablet Support Stand |
| Regulatory Approvals |
UL, CE, FCC (Class B), RoHS |
| Dimensions (H x W x D) |
7.5" (190.5 mm) x 16.9" (429.3 mm) x 18.1" (459.7 mm) |
| Shipping Dimensions (H x W x D) |
12" (304.8 mm) x 23.7" (602 mm) x 19.5" (495 mm) |
| Weight |
17.5 lbs (7.9 kg) |
| Shipping Weight |
25.2 lbs (11.4 kg) |
