QSC Auditorium Sound System with QSC E Series Speakers and Subwoofers, Yamaha 16-Channel Mixer and Dual Wireless Microphone System (Discontinued Components)

By QSC Audio

QSC Auditorium Sound System with QSC E Series Speakers and Subwoofers, Yamaha 16-Channel Mixer and Dual Wireless Microphone System (Discontinued Components)

Name: QSC Auditorium Sound System with QSC E Series Speakers and Subwoofers, Yamaha 16-Channel Mixer and Dual Wireless Microphone System (Discontinued Components)
Brand: QSC Audio
SKU: ADSS-4E112MG16XU288
Price: 9772.56 USD
Availability: OutOfStock

Write a Review

Part #:

ADSS-4E112MG16XU288

Model #:

ADSS-4E112MG16XU288

Current Stock:

Availability: Some products in this system are discontinued. In-stock alternatives may be available.

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

This auditorium sound system with QSC E Series speakers is a pre-configured versatile full range loudspeaker system for your school auditorium or any small to medium auditorium venue.

Description

Inside the Design

This auditorium sound system with QSC E Series Loudspeakers is a pre-configured versatile full-range loudspeaker system for your school auditorium or any small to medium auditorium venue. E Series loudspeakers will perform very well with any quality, professional power amplifier - but by taking advantage of the complete E Series entertainment system, more performance and options are available. When used with the included QSC GXD 8 amplifiers, these E Series loudspeakers can take advantage of the advanced DSP. With integral signal processing and outstanding performance, the GXD amplifiers boast professional audio quality and long-term reliability. This system also includes the high-performance Samson Concert 288 All-In-One dual wireless system, which takes the worry out of wireless and includes a handheld, lapel and headset microphone. Also included is the Yamaha MG16XU 16-channel analog mixer that is well-suited for portable rigs or permanent installations with its outstanding sound quality and rich features, including onboard digital effects, switchable phantom power, a pad switch, one-knob compressors, EQ, plenty of I/O, and LED metering, this mixercan take on just about any task you throw at it. Utilizing many state-of-the-art features from Yamaha's high-end consoles, the MG16XU is ready to work for you. Offering easy setup, flawless operation, and premium sound, this sound system package is the ideal audio solution for any auditorium.

Sound System Features:

Easy to set up and simple to operate
High output, professional-quality sound
Advanced DSP tunings and options with the QSC power amplifiers
16-channel mixing console with high-grade effects
Dual-channel, high-performance UHF wireless system with different mic options

About the System Components

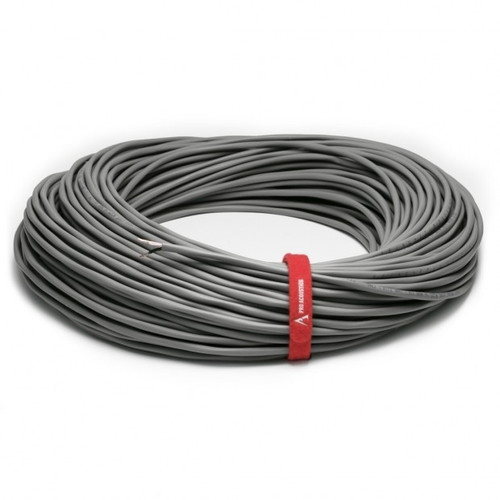

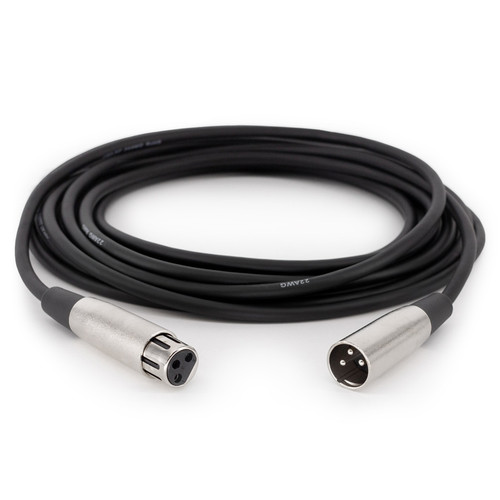

This Pro Acoustics designed sound system includes four QSC E112 12" passive loudspeakers and two QSC E118SW 18" subwoofers, offering powerful sound. Also included are two QSC GXD 8 4500W power amplifiers with DSP, a Yamaha MG16XU 16-channel mixing console, and the Samson Concert 288 all-in-one dual-channel wireless system with a handheld, lapel and headset microphone. We've also included all the cables and wiring you will need to install this auditorium PA sound system.

Some products in this sound system design are now discontinued. Please call for replacements.

Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

Features

QSC E112 E Series 12" 2-Way Passive Loudspeakers:

High output, professional quality sound with 400W continuous power
Advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers or TouchMix digital mixers
E Series Entertainment System DSP Tunings are now available for PLD, CXD and GXD processing amplifiers:
For PLD/CXD visit Amplifier Navigator Software
For GXD visit the GXD Firmware Updater
Rugged tour-grade textured paint
Foam-lined perforated steel grill
Available U-Style Yoke and M8 rigging kit for permanent installation
Dual angle pole socket

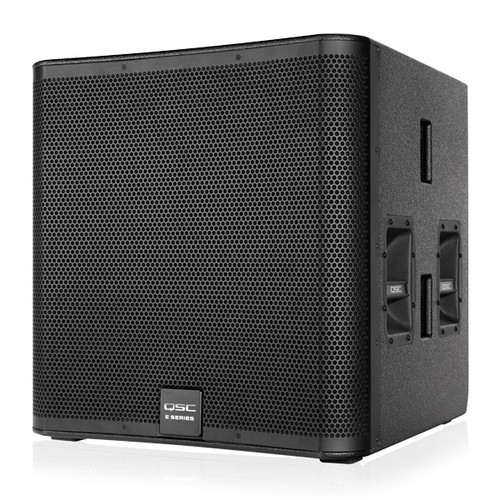

QSC E118SW E Series 18" Subwoofers:

High output, professional quality sound with 800W continuous power
Advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers or TouchMix digital mixers
E Series Entertainment System DSP Tunings are now available for PLD, CXD and GXD processing amplifiers:
For PLD/CXD visit Amplifier Navigator Software
For GXD visit the GXD Firmware Updater
Rugged tour-grade textured paint
Foam-lined perforated steel grill
E18SW includes speaker pole

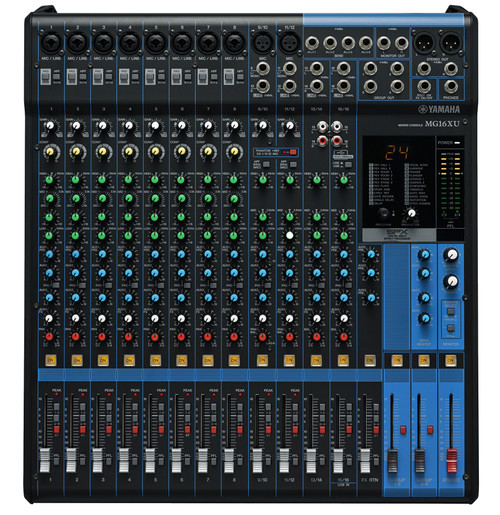

Yamaha MG16XU 16-Channel Mixing Console:

16-Channel Mixing Console
Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo)
4 GROUP Buses + 1 Stereo Bus
4 AUX (incl. FX)
“D-PRE” mic preamps with an inverted Darlington circuit
1-Knob compressors
High-grade effects: SPX with 24 programs
24-bit/192kHz 2in/2out USB Audio functions
Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
Includes Cubase Al DAW software download version
PAD switch on mono inputs
+48V phantom power
XLR balanced outputs
Internal universal power supply for world-wide use
Rack Mount Kit Included
Metal chassis

QSC GXD 8 Professional 4500W Power Amplifiers with DSP:

High peak output power with up to 1600W from the GXD 4 and a whopping 4500W from the GXD 8
Power levels matched to the most popular loudspeakers and optimized for maximum real-world headroom into 4Ω and 8Ω speaker systems
Class D output stage with a universal power supply for high performance and efficiency
Extensive and powerful loudspeaker processing built in. Includes high and low-pass filters, 4-band parameteric EQ, limiting, and delay
Large LCD display simplifies amplifier setup and indicates amp status
Inputs: Parallel XLR and 1/4" TRS connectors for compatibility with any source while providing convenient loop-thru capability
Precision rotary encoders for gain and DSP parameter control
Outputs: Professional binding post and NL4 connectors (compatible with NL2) provide for mono and bi-amp speaker connections
Digital limiting automatically protects the amplifier from damage due to temperature rise or overdrive
Adjustable speaker protection to match your loudspeaker’s power and impedance
Front panel LEDs indicate signal presence, input overload, and amplifier clipping
