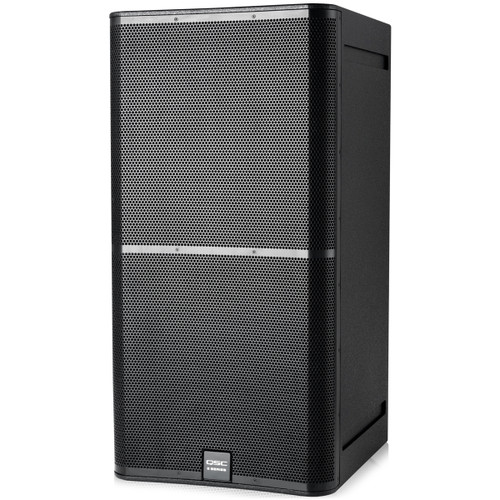

QSC E218SW E Series Dual 18" Passive Subwoofer 1600 Watts (Discontinued)

Part # E218SW
Model # E218SW

The QSC E218sw is a high-performance direct radiation subwoofer with two, 800W, 18" aluminum frame woofers. It's designed to produce crushing low-end for live performance with kick-drum and bass in the PA or for high-level, high-energy dance music.

Description

Details

QSC E218SW 1600W Dual 18" Passive Subwoofer

The E218sw is a high-performance direct radiation subwoofer with two, 800W, 18-inch, aluminum frame woofers. It's designed to produce crushing low-end for live performance with kick-drum and bass in the PA or for high-level, high-energy dance music. For portable applications it includes attachment points for four optional casters. The subwoofer's 4-ohm impedance means that a single cabinet can be optimally powered by a less expensive amplifier.

The E Series is a range of passive loudspeakers offering robust construction, trusted reliability and overall sonic performance beyond expectations. Intended for sound reinforcement in entertainment applications including live performance, DJ and dance music, karaoke and event production, E Series loudspeakers will deliver outstanding results. Building on QSC's proven "Systems" methodology, the E Series loudspeakers' performance is further enhanced when paired with QSC's GXD or PLD amplifiers or with a QSC TouchMix digital mixer, and taking advantage of the on-board DSP and factory-tuned presets. These presets support a variety of applications including live sound reinforcement (with and without subwoofers), stage monitoring, dance music and karaoke.

Features

Features

  • High output, professional quality sound with 1600W continuous power
  • E Series Entertainment System – Advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers or TouchMix digital mixers
  • E Series Entertainment System DSP Tunings are now available for PLD, CXD and GXD processing amplifiers
  • Rugged tour-grade textured paint
  • Foam-lined perforated steel grill
  • Optional Padded Cover for protection during transportation
  • Optional Caster Kit for greater portability
Specification
Configuration2 x 18-inch, subwoofer non powered
Frequency Range (-6 dB)37 Hz - 230 Hz
Frequency Range (-10 dB)32 Hz - 230 Hz
Power CapacityContinuous: 1600W
Peak: 6400W
Sensitivity101 dB, 1 W @ 1 m
Output (Peak SPL @ 1m)136 dB
LF Drivers2 x 457 mm (18-inch) driver with 102 mm (4-inch) voice coil
Cross-OverRecommended 80-120 Hz LPF
Input Connectors2 x NL4
1 x barrier strip
EnclosureRectangular, plywood, black texture paint finish. Four side mounted handles. Rear panel provision for optional 4" casters. Perforated, powder-coated steel grille with foam lining
Dimensions (H x W x D)24.3" (616 mm) x 46.8" (1180 mm) x 25.2" (640 mm)
Net Weight168 lbs (76.4 kg)
Shipping Weight183 lbs (83 kg)
