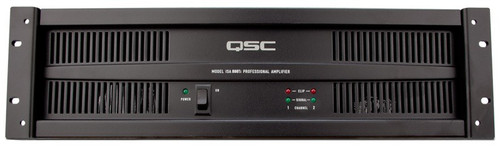

QSC ISA800Ti 2 Channel Power Amplifier (Discontinued)

QSC ISA800Ti 2 Channel Power Amplifier (Discontinued)

Name: QSC ISA800Ti 2 Channel Power Amplifier (Discontinued)
Brand: QSC Audio
SKU: QSC-ISA800Ti
Price: 1640 USD
Availability: OutOfStock

Write a Review

Part #:

ISA800Ti

Model #:

ISA800Ti

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The QSC ISA800Ti 2 Channel Power Amplifier is designed to meet the needs of sound system designers and contractors worldwide. Versatile loading options and a comprehensive set of features make the ISA800Ti a rugged, cost-effective power solution for any permanently installed sound system.

Description

The QSC ISA800Ti 2 Channel Power Amplifier is designed to meet the needs of sound system designers and contractors worldwide. Three models feature isolated 25, 70, and 100 volt outputs for distributed sound systems, while four low impedance models are rated for 2 ohm operation. Versatile loading options and a comprehensive set of features make the ISA Series a rugged, cost-effective power solution for any permanently installed sound system.

Features

Low-impedance outputs plus isolated 25, 70, and 100 volt outputs for distributed audio systems
Rear panel gain controls for tamper resistance; 2-dB detents allow for quick and repeatable settings
XLR and detachable Euro-style input connectors
DataPort V2 for use with DPV2-compatible signal processing accessories (XC-3, SF-3, LF-3) and DSP-3/DSP-4 (with external power supply)
Independent defeatable clip limiters for reduced distortion
Selectable high-pass filters (50 Hz or 75 Hz) protect speakers and prevent speaker transformer saturation
Two-tier Class H complementary bipolar output circuitry reduces AC power draw and waste heat by 40%
Front panel indicators include power, signal, and clip
Covered barrier strip output connectors for safety agency compliance
Automatic on-demand variable-speed fan: quiet normal operation, with maximum cooling when needed
Rear-to-front air flow helps keep equipment racks cool
Stereo, bridge, or parallel operating modes
Comprehensive protection circuitry including DC, infrasonic, thermal overload, and short circuit protection
3-year warranty plus optional 3-year extended service contract

Specifications

Stereo Mode Both Channels Driven
8 Ohms
20 Hz-20 kHz 0.1% THD	450W
4 Ohms
20 Hz-20 kHz 0.1% THD	650W
2 Ohms
1 kHz 1% THD	1200W
XF Output Power, Stereo Mode
70V or 100V
50 Hz-16 kHz 0.5% THD	800W
25V
50 Hz-16 kHz 0.5% THD	500W
Bridged Mono Mode
8 Ohms
1 kHz 0.1% THD	1500W
4 Ohms	1 kHz 1% THD
1 kHz 1% THD	2400W
XF Output Power, Bridged Mono Mode
140V or 200V
50 Hz-16 kHz 0.5% THD	1600W
Signal to Noise (20 Hz-20 kHz)	100 dB
Distortion (SMPTE-IM)	Less than 0.02%
Input Sensitivity @ 8 ohms	1.07v(+2.8 dBu)
Voltage Gain @ 8 ohms	56.2x(35 dB)
Output Circuitry	Class H
Distortion (Typical)	Specifications
20 Hz-20 kHz: 10 dB below rated power	Less than 0.03% THD, 4 ohms and 8 ohms
1.0 kHz and below: full rated power	Less than 0.03% THD, 4 ohms and 8 ohms
Frequency Response 10 dB below rated output power	Direct outputs: -3 dB @ 50 Hz, -0.5 dB @ 20 kHz; XF outputs: 50 Hz-16 kHz, +1/-3 dB
Damping Factor (direct outputs)	Greater than 200 at 8 ohms, ISA 1350 greater than 250
Input Impedance	10 k ohms unbalanced, 20 k ohms balanced
Input Clipping	10 Vrms (+22 dBu)
Cooling	Continuously variable speed fan, back-to-front air flow
Amplifier Protection	Full short circuit, open circuit, thermal, ultrasonic, and RF protection
Power Requirements	120, 230, VAC, 50-60 Hz
Dimensions (H x W x D)	5.25" (133 mm) x 19" (483 mm) x 15.9" (404 mm)
Net Weight	57 lbs (26 kg)
Shipping Weight	63 lbs (28.6 kg)
