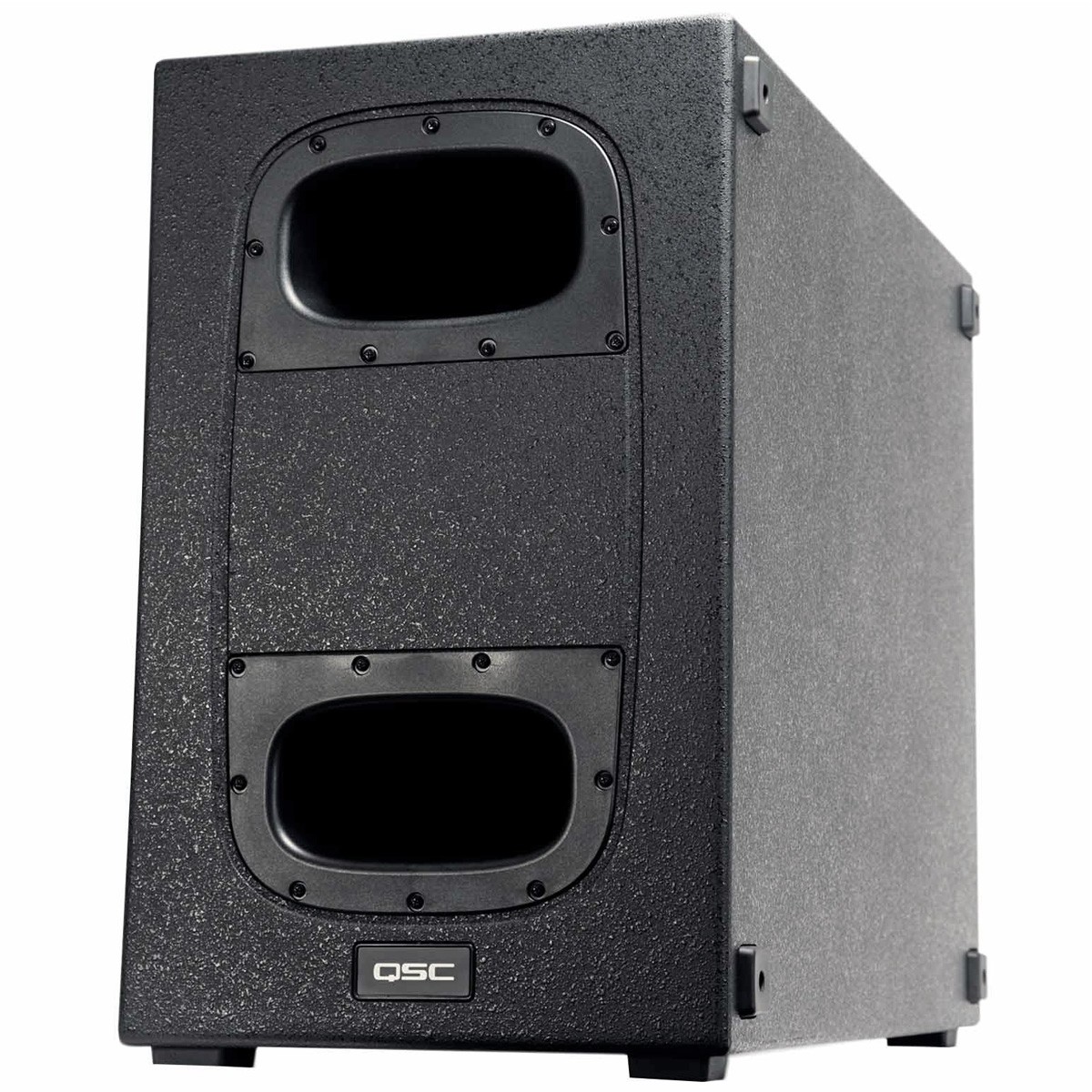

QSC KS212C Dual 12" 3600W Powered Cardioid Subwoofer

Part #:
KS212C
Model #:
KS212C
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The KS212C subwoofer represents the world’s first-in-class single-box powered cardioid subwoofer solution for highly portable entertainment and installation applications.

Description

The KS212C subwoofer represents the world’s first-in-class single-box powered cardioid subwoofer solution for highly portable entertainment and installation applications.

A breakthrough in innovation and design, the 3,600 Watt KS212C subwoofer uniquely provides all the benefits of cardioid deployment in a single, compact enclosure. "Keeping bass in its place" for mobile entertainers, AV production and rental professionals, as well as modestly-sized performance venues, the KS212C subwoofer is unparalleled in its ability to manage low frequencies on the stage, or any application where undesirable low frequency energy needs to be minimized.

Powered by a 3,600 Watt Class D amplifier, processed with the latest DSP technology, and featuring dual 12-inch long excursion drivers each arranged in a 6th order bandpass chamber, these components all combine seamlessly to produce a staggering 15 dB more output at the front of the cabinet than at the rear. Highly portable, the cabinet features comfortable, aluminum handles and four, rear-mounted casters. Two M20 sockets accept a 35mm speaker pole in other horizontal or vertical orientation.

Features

  • 3600 Watt Class D power module
  • Dual 12-inch long excursion drivers; Dual 6th order band-pass design
  • 15 dB SPL attenuation front-to-rear
  • Two M20 threaded sockets (one on top, one on side) accept 35 mm speaker pole
  • Four low-noise, heavy-duty casters

Specifications

Configuration Dual 6th-Order Bandpass Cardioid Subwoofer
LF Transducers 2 x 12-inch (305 mm), Cone
Frequency Response (-6 dB) 44 Hz - 104 Hz
Frequency Range (-10 dB) 39 - 118 Hz
Nominal Coverage Angle 180˚ Cardioid (15 dB rear rejection @ 70 Hz)
Maximum Rated SPL 132 dB @ 1 m (peak)
Amplifier Class D; 2 x 1800 W (peak)
Connectors 2 x Locking XLR/F ¼-inch Combo
2 x XLR/M (Loop-Thru Output)
1 x Locking IEC Power Connector
Included Accessories 4 x Low-Noise, Heavy-Duty Casters
36-inch Speaker Pole
Dimensions (H x W x D) 24.5" (622 mm) x 15.5" (394 mm) x 33.5" (851 mm)
Weight 88.5 lbs (40.1 kg)
Shipping Weight 107 lbs (48.5 kg)
