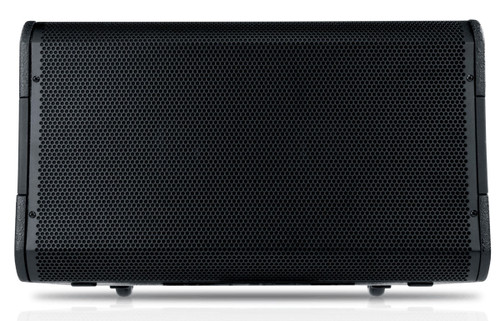

The AcousticPerformance AP-212sw is a premium, high performance, direct radiating dual 12-inch subwoofer designed for use in portable and installed sound applications.

Description

The AcousticPerformance AP-212sw is a premium, high performance, direct radiating dual 12-inch subwoofer designed for use in portable and installed sound applications. The AP-212sw provides exceptional punch while maintaining ample extension so the musically important fundamentals are solidly and accurately reproduced. With a matching profile to the AP-4122m and AP5122m full range models, the AP-212sw is an ideal companion, providing added low frequency extension and musical accuracy to the AcousticPerformance portfolio. The AP-212sw features dual 12-inch woofers reversed mounted on a V-baffle for improved thermal protection and performance. The 15mm Baltic Birch enclosure is finished in an environmentally friendly, waterborne, polymer finish rugged enough for the demands of everyday use while also being field repairable. Internal bracing is employed to eliminate acoustic losses due to panel resonance while maintaining the lightweight enclosures robustness. Ample port area allows free movement of air resulting in minimal turbulence and port distortion. The versatility of the AP-212sw is evidenced by two pole mount options for both vertical and horizontal applications. Furthermore, when horizontal, the AP-212sw has a shallow height, desirable for under riser installs. The AP-212sw includes four integrated handles and an optional caster kit for ease of transport.

Features

  • DMT (Directivity Matched Transition) in 2-way models ensures smooth, coherent power response across the listening plane
  • 3” diaphragm compression driver (1.75" on AP-4122m) delivers a clean and powerful high frequency response
  • Pole cup (AP-5122m and AP-4122m)
  • Two M20 pole attachment points on AP-212sw
  • Clean industrial design with unadorned grilles complement most decors and settings
  • NL4 Speakon connector (two on AP-4122m and AP-212sw) and covered barrier strip terminals (except AP-4122m and AP-212sw)
  • Bi-amp / passive switchable (passive only on AP-4122m), except AP-212sw subwoofer
  • Constructed from 15-ply Baltic birch plywood (15 mm Baltic birch plywood on AP-4122m and AP-212sw)
  • 16-gauge powder coated steel grilles
  • Available in black (RAL 9011) and white (RAL 9010) (black only on AP-4122m and AP-212sw)
  • Complete EASE, CAD & BIM information available online

Specifications

Frequency Response 35 Hz - 250 Hz
Rated Noise Power / Voltage 600 watts / 49 volts rms
Broadband Sensitivity 93 dB SPL
Coverage Angle N/A
Directivity Factor (Q) N/A
Directivity Index (Di) N/A
Recommended Crossover N/A
Maximum Spl At 1 M (Passive) 122 dB continuous
128 dB Peak
Rated Impedance
HF Transducer N/A
LF Transducer Two 305 mm (12-Inch) Weather Resistant Cone Woofers with 64 mm (2.5 in) Voice Coil
Optional Accessories Subwoofer Caster Kit
Speaker Pole M2035-36 (Horizontal)
Speaker Pole M2035-26 (Vertical)
Input Connector Two NL4 Crossed
Enclosure Material A: Sub 1+/-, Thru 2+/-
B: Thru 1+/-, Sub 2+/-
Attachment Points 15 mm Baltic Birch Plywood
Two M20 Pole Attachment Points
Color Black (RAL 9011)
Grille 16-gauge Powder Coated Steel
Dimensions (H x W D) 26" (660 mm) x 15" (381 mm) x 24" (610 mm)
Net Weight 65.4 lbs ( 30.4 kg)
