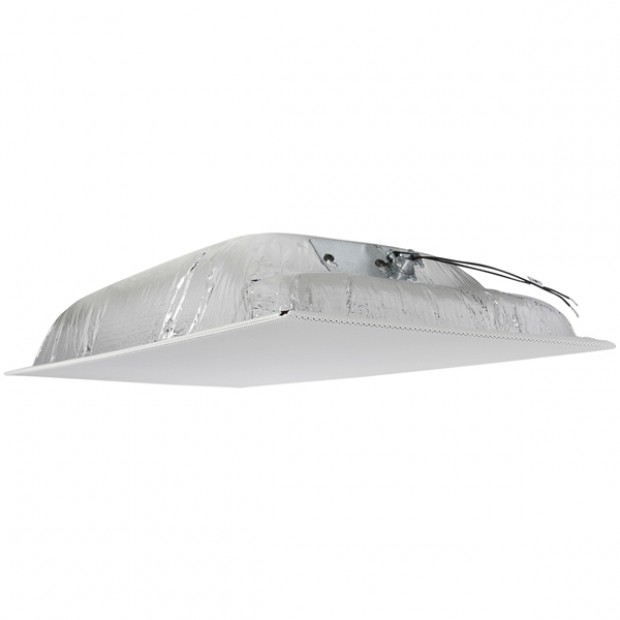

Quam SYSTEM 16/8 Lay In Tile Loudspeaker

By Quam Speakers

Quam SYSTEM 16/8 Lay In Tile Loudspeaker

Write a Review
Part #:
SYSTEM 16/8
Model #:
SYSTEM 16/8
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL
The Quam SYSTEM 16 is a complete, extended frequency response loudspeaker assembly, with 8" frame loudspeaker, 10W extended response transformer with 5-taps, "micro-perf" steel baffle, integrated back box and trim rail on 23-3/4" side.

Description
The Quam SYSTEM 16 is a complete, extended frequency response loudspeaker assembly, with 8" frame loudspeaker, 10W extended response transformer with 5-taps, "micro-perf" steel baffle, integrated back box and trim rail on 23-3/4" side. Finish is White or Black baked epoxy hybrid.

The Quam SYSTEM 16/8 is as above, less transformer and for 8-Ohm operation.

Features
  • Extended frequency response loudspeaker assembly.
  • 8" frame loudspeaker.
  • 10W extended response transformer with 5-taps.
  • "Micro-perf" steel baffle.
  • Integrated back box and trim rail on 23-3/4" side.
  • Finish is White or Black baked epoxy hybrid.

Specifications
Speaker Size 8” frame
Average Sensitivity 95 dB-SPL, 1W/ 1M
Loudspeaker Power Rating 20W-RMS, EIA 426A Standard
Calculated Maximum System Output 105dB-SPL, 10W / 1M
Magnet Type, Weight BeFe Ceramic, 10 oz. Nominal
Frequency Response 50—18kHz EIA 426A Standard
Nominal Coverage Angle 100° Included angle, -6dB 2 kHz, half space
Audio Connection 7” pre-cut, labeled wires
