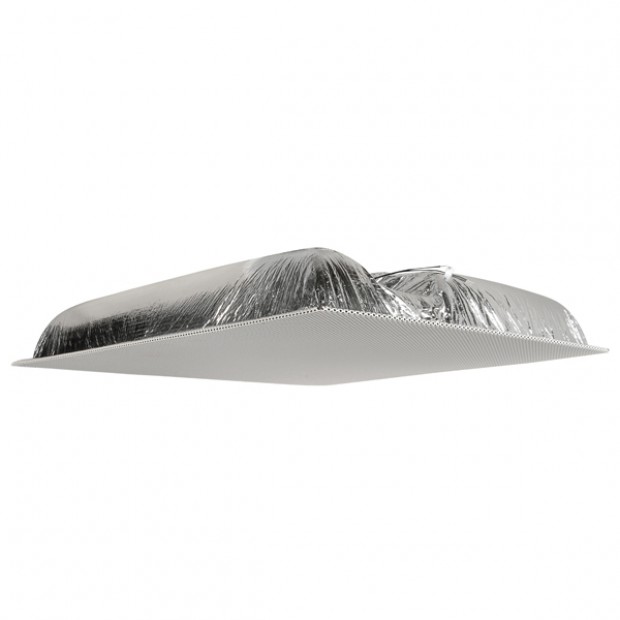

The Quam SYSTEM 12/8 is a complete loudspeaker assembly, with 8" frame, perforated steel baffle and integral back box; 24" x 24" format. Transformer options include a 25/70.7V pigtail; 25/70.7V pigtail with Volume Control; 25V Rotary Select.

Description
The Quam SYSTEM 12/8 is a complete loudspeaker assembly, with 8" frame, perforated steel baffle and integral back box; 24" x 24" format. Transformer options include a 25/70.7V pigtail; 25/70.7V pigtail with Volume Control; 25V Rotary Select or a 70.7V Rotary Select.

The assembly finish is a white or black baked epoxy hybrid. It is intended for indoor and sheltered outdoor applications.

This product has a nominal impedance of 8 ohms.

Features
  • Complete loudspeaker assembly.
  • 8" frame.
  • Perforated steel baffle and integral back box.
  • Assembly finish is a white or black baked epoxy hybrid.
  • Intended for indoor and sheltered outdoor applications.
  • Nominal impedance of 8 ohms.

Specifications
Speaker Size 8” frame
Average Sensitivity 92 dB-SPL, 1W/ 1M
Loudspeaker Power Rating 12W RMS, EIA 426A Standard
Calculated Maximum System Output 103 dB-SPL, 12W / 1M
Magnet Type, Weight BeFe Ceramic, 4.8 oz. Nominal
Frequency Response 42 Hz - 17 kHz EIA 426A Standard
Nominal Coverage Angle 100° Included angle, -6dB 2 kHz, half space
Audio Connection 7” long, labeled tinned wires,pre-cut
