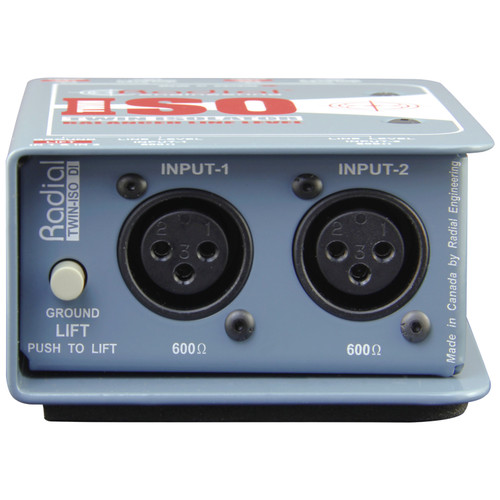

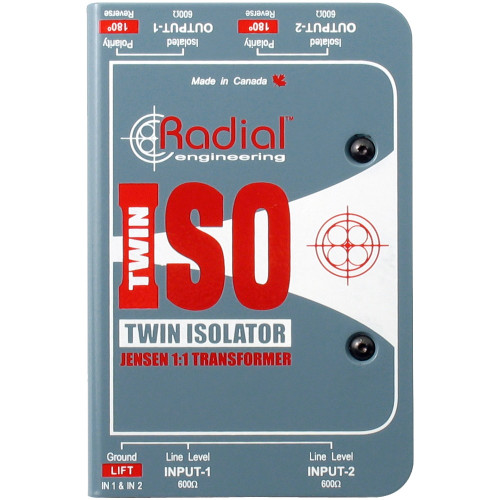

The Radial Twin-Iso is a high performance two channel balanced line-level isolator for professional touring, sound installation, broadcast and studio that provides isolation between various pieces of audio equipment such as consoles, amp racks, remote towers and recorders as a means of eliminating hum and buzz caused by ground loops.
Central to the Twin-Iso are premium Jensen® transformers. These industry-leading audio engines deliver an exceptionally linear response at all frequencies and are capable of handling as much as +21dB without distortion. Placed in between the audio source and destination, they assure absolute signal integrity is retained no matter what the program material.
As with all Radial products, the Twin-Iso is road-ready to handle the most abusive environments. It features 14-gauge steel I-beam construction and an innovative bookend design that creates a protective zone around the switches and connectors. A full bottom no-slip pad provides mechanical isolation from vibrations while adding electrical insulation between electrically charged devices. When combined with the J-Rak or J-Clamp, the Twin-Iso easily integrates into 19" rack systems or may be permanently mounted inside racks or under podiums.
The Twin-Iso solves noise problems with plug & play simplicity while delivering exceptional audio signal integrity.
⚠️WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
| Input Impedance | 716 Ohms |
|---|---|
| Insertion Loss | 1.6dB (w/600 Ohm load) |
| Voltage Gain | -1.6dB |
| Deviation From Linear Phase | +.03/-0° (20 Hz to 20 kHz, 0 dBu) |
| Frequency Response | 10Hz to 80kHz |
| Distortion (THD) | |
| Maximum Signal Handling | +20.5dBu (20Hz, 1% THD) |
| Common-Mode Rejection Ratio (CMRR) | 94dB (60Hz) |
| Output Impedance | 116 Ohms |
| Construction | 14-gauge steel chassis & shell, baked enamel finish |
| Size (W x H x D) | 3.25” (82.55 mm) x 2” (50.8 mm) x 5” (127 mm) |
| Weight | 1.95 lbs (0.9 kg) |
