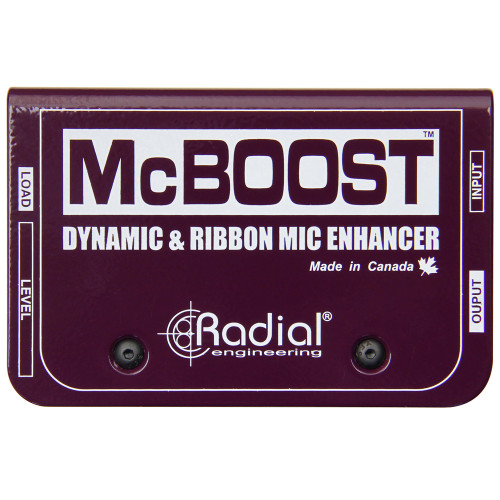

Radial Engineering McBoost Microphone Signal Booster

Part #:
R800 8016
Model #:
McBoost
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL
The Radial McBoost is a microphone signal booster designed to elevate the output of a dynamic or ribbon microphone for greater transparency and clarity, and provide enough clean gain to connect to any preamp.

Description

Radial McBoost Mic Signal Booster

Boost your signal at the source

The Radial McBoost provides clean gain at the source for low-output dynamic and ribbon microphones, driving long cable runs with ease and allowing you to connect to any preamp as if it were a high-gain ribbon mic pre. Simply connect the McBoost in-line using standard XLR cables and activate 48V phantom to provide power, then select between three impedance settings to optimize the response from the microphone. The McBoost will elevate the output to produce added clarity, excitement and extra drive for long cables whether you are in a recording studio, on a live concert stage, or in a broadcast center.

Features

Features:

  • Fully variable 25dB booster for dynamic and ribbon mics
  • Extends dynamic range and microphone reach
  • Uses standard 48V phantom for powering

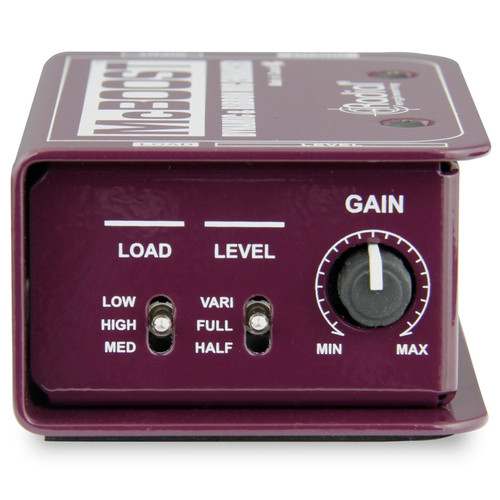

  • 3 position load switch and high-pass filter for greater control

Benefits:

  • Boosts low output mic signals to a usable level
  • Improves signal-to-noise on long cable runs
  • Improves signal-to-noise with vintage audio gear
  • High pass filter cleans up muddy low end

Cool Stuff:

  • Will breathe new life into your old SM57
  • Makes your dynamic think it is a condenser
  • Does not require any power supply
  • Works on dynamics and ribbon mics

Specifications

Power 48V phantom
Maximum Boost 25dB
Frequency Response From 3Hz to 30kHz
Dimensions (H x W x D) 1.75" (44 mm) x 4.25" (108 mm) x 2.75" (70 mm)
