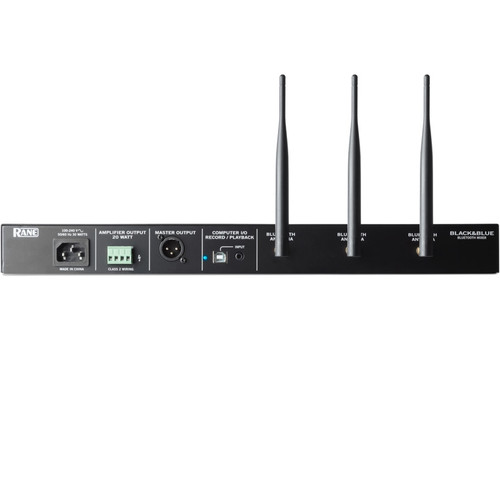

Rane Commercial Black & Blue Mixer and Amplifier with Bluetooth Receiver and Audio Routing
The Rane Black & Blue is a single space (1RU) Bluetooth receiver and audio routing device. Designed with the quality you have come to expect from Rane, this unit features 3 discreet Bluetooth registered inputs with individual volume controls and antennas.
The paring buttons and status LEDs make it easy to pair and confirm connectivity of your devices. The Black and Blue also features class-compliant USB audio for recording and playback. A 3.5mm line input makes it easy to connect an additional audio device source and with pre-fader signal LEDs, you know what channel is producing a signal. The convenient source selector makes it easy to select "Solo" or "Mix All" monitoring modes and has a master volume control with 3-color LED.
The Black & Blue is a simple, mono input-selector/mixer/amplifier with 3 discreet channels of Bluetooth, 3.5mm line input, and USB computer link for playback or recording. Inputs can be selected for monitoring individually, or all inputs mixed at once.
Application Examples:
Conference and meeting rooms - Bluetooth head-worn mic, computer program through USB, and XLR line out to powered speakers. Unit in mixer mode for mixing sources.
Coffee bars - Bluetooth mobile device, Bluetooth TV audio, Bluetooth head-worn mic for barista calling orders, amplifier out to full-range speakers and XLR out to a subwoofer. Unit in mixer mode for mixing sources.
Trade shows - Bluetooth tablet streaming music, Bluetooth head-worn mic for the presenter, XLR out to powered speaker, and USB out streams to a laptop computer to record the presentation. Unit in mixer mode for mixing sources.
- Features
Features
- 3 discreet Bluetooth registered inputs with individual volume controls and antennas
- Pairing buttons and status LEN (blue) for each registered input
- Class-compliant USB Audio for Record and Playback
- 3.5mm line input (disconnects USE input audio)
- Pre-fader signal LEDs (green) on each channel
- Source selector for "Solo" monitoring or "Mix All" mode
- Shelving Bass and Treble Mix EQ
- Master volume control with 3xolor LED (green, yellow, red)
- Power LED (yellow)
- XLR line output (+20 dBu Balanced)
- 20W mono Class-D amplifier
- Specification
Bluetooth Specifications Version: 4.2
Profile: A2DP, AVRCP, HFP, HSP
Range: Up to 88’ (27m)
Maximum Transmission Power: 8 dBm
Frequency: 2.402 - 2.480 GHzConnectors (1) 1/8” (3.5mm) TRS input
(1) USB Type-B port
(1) IEC power cable input
(1) XLR output
(1) 4-position Euroblock output (3.81mm)
(3) Bluetooth® antenna jacksInputs / Outputs Amplifier Output: Mono, 20W @ 4Ω, 70V, 100V
XLR Balanced Output
- Frequency Response: 20 Hz – 20 kHz
- THD+N: < 0.05%
3.5mm TRS Unbalanced Input
- Frequency Response: 20 Hz – 20 kHz
- THD+N: < 0.05%
USB: 44.1 kHz / 24-bitPower Connection: IEC
Voltage: 100 – 240 VAC, 50/60 Hz
Consumption: 40WDimensions (H x W x D) 1.7" (44 mm) x 19" (483 mm) x 11" (286 mm) Weight 8.6 lbs (3.9 kg) - Documents
Documents
- In The Box
In The Box
- (1) Black & Blue Mixer
- (1) IEC Power Cable
- (1) USB Cable
- (1) Euroblock Plug
- (3) Bluetooth Antennas
- Rack Ears (Attached)
- User Guide
- Safety & Warranty Manual
