The 100W per channel, four-channel Rane MA 4 amplifier achieves unparalleled power density, reliability and features in a space saving 1U, 19" rack mount chassis weighing only 8 lbs (3.6 kg).

Description

The 100 watt per channel, four-channel MA 4 amplifier achieves unparalleled power density, reliability and features in a space saving 1U, 19 inch rack mount chassis weighing only eight pounds (3.6 kg). A universal-voltage switching power supply provides near perfect Power-Factor, reducing peak currents to 1/3 compared to non power-factor-corrected supplies. A long list of unique features ranging from constant load power to built in automatic redundancy switching to advanced dynamics control, qualify the MA 4 for the most demanding fixed installation applications. The MA 4 excels in music & paging systems, small conference rooms and speech reinforcement applications requiring multiple amplifiers. Advanced dynamics control algorithms adapt to changes in temperature, load impedance and sensitivity setting. The result is a truly plug-and-play amplifier that ensures excellent signal integrity at all times.

Features

  • Universal voltage, power-factor-corrected power supply
  • Very low inrush current
  • 100W x 4 channels in 1U chassis
    • If you don't need this much power, please see the MA3 Multichannel Amplifier
  • Built-in load monitoring
  • Remote fault reporting and redundancy switching

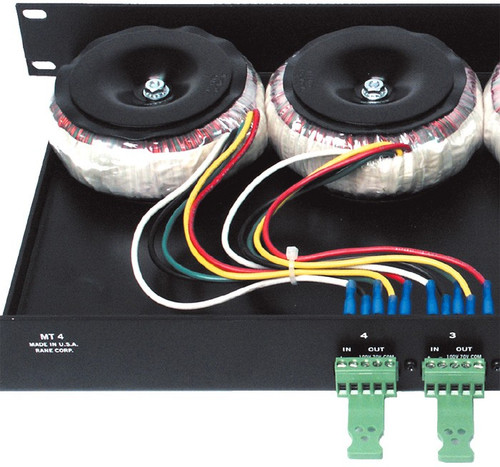

  • Optional 4-channel 70/100 volt transformers in 1U chassis
  • Adjustable high-pass filters and remote level controllable
  • Advanced dynamics control adjusts for sensitivity setting, load Z and temperature

Specifications

Input Impedance 10 kΩ
Maximum Input +22 dBu
Sensitivity Range/Resolution +22 to +4 dBu
Remote Level Control Range/Resolution Attenuate only; 0 dB to –80 dB
Fault Flag In/Out Active 5V high-side drive, passive pull down
Limiter Oversampled instantaneous attack
Compressor 50 ms rms detector
Threshold 10 dB re peak dBFS
Attack 1.5 second
Decay 3 dB per second
Knee Span 10 dB
Expander Select on rear panel
Threshold -70 dBFS
Attack 50 ms
Decay 10 dB per second
High-pass Filter 12 dB per octave, Butterworth
Load Sensing 2 to 16Ω normal
Low Load Detect Below 2Ω is low
Output Details
Power 100 watts
Frequency Response 20 Hz to 20 kHz
Dynamic Range >90 dB
THD+N 0.1% typ
Clock Fundamental 310 kHz
Fan Cooling Temperature controlled, variable speed
AC Mains 100 to 240 VAC
PFC 100 kHz boost
DC/DC 200 kHz forward
Construction All Steel
Dimensions (H x W x D)
Product 1.75" (44 mm) x 19" (483 mm) x 9.25" (235 mm)
Shipping 4.5" (108 mm) x 20.3" (516 mm) x 13.75" (349 mm)
Weight
Net 8 lbs (3.62 kg)
Shipping 11 lbs (4.98 kg)
