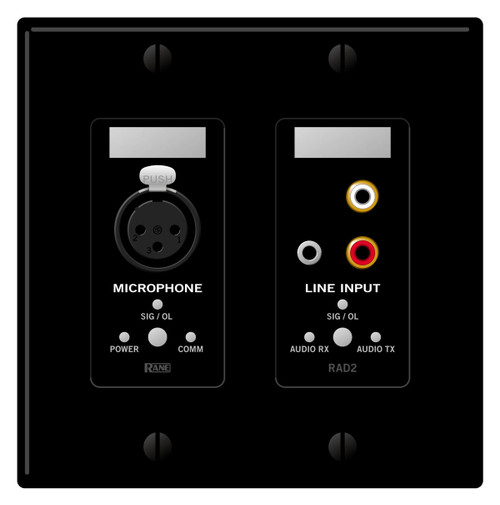

Rane RAD2 Wall Plate with 1 Microphone and 1 Line Input (Discontinued)
Rane RAD2 Wall Plate with 1 Microphone and 1 Line Input (Discontinued)
Rane RAD2 Wall Plate with 1 Microphone and 1 Line Input (Discontinued)
By Rane Corporation

Rane RAD2 Wall Plate with 1 Microphone and 1 Line Input (Discontinued)

Write a Review
Part #:
RAD2
Model #:
RAD2
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

The Rane RAD2 provides one professional quality microphone input on an XLR connector, and one consumer line input on 3.5 mm and RCA connectors.

Description

The Rane RAD2 provides one professional quality microphone input on an XLR connector, and one consumer line input on 3.5 mm TRS and RCA connectors (all line inputs are summed together). 24V phantom power can be activated for the microphone in software. A Euroblock connection on the back of the RAD allow hard-wiring to the mic input.

The RAD2 mounts in a standard 2-gang US electrical box. It is available in white, ivory, or black, with a matched Decora™ plate cover included. Order model RAD2W for white, RAD2I for ivory, and RAD2B for black.

Features
  • Mic Input
  • Line Input
  • 3 Colors Available

Specifications
Cable Length 500 ft (153 m)
Signal Indicator -50 dBFS
Overload Indicators -0.5 dBFS
Input Impedance 2.16 kΩ
Max. Input Level -17 dBu
Equivalent Input Noise -121 dBu
Dynamic Range 98 dB
CMRR -70 dB
Frequency Response 30 to 20k Hz
THD+Noise 0.010% typ
Gain Range 26 to 60 dB
Phantom Power +24V
Impedance 1.21 kΩ
Input Impedance (Mono) 20 kΩ
Max. Input Level (Mono) 6 Vrms
Dynamic Range 96 dB
Frequency Response 10 to 22k Hz
THD+Noise 0.005%
Conformity CE, FCC
Dimensions (H x W x D) 4.1" (104 mm) x 3.1" (79 mm) x 2.1" (53 mm)
Weight 0.29 lbs (0.13 kg)
Shipping Weight 0.69 lbs (0.31 kg)
