Rane TTM 56S Performance Mixer (Discontinued)

Rane TTM 56S Performance Mixer (Discontinued)

Name: Rane TTM 56S Performance Mixer (Discontinued)
Brand: Rane Corporation
SKU: RANE-TTM 56S
Price: 849 USD
Availability: OutOfStock

Write a Review

Part #:

TTM 56S

Model #:

TTM 56S

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Rane TTM56S is a classic, full-featured battle mixer with Rane’s patented magnetic faders, isolator EQs, reverse and contour controls for all faders and rugged road-worthy construction.

Description

The TTM56S is a classic, full-featured battle mixer with Rane’s patented magnetic faders, isolator EQs, reverse and contour controls for all faders and rugged road-worthy construction. This TTM54 descendent has been a top choice of the serious turntablist for many years.

Rane takes performance mixer design as seriously as performing DJs take their art form. In an effort to provide the best instrument possible, Rane devoted two years of R&D to developing a mixer with unparalleled performance. The TTM 56 is flexible, durable, and feature packed. The audio quality of the TTM56S qualifies it for use in the most demanding live venue, recording studio or live broadcast applications.

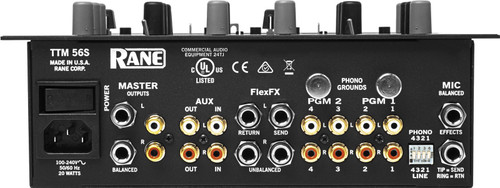

The current model TTM56S includes an internal universal power supply that works anywhere in the world, all four inputs are individually phono/line switchable, includes both 1/4" and 3.5mm headphone jacks, and all controls moved to the top panel.

Features

KILL switches behave like transform controls, to quickly cut a signal in or out
Separate CONTOUR controls for each fader and the cross-fader allow continuous adjustment from smooth blend to fast cut
The CHANNEL SWA P switch allows the left-hand or right-hand fader to control PGM 1 or PGM 2
Contains no wear parts
Auxiliary Inputs and Outputs, with independent level controls
AUX Inputs may be used for a drum machine, keyboard, etc.
AUX Input comes in after the Crossfader and after the FlexFX loop
AUX Outputs may be used for recording, booth monitoring, or a second zone
AUX Output is the same mix as the Master
FlexFX™allow individual assignment of PGM 1, PGM 2 or both to the effects loop (the effects loop is
post-fader)
The WET / DRY pan lets you control how much of the effect is in the mix
Three-band Accelerated-Slope™ EQ allows full cut of each band
Two 10-segment meters provide Dual-Mono-Cue or Stereo-Master operation
Power switch on the rear

Specifications

General
Phono Inputs	Switchable Line / Phono Unbalanced RCA jacks
Response	RIAA ±1 dB
Gain	35 dB, 1kHz (138mV max.)
Input Impedance	47.5 k Ohms, 200 pF
Line Inputs	Switchable Line / Phono Unbalanced RCA jacks
Input Impedance	20 k Ohms 1 kHz
Gain	Off to +12 dB 1 kHz
Tone Control (EQ)	3-band Accelerated-Slope™, Full cut, see graphs
Auxiliary Input	1 stereo Unbalanced RCA jacks
Input Impedance	20 k Ohms 1 kHz
Gain	Off to +10 dB 1 kHz
FlexFX Return	Stereo, unbalanced 1/4" TS (tip-sleeve) phone jack
Input Impedance	12 k Ohms Minimum
Gain Unity	1 kHz
Mic Input	Active Balanced 1/4" TRS (tip-ring-sleeve) phone jack
Input Impedance	20 k Ohms 1 kHz
Gain	44 dB at 1 kHz, Master Out, max gain
Frequency Response	30 to 20 kHz +0, -3 dB, max gain
CMMR	>40 dB 1 kHz, max gain
S/N	76 dB, Re +4 dBu, max gain, @ insert, 20 kHz BW
Tone Control	2-Band See graph in Manual
Effects Insert Loop	1/4" TRS, Tip=Send, Ring=Return, unbalanced mono
Master Output	Stereo balanced / unbalanced, 1/4" TRS phone / RCA jacks
Output Impedance	300 Ohms balanced each leg, 301 Ohms unbalanced
Gain	6 dB balanced 0 dB unbalanced
Frequency Response	10 Hz to 30 kHz +0, -3 dB
THD+N
S/N (Balanced Output)	101 dB, re +4 dBu, 20 kHz BW, unity gain 94 dB, re +4 dBu, 20 kHz BW, 12 dB gain
Auxiliary Output	Stereo Unbalanced RCA jacks
Output Impedance	301 Ohms
Gain	Off to +6 dB
FlexFX Send	Stereo, Unbalanced 1/4" TS phone jack
Output Impedance	301 Ohms Unity Gain
Control Feed-Through	-80 dB re +4 dBu, all controls
Crosstalk	-70 dB re +4 dBu, 1 kHz
Internal Universal Power Supply
Universal Line Voltage	100-240 VAC 50-60 Hz
Maximum Power	20W
Dimensions (H x W x D)	3" (76.2 mm) x 10" (254 mm) x 13.3" (337.8 mm)
Weight	9lbs (3.7 kg)
Shipping Weight	12lbs (5.5 kg)
