RCF HDL 6-A Dual 6" 1400W Active Line Array Speaker Module

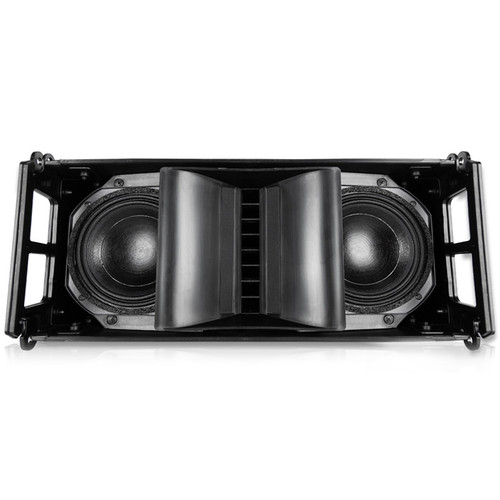

The HDL6-A is the ideal choice when line array performance is needed and a fast and easy set-up a must. A 1400W 2-channel class-D amplifier powers the system. A powerful DSP processes the sound including crossover, phase correction, limiting and protection. The system features state-of-the-art RCF transducers – two powerful 6.0" woofers for a solid bass reproduction plus a high powered 1.7" voice coil compression driver mounted on a precise 100° x 10° waveguide delivers vocal clarity with high definition and an incredible dynamic.
Custom Designed Waveguide
The custom designed waveguide provides a precise coverage of 100° x 10° delivering a superb, linear high-frequency response. Thanks to its large format compression driver on a waveguide, the HDL 6-A offers superior intelligibility over distance.
Symmetrical Design

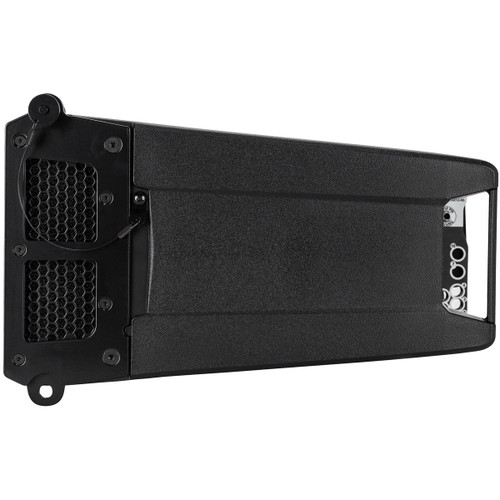

Due to its symmetrical design the HDL 6-A produces constant coverage without break up or attenuation. The HDL 6-A tour grade system comes in a structurally wooden reinforced composite polypropylene enclosure, and is equipped with two aluminum rear handles for portability. The RCF HDL will maintain its intelligibility, definition and signal strength while competitive models will attenuate and break up before the sound reaches its throw distance.
| Acoustical Specifications | Frequency Response: 65 Hz ÷ 20000 Hz Max SPL @ 1m: 131 dB Horizontal coverage angle: 100° Vertical coverage angle: 10° |
|---|---|
| Transducers | Compression Driver: 1.0'' neo, 1.75'' v.c Woofer: 2 x 6.0'' neo, 2.0'' v.c |
| Input/Output Section | Input signal: bal/unbal Input connectors: XLR Output connectors: XLR Input sensitivity: +4 dBu |
| Processor Section | Crossover Frequencies: 900 Hz Protections: Thermal, RMS Limiter: Soft Limiter Controls: HF correction |
| Power Section | Total Power: 1400W Peak, 700W RMS High frequencies: 400W Peak, 200W RMS Low frequencies: 1000W Peak, 500W RMS Cooling: Convection Connections: Powercon IN/OUT |
| Standard Compliance | CE marking: Yes |

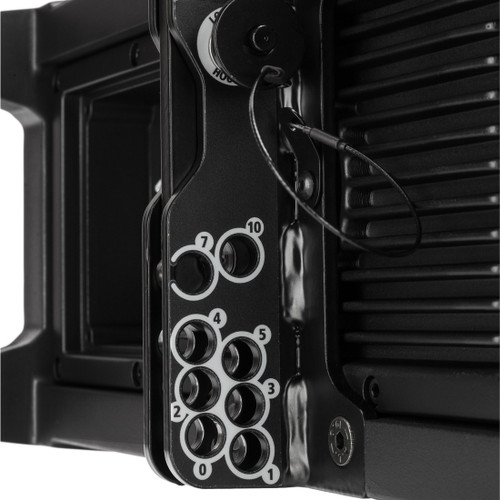

| Physical Specifications | Cabinet/Case Material: PP Composite Hardware: Array fittings Handles: 2 Back Grille: Steel Color: White |
| Dimensions (H x W x D) | 9.33" (237 mm) x 18.5" (470 mm) x 14.84" (377 mm) |
| Weight | 25.57 lbs (11.6 kg) |
| Shipping Dimensions (H x W x D) | 10.24" (260 mm) x 21.65" (550 mm) x 16.73" (425 mm) |
| Shipping Weight | 28.66 lbs (13 kg) |
