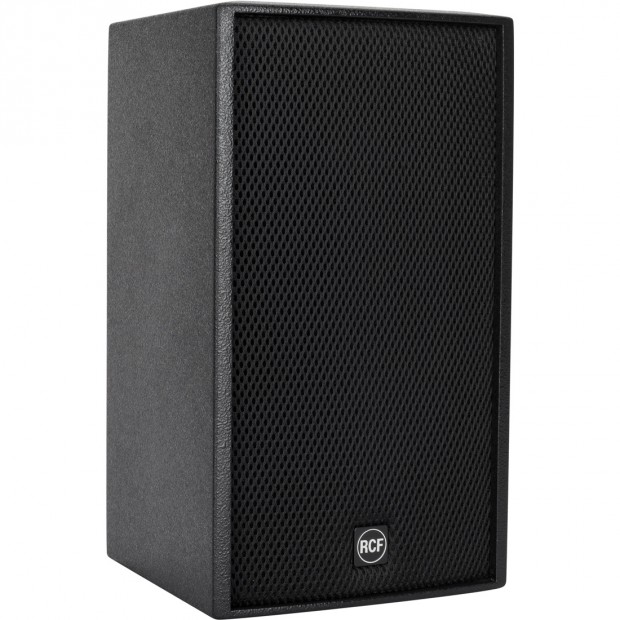

RCF M501 5.5" 80W 2-Way Passive Loudspeaker - Black (Discontinued)

The RCF M 501 is a multipurpose 2-way 5.5" 80-watt full range speaker system, suitable for a wide range of installations. The compactness, together with the elegant and neutral design with accurate finishing, make the M 501 suitable for almost any environment and architectural constraint. Its comfortable sound helps heavily in the near field applications. Available mounting accessories allow you to use the M 501 wall or ceiling mounted, with reference to the several possible applications. The SPL and the level of undistorted sound the M501 can reach are far above any expectation from such a compact solution.

The M 501 features high sensitivity typical of the PRO audio cabinets thanks to the use of oversized magnets and a HI-FI sound quality with smooth and wide frequency response performed thanks to the wave-guided titanium dome tweeter. The LICC crossover design includes a protection on high-frequency device.

• High quality 2-way passive loudspeaker
• 1 x 5.5" woofer, vented
• 1 x 1" driver, on 90° x 90° CD horn
• High power handling 'Low Impedance Compensated Crossover', with electronic protection for the driver
• 80W AES power handling
• Steel front grille with robust double mesh polyester clothing
• Rotatable RCF front logo
• Installation points are available on the rear panel, top and bottom
• All models have a 4-pin Euroblock connector (audio input and parallel link output)
