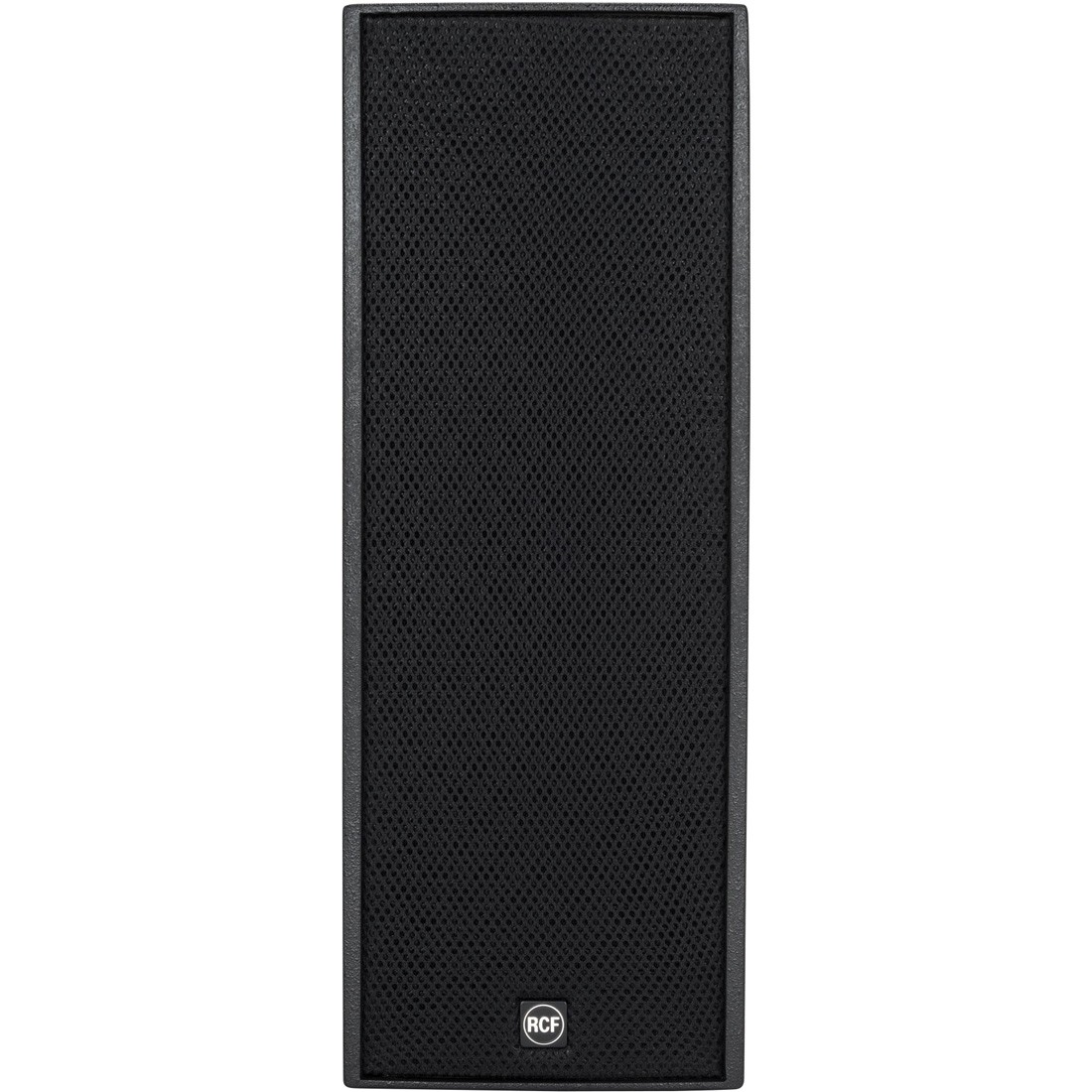

RCF M502 Dual 5.5" 100W 2-Way Passive Loudspeaker (Discontinued)

The RCF M 502 is a multipurpose 2-way dual 5.5" 100-watt full range speaker system, suitable for a wide range of installations. The compactness, together with the elegant and neutral design with accurate finishing, make the M 502 suitable for almost any environment and architectural constraint. Available mounting accessories allow you to use the M 502 wall or ceiling mounted, with reference to the several possible applications.

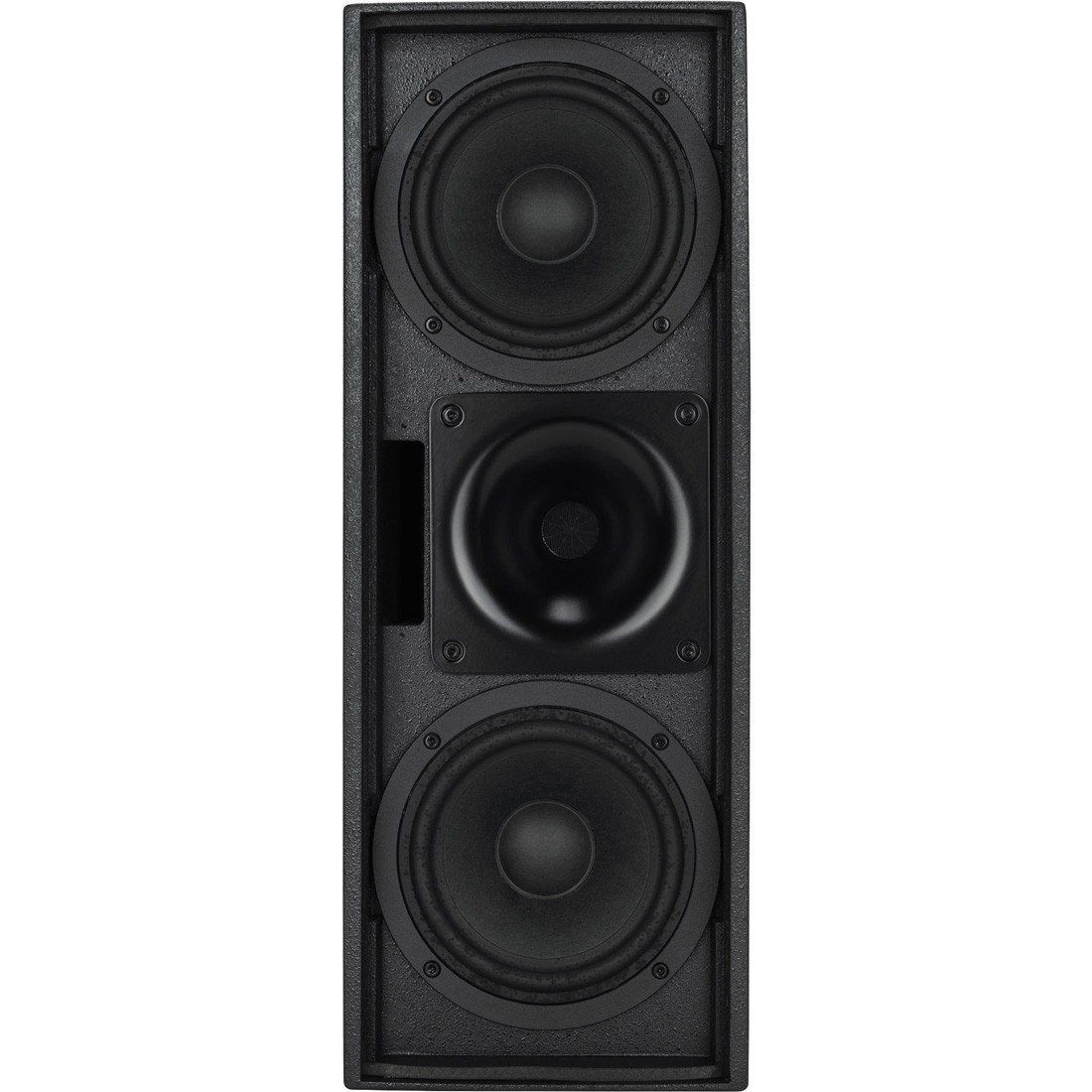

The M 502 has a controlled coverage through its twin 5.5" LF driver and the precise constant directivity horn. The SPL and the level of undistorted sound the M 502 can reach is far above any expectation from such a compact solution. The M 502 features high sensitivity thanks to the use of oversized magnets and a comfortable sound quality with smooth and wide frequency response performed thanks to the Kapton diaphragm compression driver loaded with a constant directivity horn. The LICC crossover design includes an electronic protection on high-frequency device.

• High quality 2-way passive loudspeaker
• 2 x 5.5" woofer, vented
• 1 x 1" driver, on 90° x 90° CD horn
• High power handling 'Low Impedance Compensated Crossover', with electronic protection for the driver
• 100W AES power handling
• Steel front grille with robust double mesh polyester clothing
• Rotatable RCF front logo
• Installation points are available on the rear panel, top and bottom
• All models have a 4-pin Euroblock connector (audio input and parallel link output)
