RCF P3115T 15" 300W Coaxial Weatherproof 2-Way 129 dB High Output Wide-Dispersion Loudspeaker

Part #:
13000135
Model #:
P3115-T
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The RCF P3115-T is a 70V/100V weatherproof full range, wide-dispersion, coaxial two-way loudspeaker system offering substantial power and efficiency for a variety of professional indoor or outdoor applications.

Description

The RCF P3115-T is a 70V/100V weatherproof full range, wide-dispersion, coaxial two-way loudspeaker system offering substantial power and efficiency for a variety of professional indoor or outdoor applications.

The high-frequency section is a constant directivity CMD horn loaded to a 1" RCF Precision Neodymium compression driver with a 1.5" diaphragm assembly for smooth, wide dispersion. The low-frequency transducer is a 15" woofer with a 2.5" voice coil. The P3115-T features a selectable line transformer for 70 - 100 Volt applications. P 3115-T meets the requirements of IP 55 code (International Protection Rating).

These weatherproof full range, wide-dispersion, coaxial two way loudspeaker systems are weather-resistant full-range speaker systems which are ideal for speech and music-fill in a variety of applications, including sports facilities, racetracks, automotive car lots, parking lots, airports, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/paging systems and swimming pools.

Features

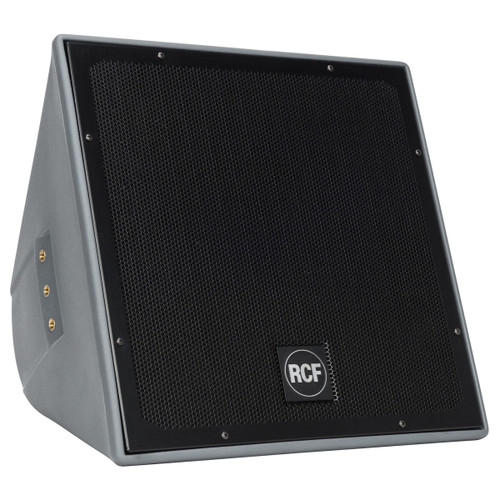

  • Cabinet is a single piece rotational molded in medium density polyethylene, fully UV protected and waterproof IP 55

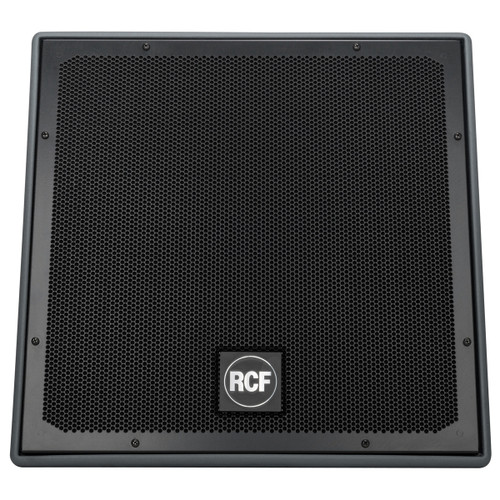

  • Front grille in custom perforated aluminum with open-cell fibers and water repellent woven fabric backing
  • Stainless steel bracket
  • 15" high-output LF transducer with 2" voice coil
  • RCF Precision Neo 1" Compression Driver with 1.5" voice coil
  • 90° x 60° constant directivity horn

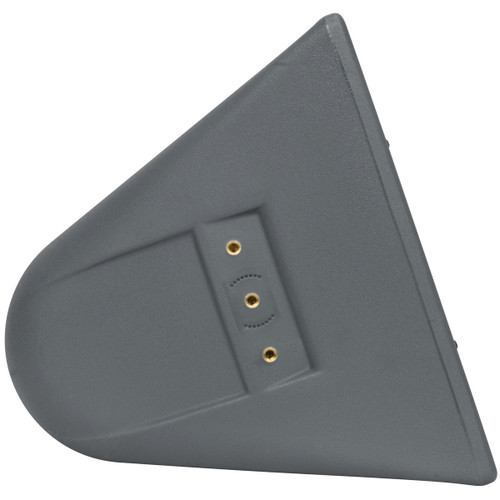

  • 10° x 20° enclosure sides for array configurations
  • Active Mosfet Compression Driver Protection
  • 12 brass suspension points (M10)
  • Line transformer

Specifications

Frequency Response -10 dB 75 Hz ÷ 20000 Hz
Max SPL @ 1m 129 dB
Horizontal Coverage Angle 90°
Vertical Coverage Angle 60°
Directivity Index; Q 13.3
System Sensitivity 98 dB
Nominal Impedance 16Ω
Power Handling 300W
Peak Power Handling 1200W
Protections Dynamic
Crossover Frequencies 1300 Hz
Compression Driver 1" HF driver, 1.5" voice coil
Nominal Impedance
Input Power Rating 25W AES
Sensitivity 108 dB
Woofer 15" woofer, 2.5" voice coil
Nominal Impedance 16Ω
Input Power Rating 250W AES
Sensitivity 98 dB
Input Connector 4-adriges Neopren Kabel, 5m
Constant Voltage Transformer 70/100V
Power Selection 70V/60W, 30W, 100V/120W, 60W
Cabinet Material Polyethylene rotomoulded
Hardware 12 x M10 inserts + U-brackets and pair of spacers
Grille Custom perforated aluminium grille with open-cell fiber and water repellent woven fabric backing
Color Grey
Dimensions (H x W x D) 18.23" (463 mm) x 18.23" (462 mm) x 17.05" (433 mm)
Net Weight 42.76 lbs (19.4 kg)
