RCF P2110T 10" 200W Coaxial Weatherproof 2-Way 124 dB High Output Wide-Dispersion Loudspeaker

Part #:
13000125
Model #:
P2110-T
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The RCF P2110-T is a 70V/100V weatherproof full range, wide-dispersion, coaxial two-way loudspeaker system offering substantial power and efficiency for a variety of professional indoor or outdoor applications.

Description

RCF P2110-T Wide-Dispersion Weatherproof Speaker for Outdoor Sound Reinforcement - Small to Medium Spaces

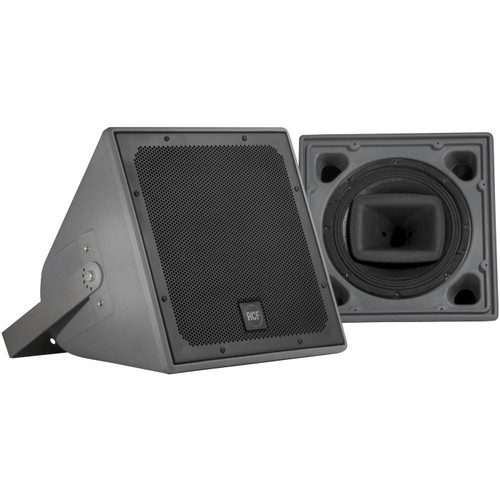

The high-frequency section is a constant directivity CMD horn loaded to a 1" RCF Precision Neodymium compression driver with a 1.50" diaphragm assembly for smooth, wide dispersion. The low-frequency transducer is a 10" woofer with a 2.5" voice coil. The cabinet is a single piece rotational molded in medium density polyethylene, fully UV protected.

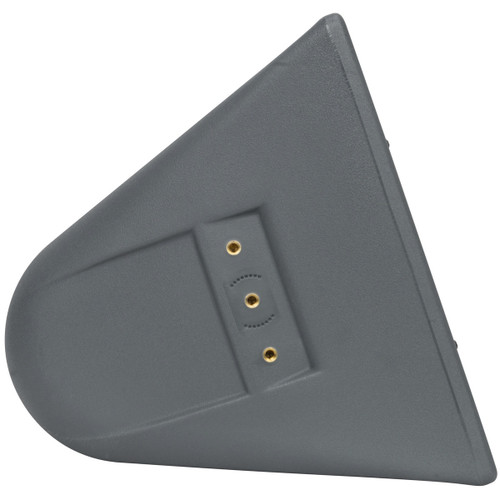

The cabinet is equipped with 12 x M 8 brass inserts, a stainless steel U-Bracket and pair of spacers for 90° mounting. The front logo is in aluminum and rotatable. The grille is in custom perforated aluminum with open-cell fibers and water repellent woven fabric backing.

The system features a selectable line transformer for 70 - 100 Volt applications. P 2110-T is suitable for indoor and outdoor applications/installations, it meets the requirements of IP 55 code (International Protection Rating).

These weatherproof full range, wide-dispersion, coaxial two way loudspeaker systems are weather-resistant full-range speaker systems which are ideal for speech and music-fill in a variety of applications, including sports facilities, racetracks, automotive car lots, parking lots, airports, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/paging systems and swimming pools.

Features

  • Cabinet is a single piece rotational molded in medium density polyethylene, fully UV protected and waterproof IP 55

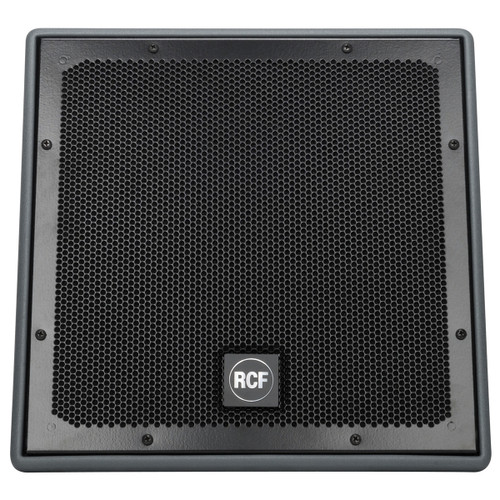

  • Front grille in custom perforated aluminum with open-cell fibers and water repellent woven fabric backing

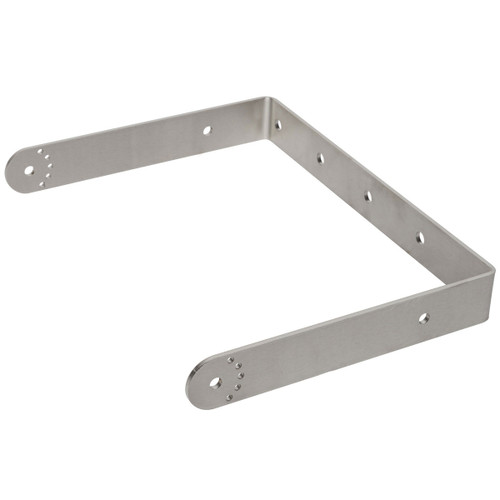

  • Stainless steel bracket
  • One 10" high-output LF transducer with 2" voice coil
  • One RCF Precision Neodymium 1" Compression Driver with 1.5" voice coil
  • 90° x 40° constant directivity horn
  • Built-in passive crossover and selectable line transformer
  • 10° x 20° enclosure sides for array configurations
  • Active Mosfet Compression Driver Protection
  • LICC (Low Impedance Compensated Crossover) network
  • 12 brass suspension points (M8)

Specifications

Frequency Response -10 dB 95 Hz ÷ 20000 Hz
Max SPL @ 1m 124 dB
Horizontal Coverage Angle 90°
Vertical Coverage Angle 40°
Directivity Index; Q 11
System Sensitivity 95 dB
Nominal Impedance 16Ω
Power Handling 200W
Peak Power Handling 800W
Recommended Amplifier 400W
Protections Dynamic
Crossover Frequencies 2000 Hz
Compression Driver 1" HF driver, 1,5" voice coil
Nominal Impedance
Input Power Rating 25W AES
Sensitivity 106 dB
Woofer 10" woofer, 2.5" voice coil
Nominal Impedance 16 Ω
Input Power Rating 180W AES
Sensitivity 95 dB
Input Connector 5m, 4-adriges Neopren Kabel
Constant Voltage Transformer 70/100V
Power Selection 70V/30W ,15W, 100V/60W, 30W
Cabinet Material Polyethylene rotomolded
Hardware 12 x M8 inserts + U-brackets and pair of spacers
Grille Custom perforated aluminium grille with open-cell fiber and water repellent woven fabric backing
Color Grey
Dimensions (H x W x D) 13.78" (350 mm) x 13.78" (350 mm) x 12.6" (320 mm)
Net Weight 29.75 lbs (13.5 kg)
