RCF PL 40 3.5" Full Range In-Ceiling Speaker with 70V/100V Transformer (Discontinued)

Part #:
13133045
Model #:
PL40
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

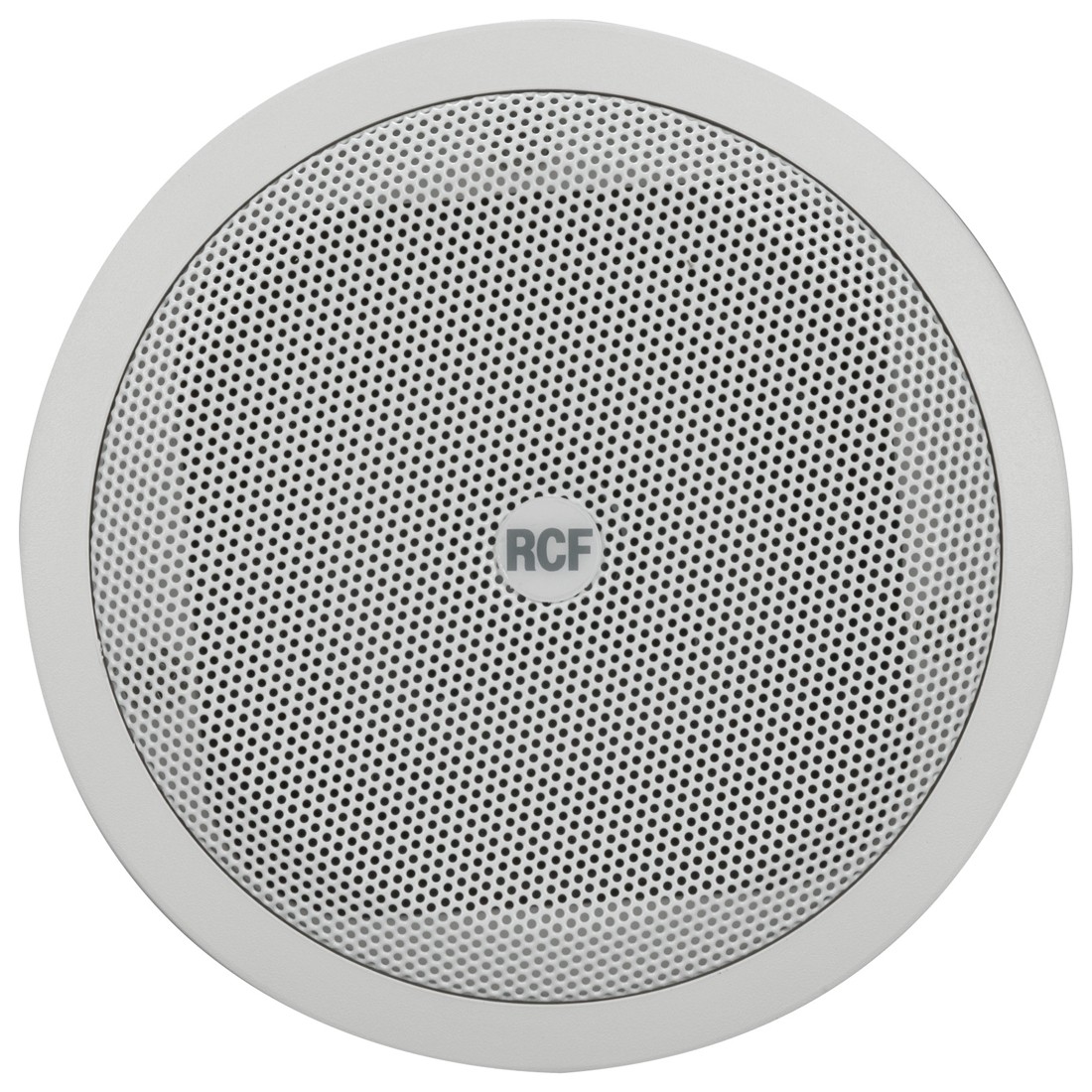

The RCF PL 40 is a ceiling speaker featuring an elegant and innovative design that can be flush mounted in false ceilings or panels. Incorporating a 3.5" full-range transducer, the PL 40 is equipped with a line transformer that enables direct connection to constant voltage systems at 70V or 100V.

Description

RCF PL 40 3.5" In-Ceiling Speaker with 70V/100V Transformer

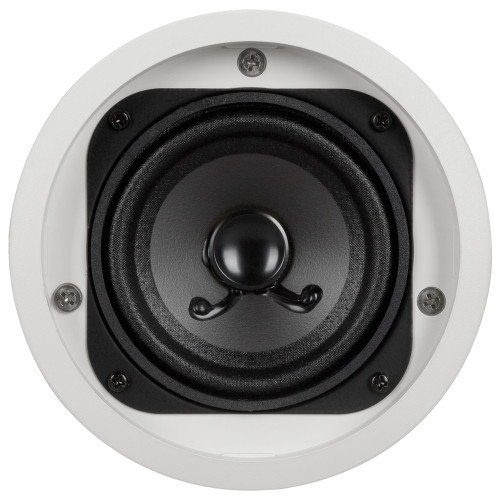

The PL 40 is a ceiling speaker featuring an elegant and innovative design that can be flush-mounted in false ceilings or panels. Incorporating a 3.5" full-range transducer, PL 40 is equipped with a line transformer that enables direct connection to constant voltage systems at 70V or 100V. The multiple sockets on the transformer make it possible to select the output power from among several values. Installation is quick and easy thanks to a special three-hook system that avoids the need for using screws and pallet or other attachment elements.

Features

  • 3.5" fullrange transducer
  • Power selectable (100V): 8W – 6W – 4W – 2W
  • 88 dB sensitivity
  • Color white RAL 9003
  • Plastic frame UL 94 V0, aluminum grille

Specifications

Transducers 3.5"
IP Protection Grade IP 44
Depth 4.33" (110 mm)
Recessed Depth 4.06" (103 mm)
Diameter 5.12" (130 mm)
Weight 0.84 lbs (0.38 kg)
Shipping Weight 2.65 lbs (1.2 kg)
