RDL AV-XMN4 4-Channel Microphone to Dante Interface

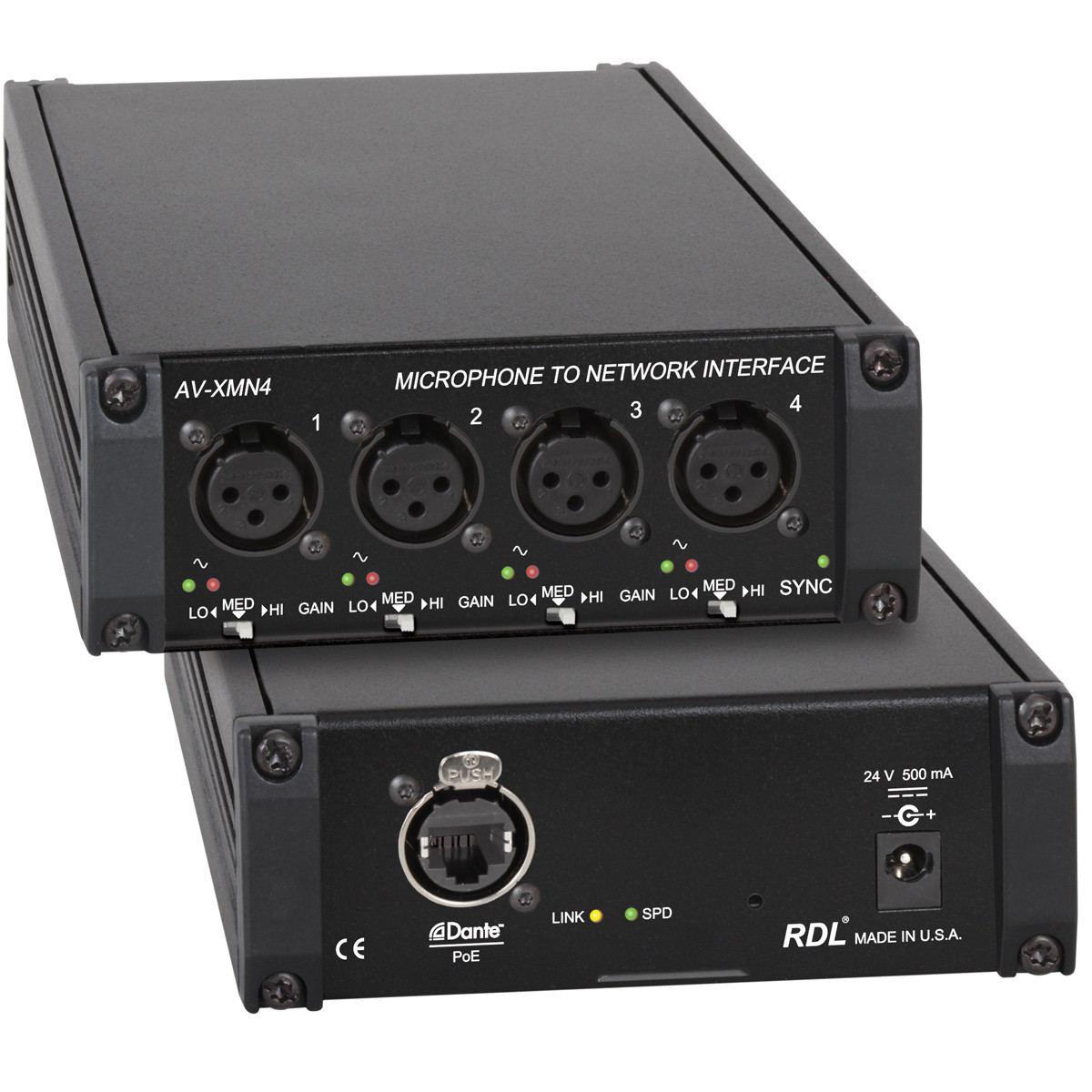

The AV-XMN4 is a professional 4-channel microphone to Dante network interface designed to convert four XLR mic inputs into high-quality Dante audio channels. Each front-panel XLR input features switch-selectable gain settings and 48V phantom power, making it ideal for both dynamic and condenser microphones. High-resolution 24-bit analog-to-digital conversion and discrete mic preamplifiers ensure low-noise, studio-quality performance.

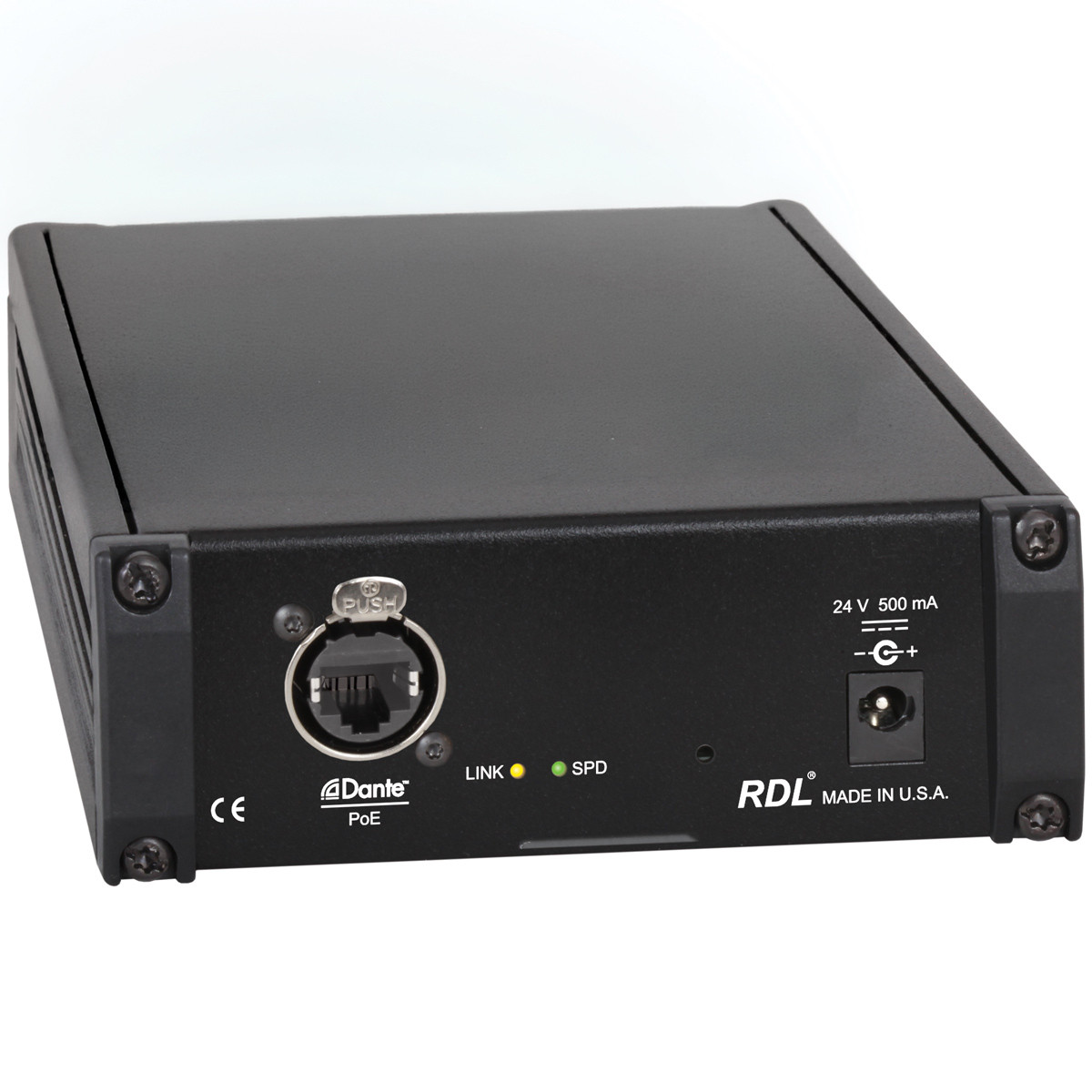

The RDL AV-XMN4 operates without the need for special configuration software, simplifying installation in live sound, broadcast, and installed AV systems. A front-panel LED indicator confirms power and network synchronization, while the unit supports both PoE and external 24 Vdc power with seamless failover for reliable operation.

The RDL AV-XMN4 is housed in a rugged black metal enclosure built for durability in demanding environments. It can be mounted on a microphone stand or flat surface, making it a versatile solution for stage and studio applications where dependable Dante audio integration is required.

Features

Features

4-channel microphone to Dante network interface for professional audio systems
Converts four XLR mic inputs into Dante network audio channels
Front-panel XLR inputs for quick and convenient access
Switch-selectable mic gain per channel: 40 dB, 48 dB, or 62 dB
48V phantom power (P48) available on all inputs for condenser microphones
High-resolution 24-bit analog-to-digital audio conversion
Discrete mic preamplifiers for low noise and studio-quality sound
No special software required for setup or configuration
Dual-LED level indicators for accurate input monitoring
Powered via PoE (IEEE 802.3af) or external 24 Vdc supply
Automatic power failover between external supply and PoE
LED indicator for power status and Dante network synchronization
Durable black all-metal enclosure for stage and installation use
Mounts to microphone stand or flat surface with included hardware
Designed for continuous operation in demanding pro AV environments
Made in the USA for professional reliability and performance

Specification

Network Connector	RJ45 Neutrik etherCON
Digital Audio Protocol	Dante
Transmission Rate	100 Mbps
Sample Rates Supported	44.1 kHz, 48 kHz (default), 88.2 kHz, 96 kHz
Bit Depth	24-bit
Inputs	4 x XLR (female)
Gain (Mic)	40 dB (LO), 48 dB (MED), 62 dB (HI), front-panel selectable
Phantom Power	P48, 48 Vdc (IEC 61938:2013)
Frequency Response	20 Hz - 20 kHz (±0.5 dB)
Equivalent Input Noise	-130 dBu (62 dB gain), -132 dBu A-weighted
THD+N	<0.1% (20 Hz - 20 kHz), 0.015% @ 1 kHz (typ)
Crosstalk	Below Noise Floor (any input to any input, 20 Hz – 20 kHz)
Input Impedance	>2.5 kΩ
Power Requirement	PoE Class 0, IEEE 802.3af or 24 Vdc @ 500 mA
Ambient Operating Temp	0°C - 50°C
Dimensions (H x W x D)	1.68" (42.67 mm) x 5.19" (131.83 mm) x 5.97" (151.64 mm)
Shipping Weight	1.79 lbs (0.81 kg)
