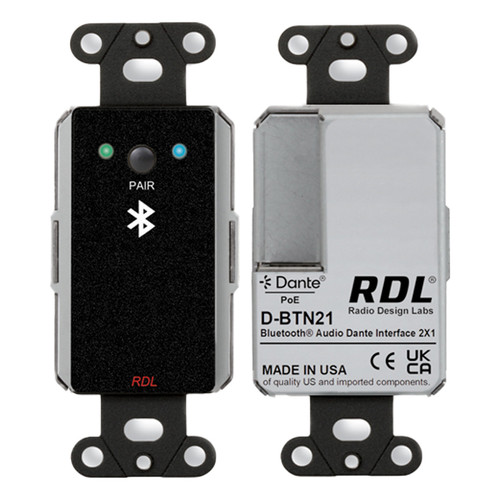

RDL DB-BTN21 Bluetooth Audio Dante Network Interface in Black

The DB-BTN21 is a professional black wall-mounted Bluetooth audio interface designed for Dante and AES67 networked systems. It provides bidirectional audio, allowing Bluetooth input to feed two Dante channels while also supporting a return audio path for full duplex communication. Users can stream stereo or summed mono audio, with configuration available through RDL CONSOLE software or compatible remote controls.

The DB-BTN21 features intuitive single-button Bluetooth pairing with LED status indication and supports advanced control functions such as track selection, play/pause, and volume adjustment. Bluetooth metadata, including track title and artist, is multicast over the network for display on compatible devices. Multiple units can be controlled from a single remote, making it ideal for scalable installations.

Designed for seamless integration, the DB-BTN21 fits a standard US single-gang electrical box and is powered via PoE for simplified installation. Available in black, stainless steel, and white finishes, it offers flexible customization and reliable performance for conference rooms, hospitality, and commercial AV environments.

Features

Features

Bidirectional black Bluetooth audio interface for Dante and AES67 networks
Streams stereo or summed mono Bluetooth audio to two network channels
Return audio channel enables full duplex communication to Bluetooth device
Single-button Bluetooth pairing with LED status indication
Remote control of pairing, playback, track selection, and volume
Multicasts track title and artist metadata over the network
Configurable via RDL CONSOLE software or compatible control systems
Q-SYS plugin support for system integration
Supports control of multiple units from a single remote
Customizable Bluetooth name and LED behavior settings
Fits standard US single-gang electrical box for easy wall mounting
Powered via PoE (Power over Ethernet) for streamlined installation
Available in black, stainless steel, and white finishes
Ideal for conference rooms, hospitality, and commercial AV systems

Specification

Network Connector	RJ45 with Link and Speed indicators
Digital Audio Ethernet Protocol	Dante
Transmission Rate	100 Mbps
Sample Rates Supported	48 kHz
Bit Depth Supported	24 bits
Audio Operating Levels	20 dBFS = +4 dBu (balanced); -20 dBFS = -10 dBV (unbalanced), nominal
Indicators	Bluetooth, Network Sync
Power Connection	PoE (RJ45)
Ambient Operating Environment	0°C to 40°C
Power Requirement	PoE
PoE	Class 0, IEEE 802.3af
Dimensions (H x W x D)	4.11" (104.39 mm) x 1.71" (43.43 mm) x 2.09" (53.09 mm)
Shipping Weight	0.63 lbs (0.29 kg)
