RDL DD-RN31 4x4 Wall-Mounted Bi-Directional Mic/Line Dante Network Interface with PoE - White

RDL DD-RN31 Bi-Directional Mic/Line Dante Network Interface in White

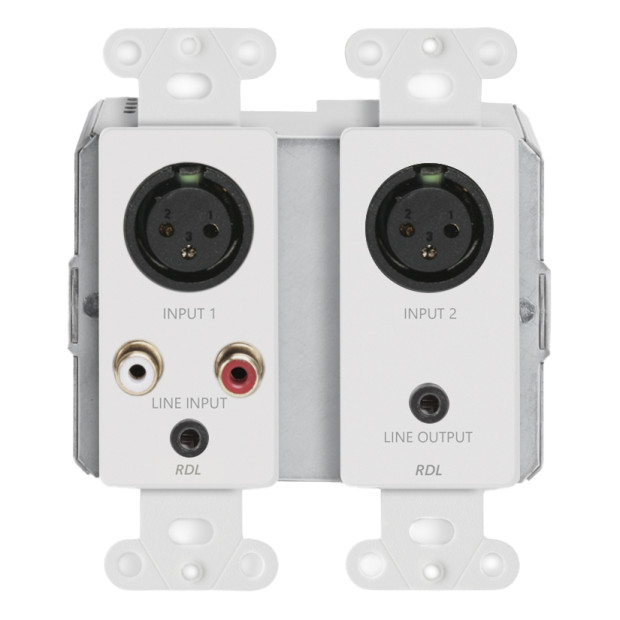

The DD-RN31 is a wall-mounted 4x4 bi-directional mic/line Dante network interface designed for professional audio installations. It provides two XLR mic/line inputs, one stereo mini-jack, and left/right RCA inputs on the front panel, plus a stereo mini-jack output and two balanced rear-panel line outputs. The module is configured and adjusted via RDL CONSOLE or other network control software, and supports PoE for convenient single-cable operation. The DD-RN31 fits a standard US dual-gang electrical box or an RDL WB-2 back box for thinner wall installations, and is available in multiple finishes with optional custom graphics.

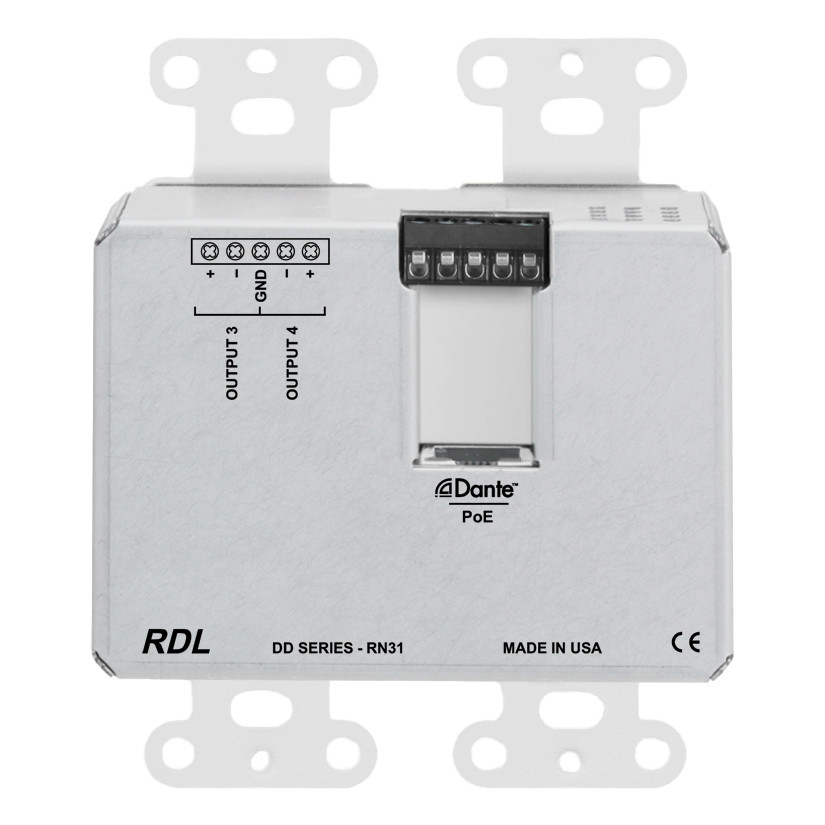

Mic and line audio signals are converted to Dante network channels with software-selectable gain settings, supporting condenser and dynamic microphones with P48 phantom voltage. Mini-jack and RCA inputs can feed one or two Dante channels, allowing flexible summing of multiple sources. Two Dante channels are converted back to front-panel unbalanced mini-jack output, and rear-panel balanced +4 dBu outputs, providing low-noise, high-fidelity audio for downstream devices.

Engineered with RDL mic preamplifiers and legendary analog filtering, the DD-RN31 delivers studio-quality sound with ultra-low noise. Status LEDs indicate PoE and network sync, and the steel chassis with powder-coated or stainless Decora front plate ensures durability. This professional-grade Dante interface is built in the U.S.A. for demanding installations, offering exceptional performance and reliability for commercial and broadcast audio applications.

• 4x4 bi-directional wall-mounted Dante Mic/Line interface
• PoE powered with front-panel status LEDs
• Two XLR mic/line inputs with software-selectable gain
• P48 phantom power on mic inputs
• Mini-jack and RCA stereo inputs on the front panel
• Stereo mini-jack front-panel output; balanced rear outputs (+4 dBu)
• Network configuration via RDL CONSOLE or compatible software
• Converts mic/line to Dante channels and Dante to line outputs
• Studio-quality RDL preamplifiers and analog filtering
• Fits standard US dual-gang or RDL WB-2 back box
• Dual powder-coated or stainless steel Decora front plate
• High-resolution 24-bit A/D and D/A conversion
• Professional-grade, low-noise audio performance
• Durable steel chassis, engineered for demanding installations
• Made in the USA with long-term reliability
