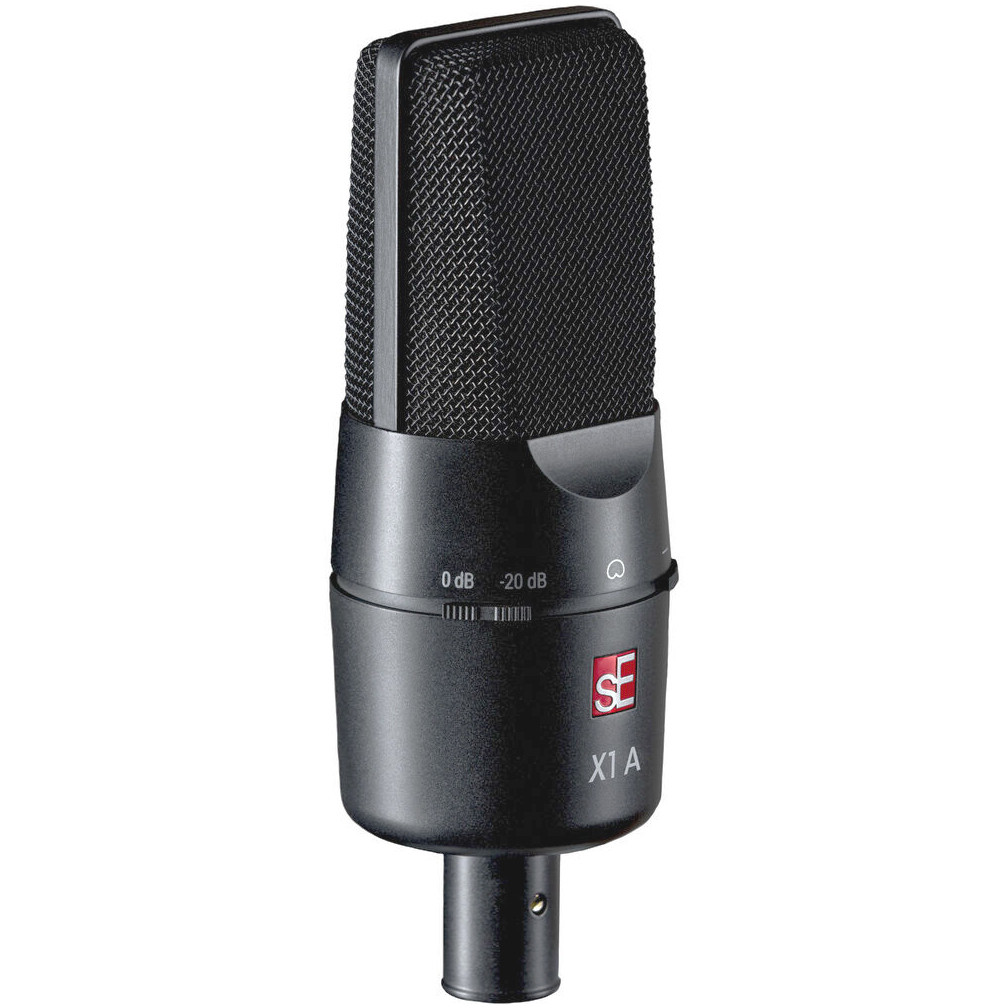

sE Electronics X1 A Large-Diaphragm Condenser Microphone with Clip
The X1 A is high quality condenser microphone intended for a wide range of studio applications, from vocals to drums to acoustic instruments and beyond. Thanks to its custom design and carefully-selected capsule, it delivers pristine sound quality and an even, well-balanced frequency response.
The electronics and the switchable attenuation pad ensure a high dynamic range, with high sound pressure level (SPL) handling capability and extremely low-noise components. The switchable low cut filter eliminates rumble or footfall noise, and can also compensate for an excess of bass frequencies caused by the proximity effect. This enables the X1 A to close-mic many instruments including electric guitar speaker cabinets, brass instruments and drums.
Reliable operation even in demanding on-stage applications in difficult environments is ensured by the roadworthy all-metal design, robust construction, and high quality manufacturing standards.
- Features
Features
- Newly-developed condenser capsule with the same rugged metal chassis of the X1 SERIES
- First-class sound & specifications at an even better "home studio" cost
- Extremely natural frequency response, massive SPL-handling capabilities (150 dB)
- Switchable attenuation and low-cut filters, with a perfectly balanced sensitivity level
- 100 Hz bass-cut filter and -20 dB attenuation pad
- Specification
Capsule 2 / 3" Back-electret Condenser Polar Patterns Cardioid Frequency Range 20 Hz - 20 kHz Sensitivity 20 mV / Pa (-34 dBV) Max SPL 130 / 150 dB (0 / 20 dB pad, (0.5% THD @ 1kHz) Equivalent Noise Level 16 dB Dynamic Range 114 / 134 dB (0 / 20 dB attenuation pad) Signal to Noise Ratio 78 dB Low Cut Filter 100 Hz, 6 dB / Oct, switchable Attenuation Pad 20 dB, switchable Powering 48V Phantom Power (P48 according to IEC 61938) Electrical Impedance <50 Ohms Recommended Load Impedance >1k Ohms Current Consumption 4.0 mA Connectivity 3-pin male XLR connector Dimensions (L x Dia) 6.65" (169 mm) x 2.28" (58 mm) Weight 0.86 lbs (0.36 kg) - Documents
Documents
- In The Box
In The Box
- X1 A Microphone
- Swivel Mic Clip
- Mic Stand Thread Adapter
