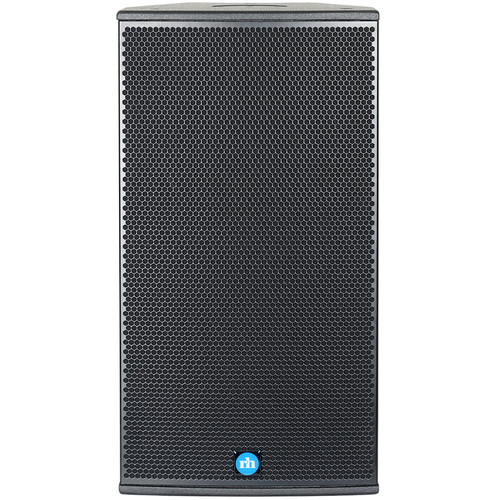

The CX121 two-way complex conic loudspeaker system with 12-inch heavy duty woofer and 2-inch titanium HF driver. Sound that makes performances and audiences truly come alive doesn't come easy. But CF & CFX Series loudspeakers put the power of unique Renkus-Heinz developments like Complex Conic Horns to work for you. Versatile enclosure designs, go-anywhere hardware and rugged construction help solve your sound reinforcement challenges easily and quickly. Advanced options like intelligent onboard amplification and RHAON — the Renkus-Heinz Audio Operations Network — help you build sophisticated sound systems that are easy to use.
| Transducers | Woofer: SSL12-26; High Frequency Driver: SSD1747-8; Replacement HF Diaphragm CD1747-8 |
|---|---|

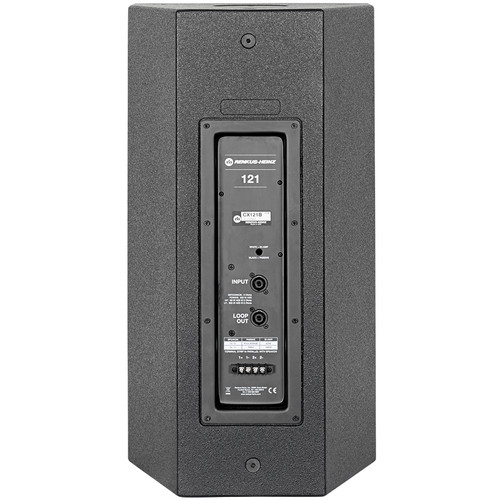

| Connectors | 2 x Speakon® NL4 Four-place terminal strip, all paralleled |
| Power Handling | Passive: 350W AES @ 8 ohms Bi-amp: 350W AES @ 8 ohms, LF 60W AES @ 8 ohms, HF |
| Sensitivity | 97 dB (1W/1m) |
| Crossover Frequency | 1.6 kHz, passive, bi-amp selectable |
| Max. SPL | 128 dB (peak, whole space) |
| Frequency Response | 60 Hz to 20 kHz (+/- 3dB) |
| Dispersion | 90° horizontal x 40° vertical, Rotatable Complex Conic Horn |
| Mounting | 12 x M10 UMH points; 2 x M10 u-bracket nutplate. Optional: UBRKT/CT121B (black) |
| Dimensions (H x W x D) | 27" (686 mm) x 14.38" (365 mm) x 14.25" (362 mm) |
| Weight | 45 lbs (20.4 kg) |
Usually arrives in 5-9 business days.
