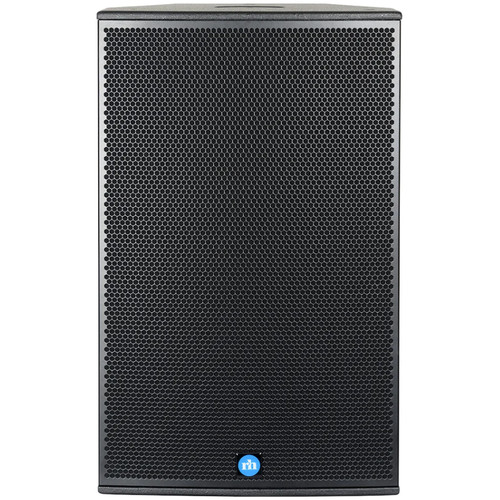

Unleash performance that makes the audience truly come alive with the Renkus-Heinz CX151 loudspeaker. This durable speaker contains the unique Complex Conic Horn technology that works with the spherical expansion of the acoustic pressure wave instead of trying to force it through a rectangular funnel like conventional designs. This technology gives this loudspeaker a natural, transparent sound. The rugged construction and versatile enclosure design helps solve sound reinforcement challenges easily and quickly. The CX151 is ideal for use in any application where size is a critical issue and outstanding sonic performance is required.
| Transducers | Woofer: SSL12-26; High Frequency Driver: SSD1747-8; Replacement HF Diaphragm CD1747-8 |
|---|---|
| Connectors | 2 x Speakon® NL4 Four-place terminal strip, all paralleled |
| Power Handling | Passive: 350W AES @ 8 ohms Bi-amp: 350 W AES @ 8 ohms, LF 60W AES @ 8 ohms, HF |
| Sensitivity | 98 dB (1W/1m) |
| Crossover Frequency | 1.6 kHz, passive, bi-amp selectable |
| Max. SPL | 129 dB (peak, whole space) |
| Frequency Response | 55 Hz to 20 kHz (+/- 3dB) |
| Dispersion | 60° horizontal x 40° vertical, Complex Conic Horn |
| Mounting | 12 x M10 UMH points; 2 x M10 u-bracket nutplate. Optional: UBRKT/CT151B (black) |
| Dimensions (H x W x D) | 28.5" (724 mm) x 17.5" (445 mm) x 17" (432 mm) |
| Weight | 52 lbs (23.6 kg) |
