Renkus Heinz IC212S-R Dual 12 inch Subwoofer

Home /

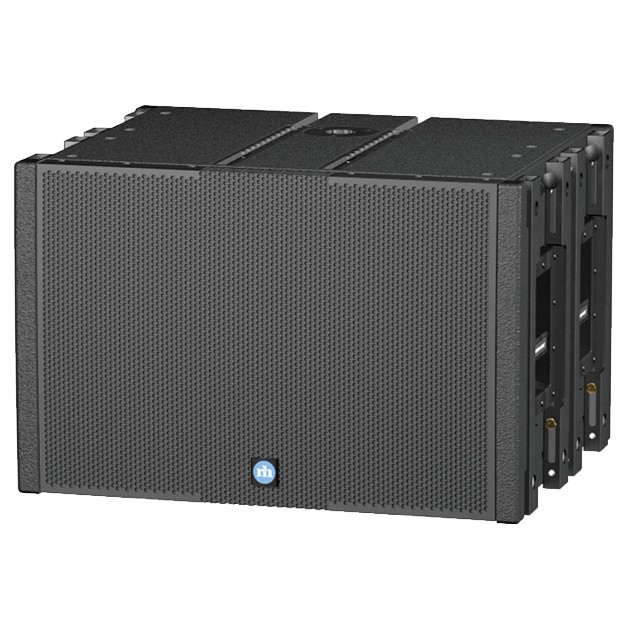

Renkus Heinz IC212S-R Dual 12" Subwoofer (Discontinued)

Description

Details

IC212S-R subwoofers are the perfect companions to IC² digitally steered arrays in both portable applications and fixed installations. Their dual high-power 12-inch woofers deliver outstanding low frequency impact with a highorder bandpass design that maximizes the efficiency of their cutting edge woofer technology and Class D digital amplifiers.

The IC212S-R subwoofer was designed as a companion to IC Live and IC² digitally steerable line arrays in fixed installations. Digital beam steering puts output where it belongs: on the audience, and away from walls, ceilings, and other reflective surfaces. One-touch presets and computer software shape the line array’s output and aim it up or down.

With 1700 Watts RMS of Class D power driving a pair of high-output 12-inch woofers, IC212S-R subwoofers easily produce 133 dB peak SPL. Low frequency output extends to 42 Hz, providing a solid foundation for any musical program material. The powerful 12-inch woofers feature a high efficiency neodymium magnet and a straight ribbed, carbon fiber reinforced cone.

IC212S-R installation models can be floor mounted or easily suspended from built in attachment points.

Like the full range IC² line arrays, IC212S-R subwoofers are fully integrated into RHAON, the Renkus-Heinz Audio Operations Network, providing a full set of remote control and supervision functions, along with CobraNet multi-channel digital audio distribution.

Features

Features

Adaptable, Articulate
Powerful, Accurate Sub-Bass Performance
Scalable, Versatile
RHAON Empowered

Specification

Sensitivity	1.4 B (for Rated Power Output)
Frequency Range	42 Hz to 120 Hz
Max SPL	133 dB Peak
No. Transducers	Two Model SSL12-17, 12" Woofers, 700W Pgm @ 8 Ohms (Each)
Power Required	90/136 V or 180/260 V AC, 50/60 Hz. 13 A @ 120 V, 6.5 A @ 240 V
Power Connector	Powercon Locking Connector
Inputs	Analog Audio & AES: looping XLR (Female In, Male Out) Phoenix 6-Pin (Looping 3-In, 3-Out), CobraNet: Dual RJ45 Connectors (for CAT 5 Cable)
On-Board Controls	Mute Button, Up & Down Output level, 10 dB Input Pad (On Analog 1 Input) Push-To-Reset Circuit Breaker
Computer Controls	Gain, Mute, On/Standby, Input Selection Compression, 8-Band Parametric EQ, Shelving & Rolloff Filters, Delay
Status Indicators	Power, Signal, Overdrive, Thermal, Mute, Input Pad, Failure, Preset Configuiration
Digital Format	16, 20 or 24 Bit PCM; 48 or 96 kHz Sample Rate; Selectable Network Latency
Hardware	Aeroquip Flytrack, R-H Interlocking Flying Hardware, Pole Socket, Handles, Metric M10 Attachment Points.
Enclosure	Finnish Birch, Perforated Steel Grille
Finish	Black Paint
Dimensions (H x W x D)	18.5" (470 mm) x 28.5" (724 mm) x 23" (590 mm)
Weight	160 lbs (73 kg)
