Inside the Design
This premium four-zone restaurant audio system delivers immersive, high-performance sound perfect for background music, social events, or live entertainment. The ten Electro-Voice EVID-C8.2 ceiling speakers fill the dining, bar, and specialty rooms with full-range clarity, while the four compact EVID-C4.2 model speakers discreetly handle the bathrooms and entryways. The two durable, weather-resistant EVID-S5.2X commercial surface-mount speakers extend balanced sound to the patio, maintaining consistent performance indoors and out.
At its core, the AtlasIED AZM4 Atmosphere 4-zone audio processor with advanced DSP and Wi-Fi provides precise control and seamless system integration, powered by the Dynacord V600:4 power amplifier for clean, reliable performance. The Sonos Port adds effortless Wi-Fi streaming for curated background playlists, while the AtlasIED C-T4-B audio wall controller offers intuitive system-wide digital control.
For added versatility, the AtlasIED A-XLR-B input wall plate allows easy connection for DJs, musicians, or special events, while the A-BT-B remote Bluetooth audio input lets users quickly "press to pair" their Bluetooth-enabled devices. Three Atmosphere C-V-B in-wall volume controls enable staff to fine-tune audio levels independently by zone without affecting other areas.
Scalable, flexible, and easy to manage, this professional-grade commercial audio system for restaurants delivers a premium sound experience that enhances the ambiance across your entire venue.
Sound System Features:
- Premium 4-zone restaurant audio system design
- Rich, full-range sound coverage across dining areas, bar, entryway, patio, banquet space, and restrooms featuring Electro-Voice ceiling and outdoor speakers
- Dynacord power amplifier delivers clean, efficient performance
- AtlasIED audio digital signal processor with advanced DSP and Wi-Fi provides flexible control
- Digital wall control panel allows system-wide control and source management
- Sonos Port wireless streaming receiver enables seamless Wi-Fi music playback
- Remote Bluetooth audio input for quick and versatile "press to pair" connections
- XLR input wall plate allows third-party sources to connect quickly and easily
- Wall mount volume controls let staff adjust local sound levels independently without affecting other zones
About the System Components

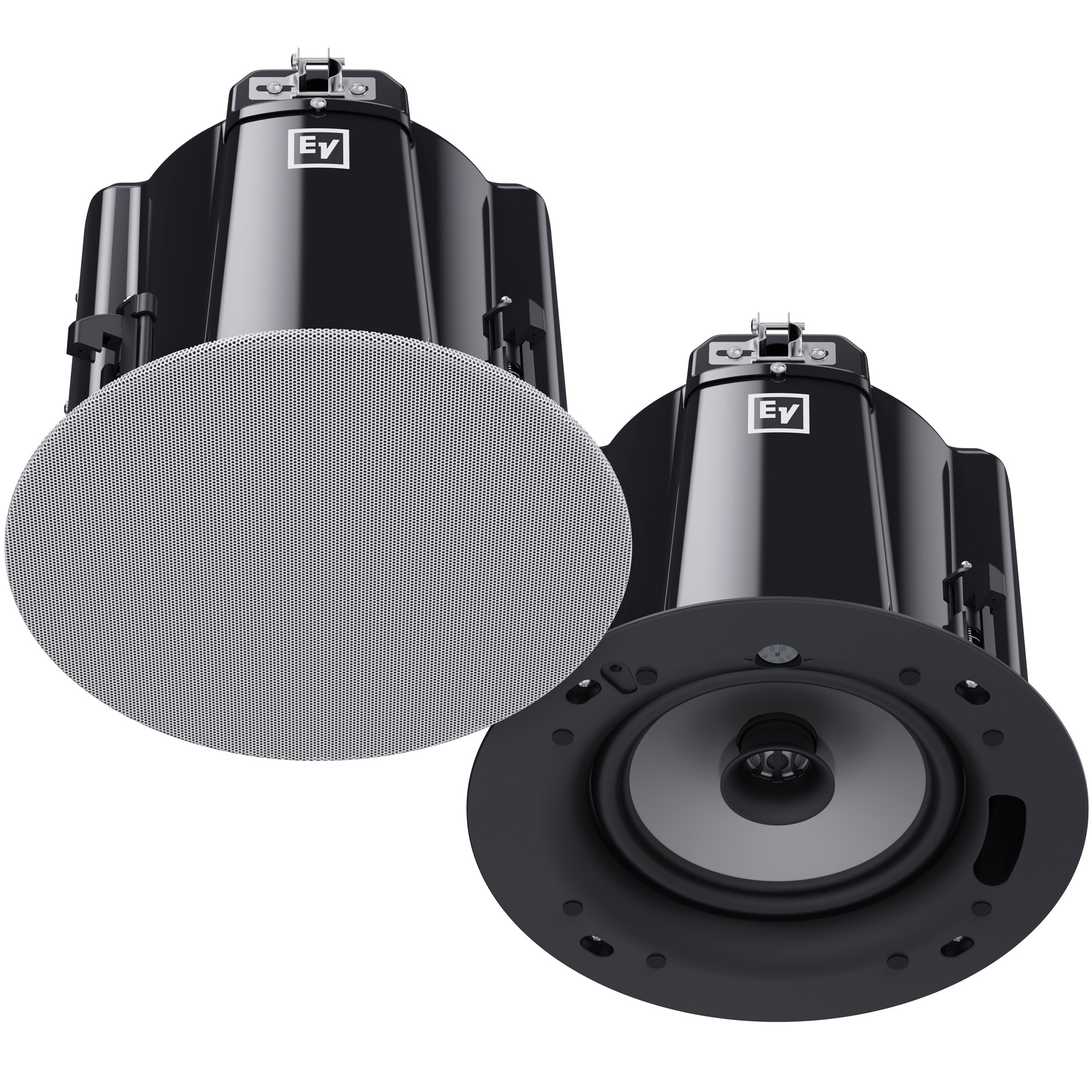

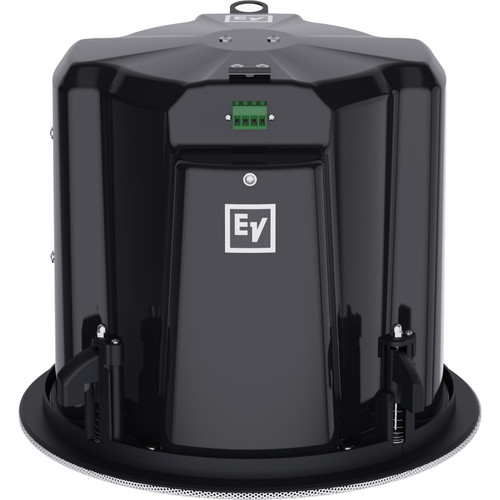

Electro-Voice EVID-C8.2-G2 8" Ceiling Speakers
The Electro-Voice EVID-C8.2-G2 is a premium 8" two-way ceiling speaker designed for high-quality restaurant audio applications. Delivering rich, full-range sound with wide, even coverage, it’s ideal for dining areas, bars, and event spaces. The coaxial point-source design enhances off-axis response for consistent clarity throughout the room, while the integrated line-matching transformer offers selectable 70V/100V taps or 8Ω bypass for flexible system integration. With its low-profile enclosure, sleek white grille, and EZ-Install system, the EVID-C8.2-G2 provides a clean, professional look and quick, secure installation that complements any restaurant interior.

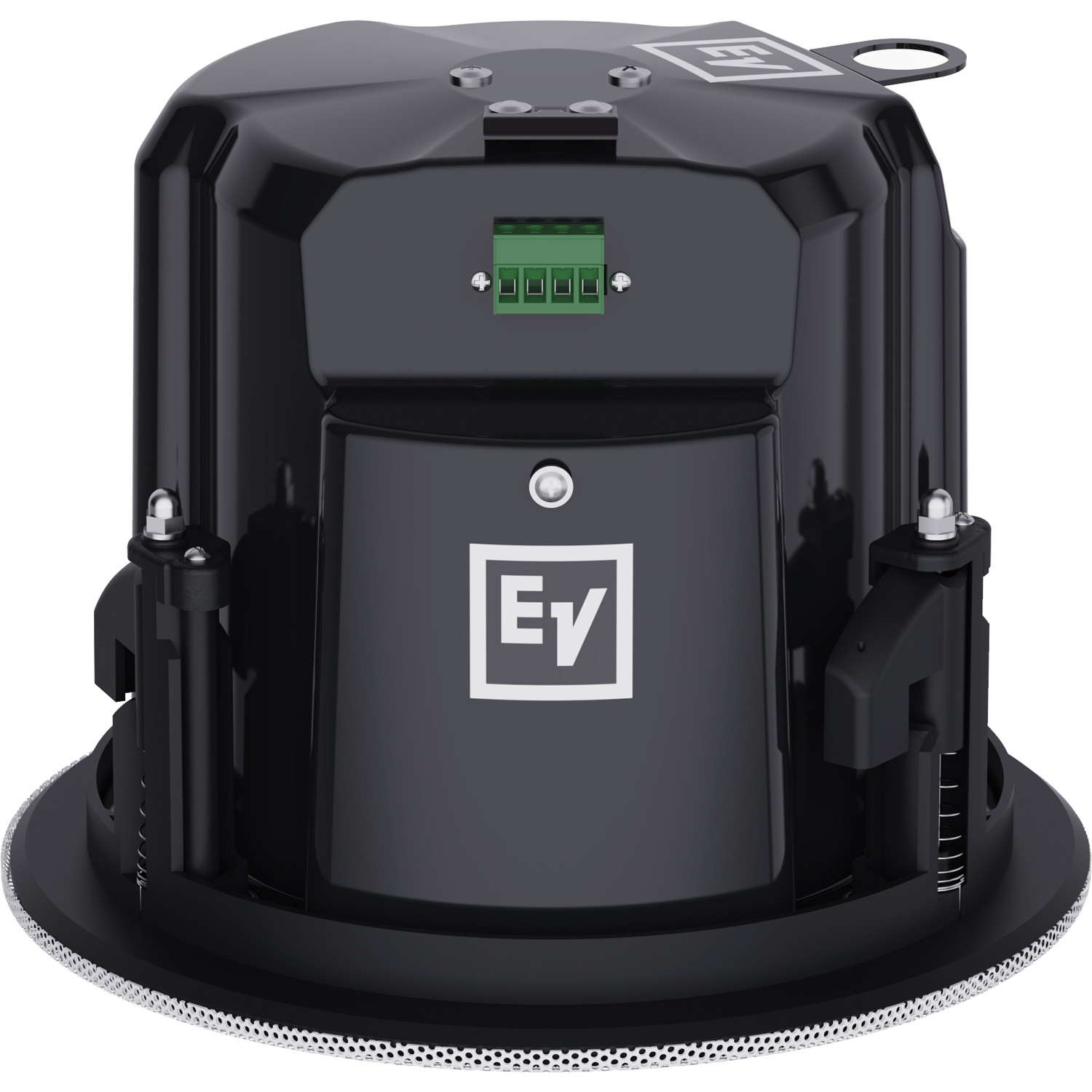

Electro-Voice EVID-C4.2-G2 4" Ceiling Speakers
The Electro-Voice EVID-C4.2-G2 is a compact 4" two-way restaurant ceiling speaker that delivers clear, full-range sound with excellent coverage and reliability. Its coaxial point-source design ensures uniform dispersion and balanced audio throughout smaller areas like entryways, hallways, or restrooms. Built for efficiency and versatility, it includes an integrated line-matching transformer with selectable 70V/100V taps or 8Ω bypass, easily adjustable via a front-panel switch. The EVID-C4.2-G2 combines sleek aesthetics with a low-profile, space-saving design and features the EZ-Install system for quick, secure installation, making it an ideal choice for tight spaces that require professional-grade performance.

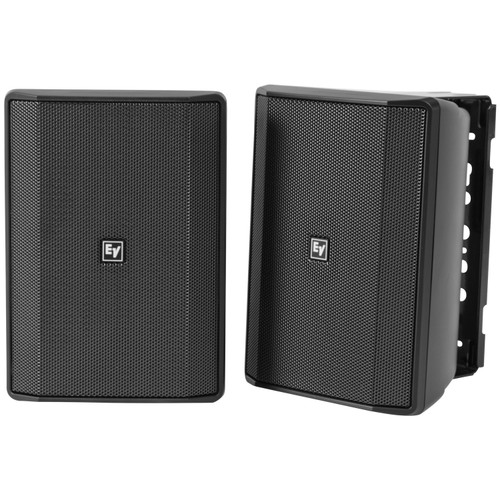

Electro-Voice EVID-S5.2XB 5" Weather-Resistant Commercial Surface Mount Speakers
The Electro-Voice EVID-S5.2X is a high-performance 5.25" two-way surface-mount outdoor patio speaker that delivers rich, full-range sound with wide, even coverage. These IP65-rated outdoor speakers for restaurants are built to withstand sun, salt, moisture, and chlorine, making them ideal for patios and other exposed environments. A versatile U-bracket allows 80° of rotation, while a 60W transformer with multiple 70V/100V taps and 8Ω bypass ensures easy integration.
Dynacord V600:4 4-Channel Power Amplifier
The Dynacord V600:4 is a professional-grade 4-channel, 600W power amplifier designed for reliable performance and versatile commercial audio installations. Housed in a compact 1RU chassis, it delivers high output while conserving rack space, making it ideal for restaurants. Equipped with Dynacord’s advanced technologies, the V600:4 provides low energy consumption, flexible power-load allocation, and trouble-free operation under demanding conditions. Lightweight, easy to handle, and cost-efficient, this restaurant speaker amplifier is perfect for background music, announcements, and multi-zone audio setups.

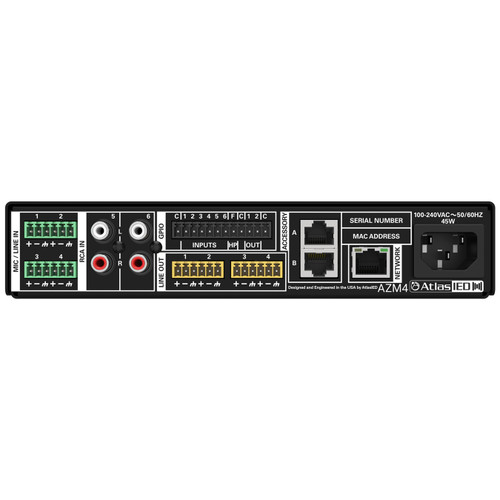

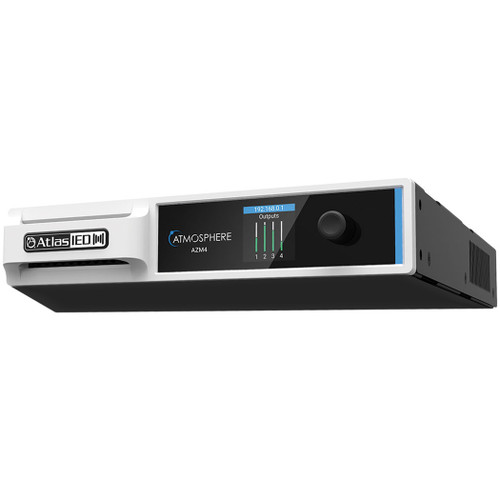

AtlasIED Atmosphere AZM4 4-Zone Audio Processor
The AtlasIED Atmosphere AZM4 is a 4-zone audio digital signal processor with powerful DSP and advanced algorithms for flexible sound management. It features volume control, ambient noise sensing, auto-gain, Tilter Filter, GPIO, scheduling, and a built-in message player. With intuitive web-based control via Ethernet or Wi-Fi, the AZM4 is a smart, scalable signal processor perfect for fine-tuning audio in restaurant speaker setups.
AtlasIED C-T4-B Atmosphere Audio Wall Controller
The Atmosphere C-T4 wall control panel features a 4.3" programmable touchscreen, capacitive volume slider, and customizable buttons, making management of zones, sources, and system actions effortless. Built-in motion sensing enables automation based on room occupancy. Designed for plug-and-play with the Atmosphere AZM4 processor via CAT5e and daisy-chainable up to 1,000 ft, this sleek 2-gang audio wall controller fits standard wall boxes and is ideal for busy restaurant spaces needing flexible control.

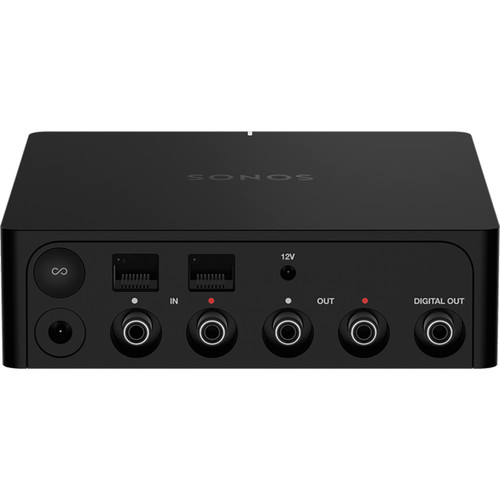

Sonos Port Wireless Streaming Receiver
The Sonos Port enables wireless audio streaming via the Sonos app or Apple AirPlay 2, giving you app-based control over your music content. Use it to stream music throughout the entire restaurant. While the Sonos wifi streaming provides a single-source output, the system also allows integration with additional external audio sources for varied content in separate zones.
AtlasIED A-BT-B Atmosphere Remote Bluetooth Wireless Audio Input
The AtlasIED Atmosphere A-BT is a remote Bluetooth audio input module designed specifically for use with the Atmosphere AZM4 audio processor. This wireless input allows staff or guests in private rooms to easily "press to pair" and stream music from their mobile devices. Once a device is connected, the AZM processor automatically detects the A-BT and applies the appropriate gain, EQ, and processing settings, ensuring reliable, high-quality audio throughout your venue.

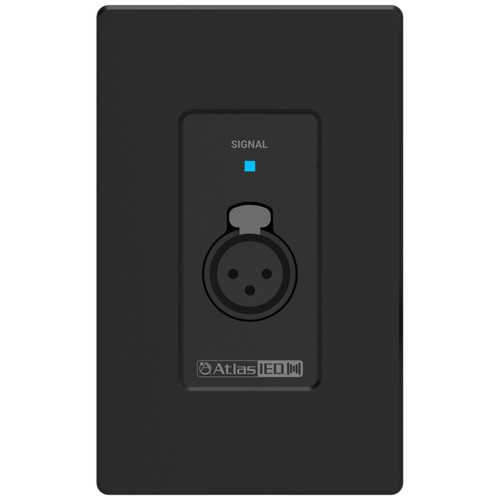

AtlasIED A-XLR-B Atmosphere Remote XLR Audio Input
The AtlasIED Atmosphere A-XLR-B is an XLR input wall plate intended for use with the AZM4 audio processor. The AZM4 automatically detects the A-XLR-B and dynamically applies optimized audio settings, including EQ, dynamics processing, auto gain control, and phantom power. This remote audio input allows DJs, musicians, or trivia hosts to connect microphones or other external audio sources easily without needing direct access to the audio rack.
AtlasIED C-V-B Atmosphere Wall Mount Volume Controls
The AtlasIED C-V-B in-wall volume control provides precise level adjustment, mute control, and metering for a single zone or source, allowing staff to adjust local levels independently without affecting the rest of the venue. This plug-and-play device integrates seamlessly with Atmosphere components, supporting up to eight devices with dependable operation over distances of up to 1,000 feet. With its sleek design and intuitive interface, the C-V-B is the perfect addition to this restaurant audio system design, making it easy for anyone to confidently manage audio levels in busy hospitality environments.
